Open RegionYearModelModelCode Details
General 2010 IS250 300 GSE22L-AETLKV
Catalog: LEXUS202608 Engine: 3000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 212 Trim Code: LA00 Production: 200607-200808 Model Short: GSE22L-AETLKV Region: OTHER Native Region: GR

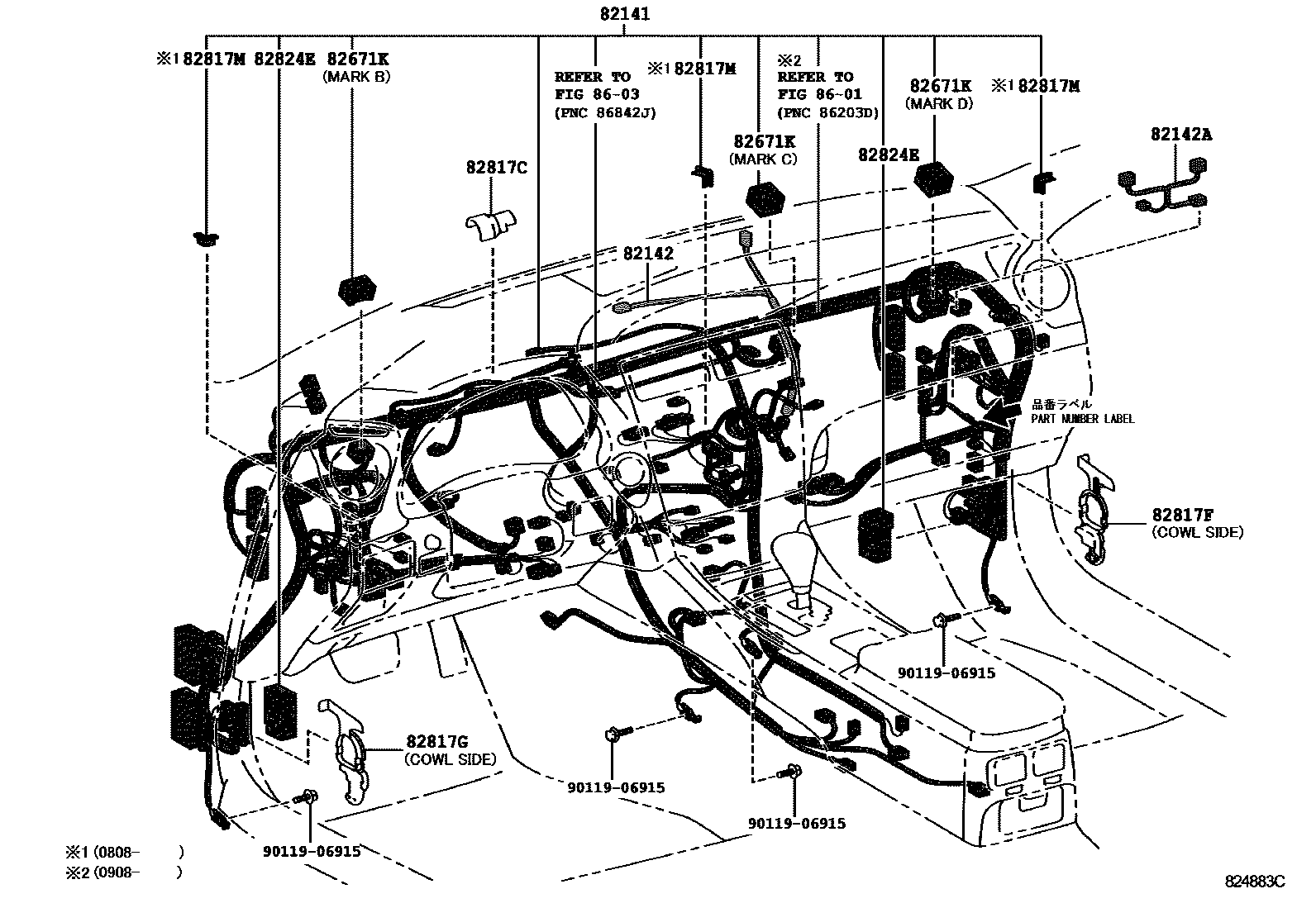

Lexus IS250-300 2010 — Wiring & Clamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82141-53K53 WIRE, INSTRUMENT PANEL 1
Note:GSE22..GCC Production:2010-08 – 2011-08 Spec:AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION
82142-53051 WIRE, INSTRUMENT PANEL, NO.2 1
Note:GSE2#..GCC Production:2010-08 – …
82671-53010 BLOCK, JUNCTION, NO.3 1
Note:GSE2# Production:2010-08 – 2013-04 Spec:MARK B
82671-53020 BLOCK, JUNCTION, NO.3 1
Note:GSE2# Production:2010-08 – 2013-04 Spec:MARK C
82671-53030 BLOCK, JUNCTION, NO.3 1
Note:GSE2# Production:2010-08 – 2013-04 Spec:MARK D
82817-1A761 PROTECTOR, WIRING HARNESS, NO.7 1
Note:GSE2# Production:2010-08 – … Spec:CENTER PILLAR
82817-53240 PROTECTOR, WIRING HARNESS, NO.7 1
Note:GSE2# Production:2010-08 – … Spec:COWL SIDE
82817-1A830 PROTECTOR, WIRING HARNESS, NO.8 1
Note:GSE2# Production:2010-08 – … Spec:CENTER PILLAR
82817-53250 PROTECTOR, WIRING HARNESS, NO.8 1
Note:GSE2# Production:2010-08 – … Spec:COWL SIDE
82824-48080 CONNECTOR, WIRING HARNESS 2
Note:GSE2# Production:2010-08 – 2013-04
82817-33820 PROTECTOR, WIRING HARNESS, NO.4 1
Note:GSE2# Production:2010-08 – …
82817-12860 PROTECTOR, WIRING HARNESS, NO.12 3
Note:GSE2#..GCC Production:2010-08 – 2013-04
82140-53010 WIRE, INSTRUMENT PANEL, NO.2 1
Note:GSE2# Production:2010-08 – 2013-04
90119-06915 standard —

Diagram

14 parts
Lexus IS250-300 2010 — Wiring & Clamp
