Lexus IS250-300 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84113-52020 | BRACKET, SWITCH, NO.2 | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 84610-53060 | SWITCH ASSY, TRANSMISSION SHIFT | 1 | |
Note:GSE2# Production:2010-08 – 2010-12 Spec:SHIFT DOWN | |||
| 84610-53070 | SWITCH ASSY, TRANSMISSION SHIFT | 1 | |
Note:GSE2# Production:2010-08 – 2010-12 Spec:SHIFT UP | |||
| 84523-52020 | WIRE, SWITCH NO.1 | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 84140-48210 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:GSE2#..GCC Production:2010-08 – … | |||
| 84113-52010 | BRACKET, SWITCH, NO.1 | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 84250-53140 | SWITCH ASSY, STEERING PAD | 1 | |
Note:GSE2# Production:2010-08 – 2010-12 Replacements:84250-53141 (fitment: unknown) Spec:EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) | |||
| 89245-52030 | SENSOR, STEERING | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 89235-48010 | SWITCH, TILT & TELESCOPIC | 1 | |
Note:GSE2#..GCC Production:2010-08 – … | |||
| 84652-30552 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:GSE2#..GCC Production:2010-08 – … | |||
| 84306-48030 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:GSE2# Production:2010-08 – … Replacements:84306-48031 (fitment: unknown) | |||
| 90159-50265 | standard | — | |
| 90159-50199 | standard | — | |

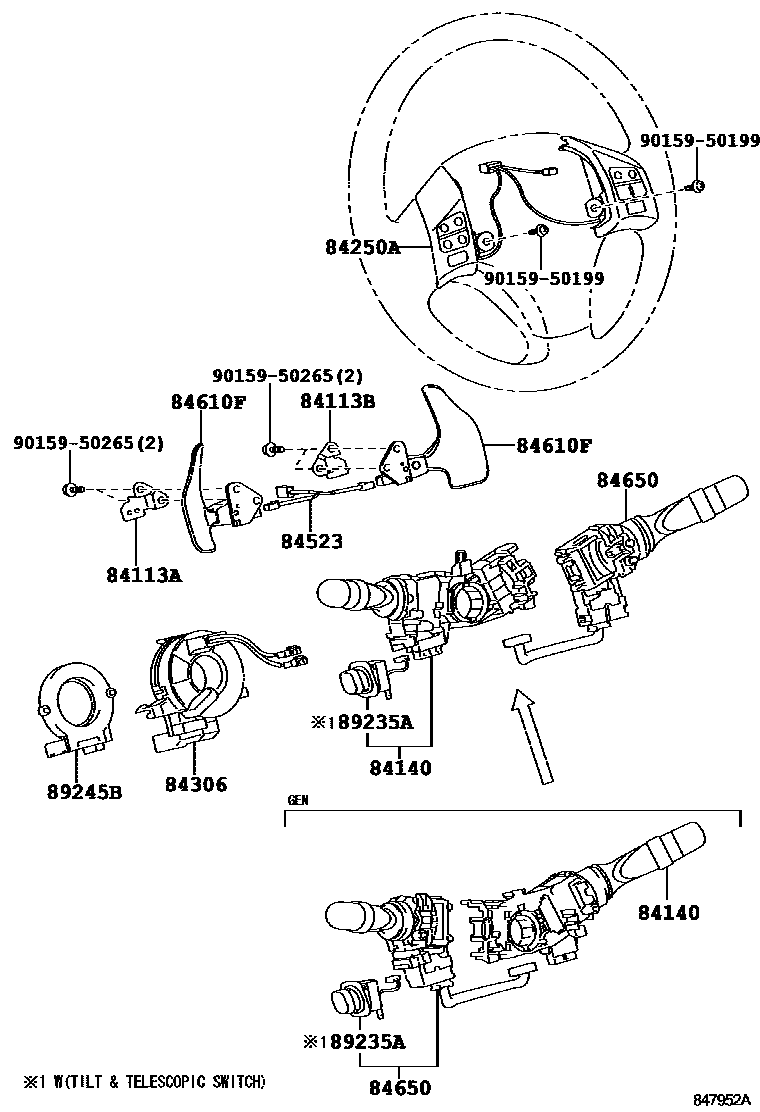

Diagram
13 parts
