Lexus IS250-300 2010 — Headlamp
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 81135-53240 | COVER, HEADLAMP BACK, NO.1 | 2 | |
Note:GSE2# Production:2010-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 81135D | — |
| — | Part does not apply to this vehicle configuration. | 81610F | — |
| — | Part does not apply to this vehicle configuration. | 81615D | — |
| 90981-13046 | BULB(FOR HEADLAMP, NO.1) | 2 | |
Note:GSE2# Production:2010-08 – 2013-04 Spec:12V65W(SAE),60W(ECE) | |||
| — | Part does not apply to this vehicle configuration. | 81110D | — |
| 90981-15021 | BULB (FOR FRONT TURN SIGNAL LAMP) | 2 | |
Note:GSE2# Production:2010-08 – 2013-04 Spec:12V 21W,AMBER | |||
| 81145-53510 | UNIT ASSY, HEADLAMP, RH | 1 | |
Note:GSE2#..GCC Production:2010-08 – 2011-08 | |||
| 81185-53510 | UNIT ASSY, HEADLAMP, LH | 1 | |
Note:GSE2#..GCC Production:2010-08 – 2011-08 | |||
| — | Part does not apply to this vehicle configuration. | 81145F | — |
| 81132-53240 | GASKET, HEADLAMP COVER, NO.1 | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81125-53540 | CORD, HEADLAMP | 2 | |
Note:GSE2# Production:2010-08 – … | |||
| 81193-53020 | RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81194-53010 | RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81195-53010 | RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 81196-53020 | RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 81193A | — |
| — | Part does not apply to this vehicle configuration. | 81194A | — |
| 90159-50311 | standard | — | |
| 90109-06374 | standard | — | |
| 90105-06298 | standard | — | |

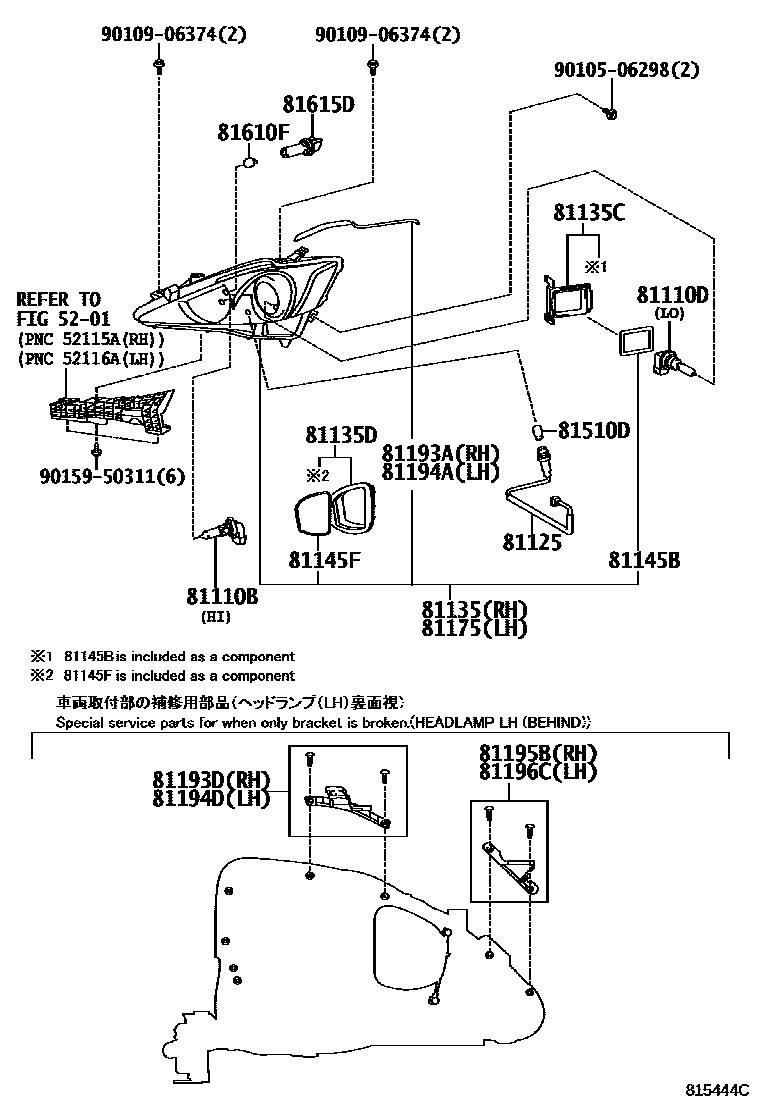

Diagram
14 parts
