Lexus IS250-300 2010 — Hole Plug
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 57016-30040 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | 57016 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57017-30040 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | 57017 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57051-30100 | MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | 57051A | 1 |
Note:GSE2# Production:2010-08 – … Replacements:57051-30101 (fitment: unknown) | |||
| 57052-30100 | MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | 57052A | 1 |
Note:GSE2# Production:2010-08 – … Replacements:57052-30101 (fitment: unknown) | |||
| 57053-30071 | REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH | 57053 | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57054-30071 | REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH | 57054A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57101-30163 | MEMBER SUB-ASSY, FRONT SIDE, RH | 57101 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57102-30143 | MEMBER SUB-ASSY, FRONT SIDE, LH | 57102 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57103-30030 | CROSSMENBER SUB-ASSY, FLOOR, NO.3 | 57103A | 1 |
Note:GSE2#..GCC Production:2010-08 – 2012-05 Replacements:57103-30031 (fitment: unknown) | |||
| 57104-53020 | MEMBER SUB-ASSY, FRONT CROSS | 57104A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57107-53010 | REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | 57107D | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57108-53011 | REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | 57108D | 1 |
Note:GSE2# Production:2010-08 – 2013-04 Replacements:57108-53012 (fitment: unknown) | |||
| 57111-30082 | MEMBER, FRONT SIDE, RH | 57111 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57112-30082 | MEMBER, FRONT SIDE, LH | 57112 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57115-30060 | PLATE, FRONT SIDE MEMBER, OUTER RH | 57115A | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57116-30030 | PLATE, FRONT SIDE MEMBER, OUTER LH | 57116A | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57117-30050 | RETAINER, FRONT BUMPER ARM, RH | 57117E | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57118-30050 | RETAINER, FRONT BUMPER ARM, LH | 57118D | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57305-30010 | REINFORCEMENT, STRUT BAR BRACKET, RH | 57123A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57306-30010 | REINFORCEMENT, STRUT BAR BRACKET, LH | 57124A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57141-30040 | SUPPORT, FRONT BUMPER ARM, RH | 57141A | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57142-30040 | SUPPORT, FRONT BUMPER ARM, LH | 57142A | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57151-30040 | REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | 57151A | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57152-30040 | REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | 57152 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57183-30030 | PLATE, FRONT SIDE MEMBER, NO.4 RH | 57183 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57184-30020 | PLATE, FRONT SIDE MEMBER, NO.4 LH | 57184A | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57197-30040 | BOX, TORQUE, FRONT RH | 57197 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57198-30041 | BOX, TORQUE, FRONT LH | 57198 | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57255-30080 | MEMBER, ENGINE REAR MOUNTING | 57255 | 1 |
Note:GSE22 Production:2010-08 – … | |||
| 57257-30041 | BRACKET, ENGINE REAR MOUNTING MEMBER, RH | 57257A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57258-30091 | BRACKET, ENGINE REAR MOUNTING MEMBER, LH | 57258C | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57401-53020 | MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | 57401 | 1 |
Note:GSE2# Production:2010-08 – 2011-05 Replacements:57401-53021 (fitment: unknown) | |||
| 57402-53020 | MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | 57402 | 1 |
Note:GSE2# Production:2010-08 – 2011-05 Replacements:57402-53021 (fitment: unknown) | |||
| 57430-30011 | MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 | 57403A | 1 |
Note:GSE2# Production:2010-08 – 2012-11 | |||
| 57405-30050 | MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | 57405A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57417-53020 | REINFORCEMENT, FRONT FLOOR UNDER, RH | 57417F | 1 |
Note:GSE2# Production:2010-08 – … Replacements:57417-24040 (fitment: unknown) | |||
| 57417-53020 | REINFORCEMENT, FRONT FLOOR UNDER, LH | 57418B | 1 |
Note:GSE2# Production:2010-08 – … Replacements:57417-24040 (fitment: unknown) | |||
| 57425-30020 | REINFORCEMENT, FRONT FLOOR, NO.2 RH | 57425B | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57426-30020 | REINFORCEMENT, FRONT FLOOR, NO.2 LH | 57426B | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57427-30030 | REINFORCEMENT, FRONT FLOOR, NO.3 RH | 57427D | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57427-30030 | REINFORCEMENT, FRONT FLOOR, NO.3 LH | 57428C | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57407-30151 | MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | 57461B | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57508-30020 | REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH | 57463B | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57509-30020 | REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | 57464A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57497-53030 | SHIELD, REAR FLOOR HOUSING | 57497A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57498-53030 | SHIELD, REAR FLOOR HOUSING, NO.2 | 57498A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57533-30050 | BRACE, FRONT FLOOR, CENTER | 57533 | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57601-30917 | MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | 57601 | 1 |
Note:GSE2# Production:2010-08 – 2012-08 Replacements:57601-30922 (fitment: unknown) | |||
| 57602-30928 | MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | 57602 | 1 |
Note:GSE2# Production:2010-08 – 2012-08 Replacements:57602-30934 (fitment: unknown) | |||
| 57607-53020 | MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | 57607A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57608-53030 | MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | 57608A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57652-53020 | MEMBER, REAR FLOOR CROSS, NO.1 | 57652C | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57606-30061 | MEMBER, REAR FLOOR CROSS, NO.2 | 57653D | 1 |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 57695-53030 | EXTENSION, REAR FLOOR CROSS REAR SIDE, RH | 57695 | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57696-53020 | EXTENSION, REAR FLOOR CROSS REAR SIDE, LH | 57696 | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57803-53030 | REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | 57803A | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57804-53030 | REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | 57804 | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57805-30060 | REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | 57805E | 1 |
Note:GSE2# Production:2010-08 – … | |||
| 57806-30050 | REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | 57806B | 1 |
Note:GSE2# Production:2010-08 – … | |||

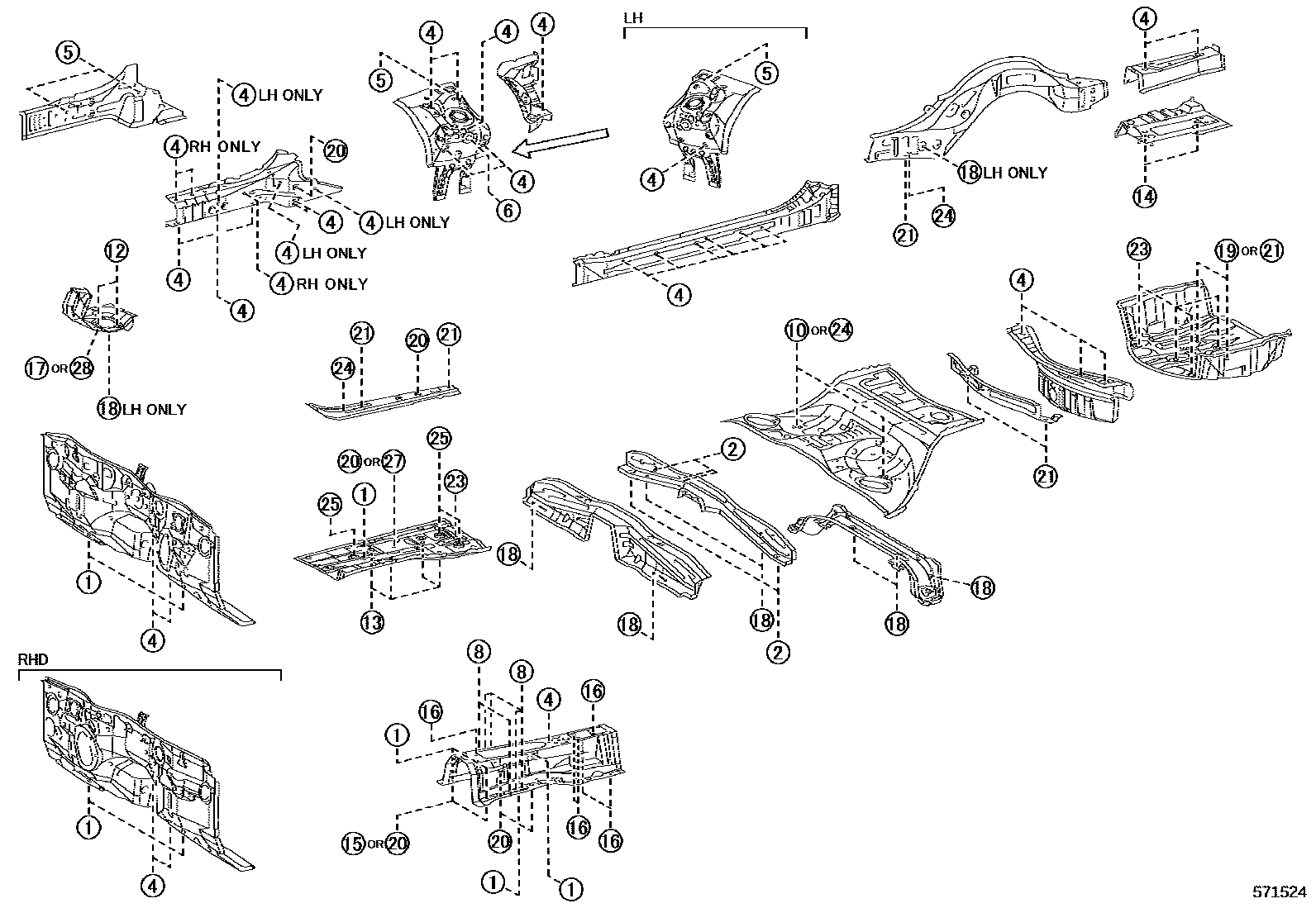

Diagram
59 parts
