Open RegionYearModelModelCode Details
General 2010 IS250 300 GSE22L-AETLKV
Catalog: LEXUS202608 Engine: 3000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 212 Trim Code: LA00 Production: 200607-200808 Model Short: GSE22L-AETLKV Region: OTHER Native Region: GR

Lexus IS250-300 2010 — Front Door Panel & Glass

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
68171-53020 WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 1
Note:GSE2# Production:2010-08 – … Rev.ref.no From:0017 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
67610-53561-A2 BOARD SUB-ASSY, FRONT DOOR TRIM, RH 1
Note:GSE2#..GCC Production:2010-08 – 2012-08 Replacements:67610-53562-A0 (fitment: unknown) Spec:ECRU,TRIM0# Rev.ref.no From:0017 Rev.ref.no To:0056 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
67771-32120 RETAINER(FOR FRONT DOOR TRIM BOARD) 4
Note:GSE2# Production:2010-08 – … Rev.ref.no From:0017 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
90467-09203 CLIP(FOR FRONT DOOR TRIM BOARD) 14
Note:GSE2# Production:2010-08 – … Rev.ref.no From:0017 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
67731-53020 SPACER, SIDE TRIM, NO.1 2
Note:GSE2# Production:2010-08 – … Rev.ref.no From:0017 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
67711-53010-A1 COVER, FRONT DOOR TRIM, RH 1
Note:GSE2#..GCC Production:2010-08 – 2013-04 Spec:ECRU,TRIM0# Rev.ref.no From:0017 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
67712-53010-A1 COVER, FRONT DOOR TRIM, LH 1
Note:GSE2#..GCC Production:2010-08 – 2013-04 Spec:ECRU,TRIM0# Rev.ref.no From:0017 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
67620-53580-A7 BOARD SUB-ASSY, FRONT DOOR TRIM, LH 1
Note:GSE2#..GCC Production:2010-08 – 2012-08 Replacements:67620-53581-A0 (fitment: unknown) Spec:ECRU,TRIM0# Rev.ref.no From:0017 Rev.ref.no To:0056 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
68172-53020 WEATHERSTRIP, FRONT DOOR GLASS, INNER LH 1
Note:GSE2# Production:2010-08 – … Rev.ref.no From:0017 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
67923-24030 CUSHION, FRONT DOOR STIFFENER, NO.1 2
Note:GSE2# Production:2010-08 – 2011-11 Rev.ref.no From:0017 Serial Ranges:Other: From 5001194 · GSE22 · · 00170030
90159-60200 standard —
90467-09206 standard —
67771-30110 standard —
67771-32120 standard —
90189-04200 standard —

Diagram

15 parts

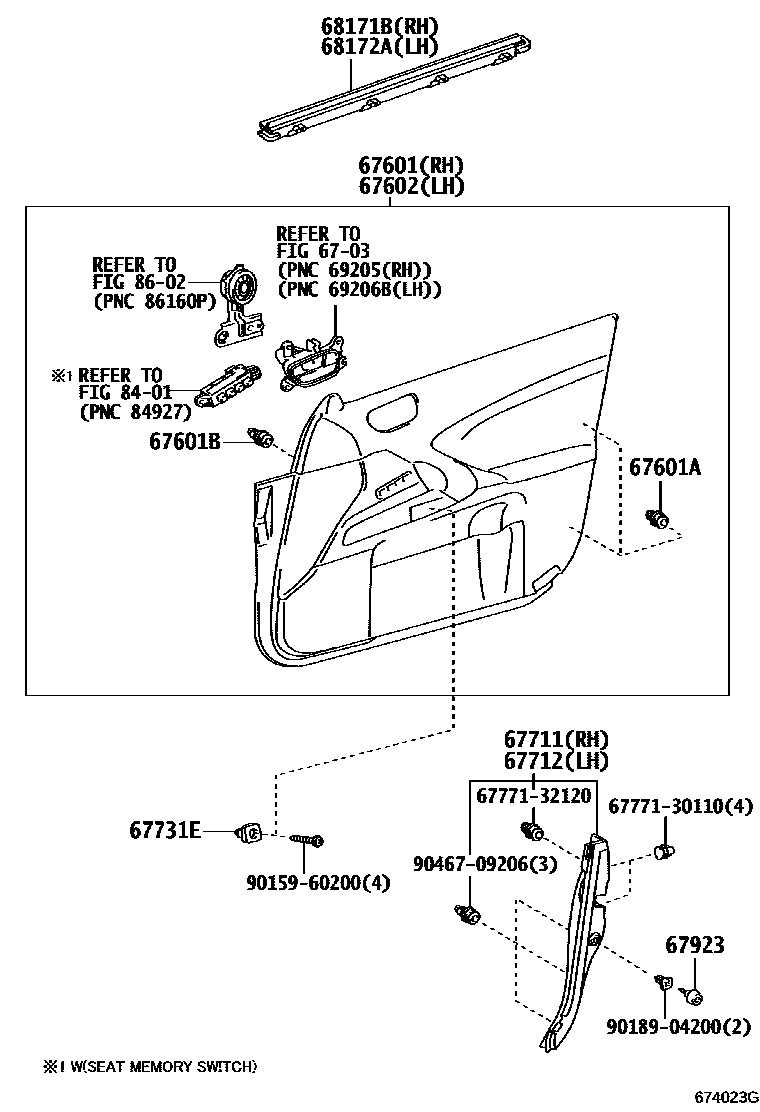

Lexus IS250-300 2010 — Front Door Panel & Glass
