Lexus IS2-3 2015 — Radiator Grille
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 53112-53061 | GRILLE, RADIATOR, INSIDE | 1 | |
Note:AVE30,GSE3# Production:2013-05 – 2015-08 Spec:F SPORT | |||
| 53115-53010 | BRACKET, RADIATOR GRILLE | 1 | |
Note:AVE30,GSE3# Production:2013-04 – 2015-08 | |||
| 52711-53061 | MOULDING, RADIATOR GRILLE | 1 | |
Note:AVE30,GSE3# Production:2013-05 – 2015-08 Spec:F SPORT | |||
| 53119-53060 | PROTECTOR, RADIATOR GRILLE | 1 | |
Note:AVE30,GSE3# Production:2013-04 – 2015-08 | |||
| 53145-60030 | CLIP, RADIATOR GRILLE | 15 | |
Note:AVE30,GSE3# Production:2013-04 – 2015-08 | |||
| 52112-53060 | GRILLE, RADIATOR, LOWER | 1 | |
Note:AVE30,GSE3#..ARL,CHI,GEN Production:2013-04 – 2015-08 Spec:F SPORT | |||
| 89348-35010 | RETAINER, ULTRASONIC SENSOR, FRONT CENTER | 2 | |
Note:AVE30,GSE3# Production:2013-04 – 2015-08 Spec:CLEARANCE & BACK SONAR-WITH | |||
| 52102-53030 | EXTENSION SUB-ASSY, FRONT BUMPER | 1 | |
Note:AVE30,GSE3#..ARL,CHI,GEN Production:2013-04 – 2015-08 | |||
| — | Part does not apply to this vehicle configuration. | 53128A | — |
| — | Part does not apply to this vehicle configuration. | 53127A | — |
| 53126-53021 | MOULDING, RADIATOR GRILLE, CENTER LH | 1 | |
Note:AVE30,GSE3#..ARL,GEN Production:2013-04 – 2015-08 Spec:F SPORT | |||
| 53125-53031 | MOULDING, RADIATOR GRILLE, CENTER RH | 1 | |
Note:AVE30,GSE3#..ARL,GEN Production:2013-04 – 2015-08 Spec:F SPORT | |||
| 52114-53280 | BRACKET, FRONT BUMPER EXTENSION MOUNTING | 1 | |
Note:AVE30,GSE3#..ARL,GEN Production:2013-04 – 2015-08 Spec:F SPORT | |||
| 90119-06782 | standard | — | |
| 9046705063C0 | standard | — | |
| 90167-50063 | standard | — | |
| 90179-06127 | standard | — | |
| 90159-60431 | standard | — | |

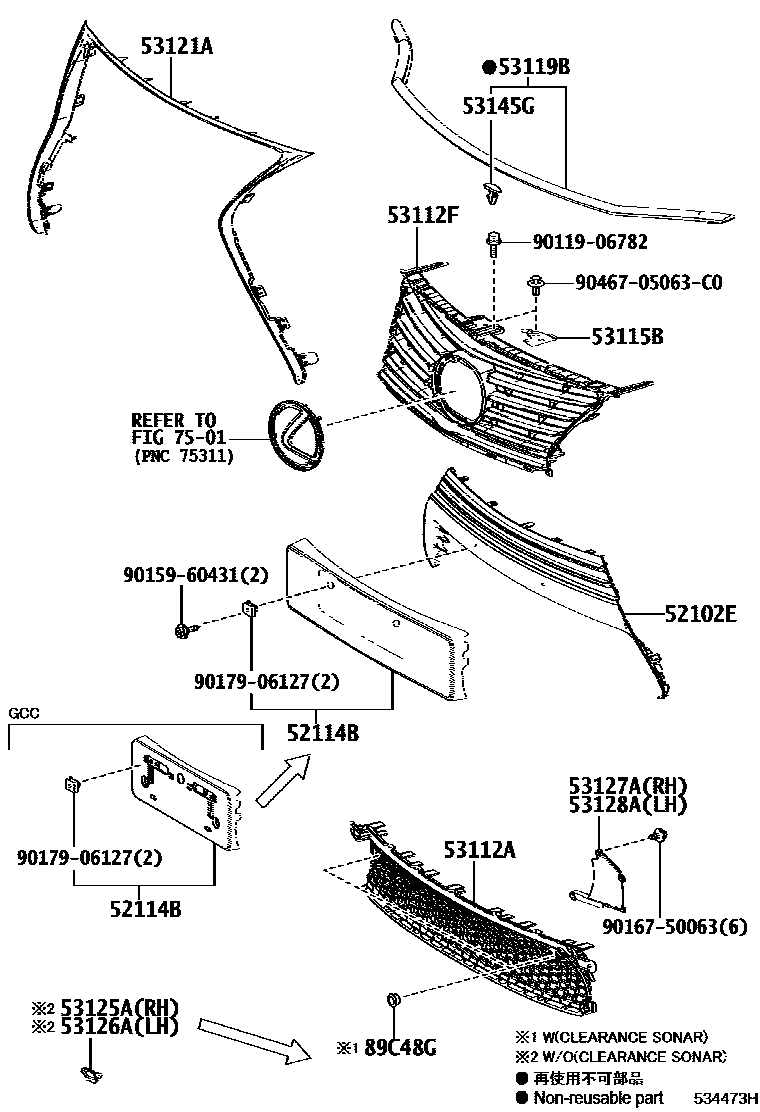

Diagram
16 parts
