Lexus ES350-300H-2 2022 — Wiring & Clamp
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82090-33030 | WIRE ASSY, EXTENSION | 1 | |
Note:AXZH10..ARL,CHI,EUR,GEN,IND Production:2021-08 – … | |||
| 82817-2A790 | PROTECTOR, WIRING HARNESS, NO.1 | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – … | |||
| 821H2-33020 | WIRE, HV AIR CONDITIONER | 1 | |
Note:AXZH10 Production:2021-08 – … | |||
| 82111-3YC70 | WIRE, ENGINE ROOM MAIN | 1 | |
Note:AXZH10..LHD..EUR Production:2022-08 – 2024-02 Spec:ULTRA LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & *RIF & ASPHERICAL&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) Rev.ref.no From:0073 Rev.ref.no To:0092 Serial Ranges:Other: From 2182467 · AXZH10 · · 00730030 Serial Ranges:Other: From 2604417 · AXZH10 · · 00730040 | |||
| 82815-33K50 | COVER, WIRING HARNESS PROTECTOR | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN,IND;AXZA10,GSZ10,MXZA10..EUR,GCC Production:2021-08 – … | |||
| 82817-33Y30 | PROTECTOR, WIRING HARNESS, NO.5 | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN,IND;AXZA10,GSZ10,MXZA10..EUR,GCC Production:2021-08 – … | |||
| 82817-33Y20 | PROTECTOR, WIRING HARNESS, NO.2 | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – … | |||
| 82817-3T500 | PROTECTOR, WIRING HARNESS, NO.6 | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN,IND Production:2021-08 – … | |||
| 82815-33E70 | COVER, WIRING HARNESS PROTECTOR | 1 | |
Note:AXZH10..LHD..(EUR,GCC) Production:2021-08 – … | |||
| 82817-33T30 | PROTECTOR, WIRING HARNESS, NO.14 | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – … | |||
| 82815-33Q00 | COVER, WIRING HARNESS PROTECTOR NO.5 | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN,IND Production:2021-08 – … | |||
| G921D-47020 | PROTECTOR, INVERTER CONNECTOR COVER | 1 | |
Note:AXZH10 Production:2021-08 – … | |||
| 82817-33V00 | PROTECTOR, WIRING HARNESS, NO.4 | 1 | |
Note:AXZH10..LHD..(EUR,GCC) Production:2021-08 – … | |||
| 82815-33Q10 | COVER, WIRING HARNESS PROTECTOR NO.6 | 1 | |
Note:AXZH10..LHD..(EUR,GCC) Production:2021-08 – … | |||
| 82817-33U80 | PROTECTOR, WIRING HARNESS, NO.3 | 1 | |
Note:AXZH10..LHD..(EUR,GCC) Production:2021-08 – … | |||
| 82114-33130 | WIRE, ENGINE ROOM, NO.4 | 1 | |
Note:MXZA10..CHI;AXZH10..CHI,EUR Production:2021-08 – 2024-02 | |||
| — | Part does not apply to this vehicle configuration. | 82119C | — |
| — | Part does not apply to this vehicle configuration. | 82824 | — |
| 82821-30700 | COVER, CONNECTOR | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – … | |||
| 90119-06A24 | standard | — | |
| 91671-80620 | standard | — | |
| 90119-06A18 | standard | — | |
| 91671-80820 | standard | — | |
| 90119-06A07 | standard | — | |
| 91673-80620 | standard | — | |

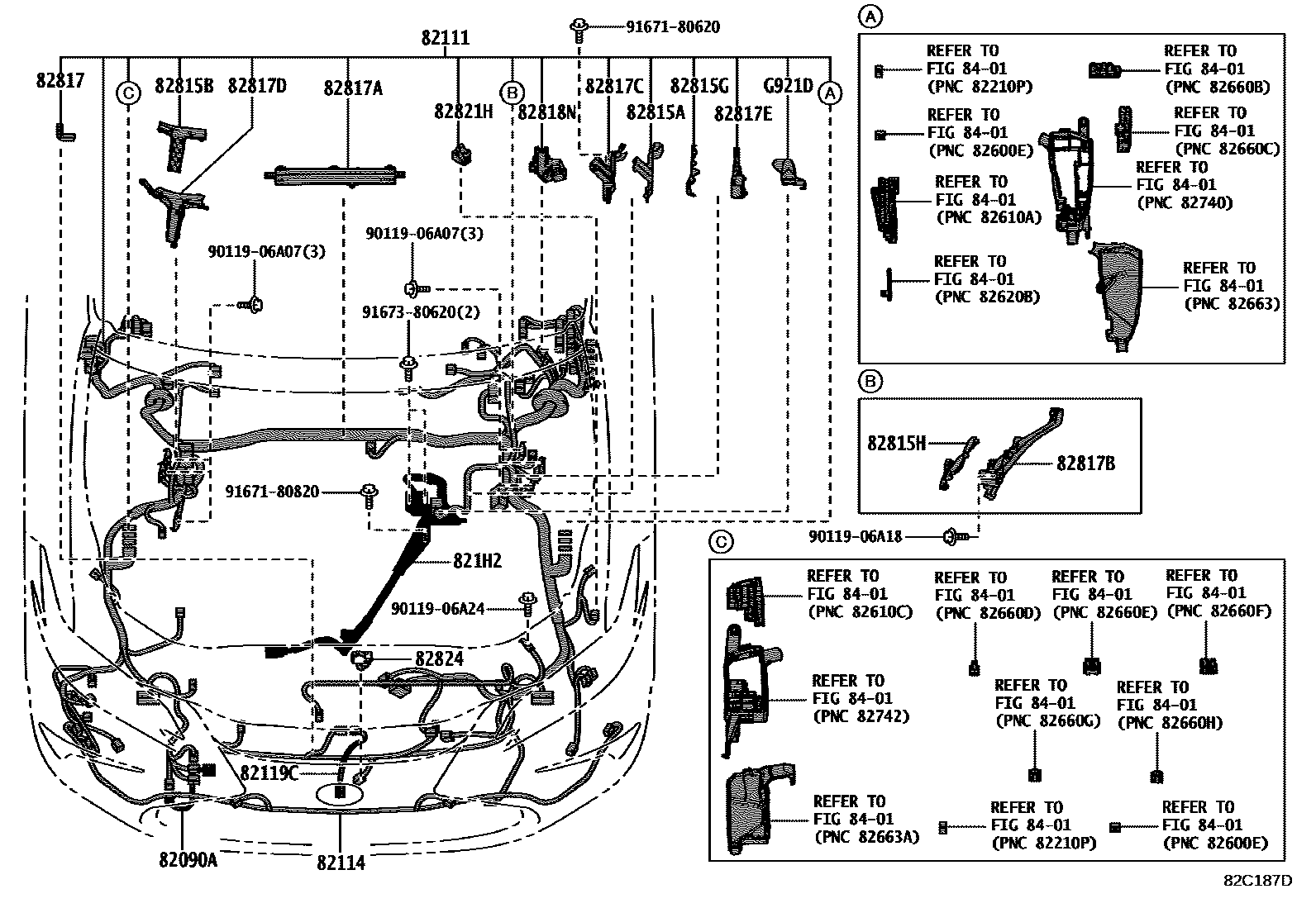

Diagram
23 parts
