Lexus ES350-300H-2 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89220-3TK80 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:AXZH10..LHD..EUR Production:2022-08 – 2024-02 Rev.ref.no From:0073 Rev.ref.no To:0092 Serial Ranges:Other: From 0003016 · AXZH10 · · 00730030 Serial Ranges:Other: From 2182467 · AXZH10 · · 00730040 Serial Ranges:Other: From 2604417 · AXZH10 · · 00730050 | |||
| — | Part does not apply to this vehicle configuration. | 89730A | — |
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-08 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-08 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-08 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-08 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-08 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-08 – … Spec:25A,MINI FUSE | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-08 – … Spec:30A,FEMALE,PNK,32V | |||
| 90987-02027 | RELAY, POWER OUTLET SOCKET | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 90987-02027 | RELAY, SEAT HEATER | 1 | |
Note:MXZA10..CHI;AXZH10..CHI,EUR Production:2021-08 – 2024-02 | |||
| 90987-02031 | RELAY, IGCT | 1 | |
Note:AXZH10 Production:2021-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 84270Q | — |
| 90987-02027 | RELAY, REAR SEAT HEATER | 2 | |
Note:AXZH10..ARL,EUR,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR Production:2021-08 – 2025-12 Spec:ULTRA LUXURY PACKAGE | |||
| 82666-33740 | HOLDER, CONNECTOR, NO.2 | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 82610-0E020 | BLOCK ASSY, FUSE | 2 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 82663-33150 | COVER, RELAY BLOCK, LOWER, NO.3 | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 89227-48070 | COMPUTER, MULTIPLEX TILT & TELESCOPIC | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN;AXZA10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 85970-33020 | RELAY ASSY, DOUBLE LOCK DOOR CONTROL | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR Production:2021-08 – 2025-12 | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 84340-19095 | SWITCH ASSY, STOP LAMP | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 89121-30020 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 895A0-30010 | COMPUTER ASSY, STOP LAMP CONTROL | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 82877-33030 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:MXZA10..CHI;AXZH10..LHD..(CHI,EUR) Production:2021-08 – 2024-02 | |||
| 82660-28350 | BLOCK ASSY, RELAY | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 69065-12460 | CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR Production:2021-08 – 2025-12 | |||
| 89111-76070 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:AXZH10..CHI,EUR Production:2022-08 – 2024-02 | |||
| 82672-33390 | COVER, JUNCTION BLOCK | 1 | |
Note:MXZA10..CHI;AXZH10..CHI,EUR Production:2021-08 – 2024-02 | |||
| — | Part does not apply to this vehicle configuration. | 82672K | — |
| — | Part does not apply to this vehicle configuration. | 82730G | — |
| 82730-33Q30 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:MXZA10..CHI;AXZH10..CHI,EUR Production:2021-08 – 2024-02 | |||
| 82715-33T30 | BRACKET,WIRING HARNESS CLAMP | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN;AXZA10,MXZA10..ARL,EUR,GEN Production:2021-08 – 2025-12 | |||
| 82673-33150 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:MXZA10..CHI;AXZH10..CHI,EUR Production:2021-08 – 2024-02 | |||
| 82673-33120 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:MXZA10..CHI;AXZH10..CHI,EUR Production:2021-08 – 2024-02 | |||
| — | Part does not apply to this vehicle configuration. | 8598A | — |
| 82660-33130 | BLOCK ASSY, RELAY | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 | |||
| 82663-33290 | COVER, RELAY BLOCK LOWER, NO.4 | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 | |||
| 82660-48020 | BLOCK ASSY, RELAY | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 82660-48040 | BLOCK ASSY, RELAY | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 82660-48030 | BLOCK ASSY, RELAY | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| — | Part does not apply to this vehicle configuration. | 867G0 | — |
| — | Part does not apply to this vehicle configuration. | 85965 | — |
| 90179-06274 | standard | — | |
| 90119-06A21 | standard | — | |
| 90183-06032 | standard | — | |
| 91673-80616 | standard | — | |
| 91673-80620 | standard | — | |

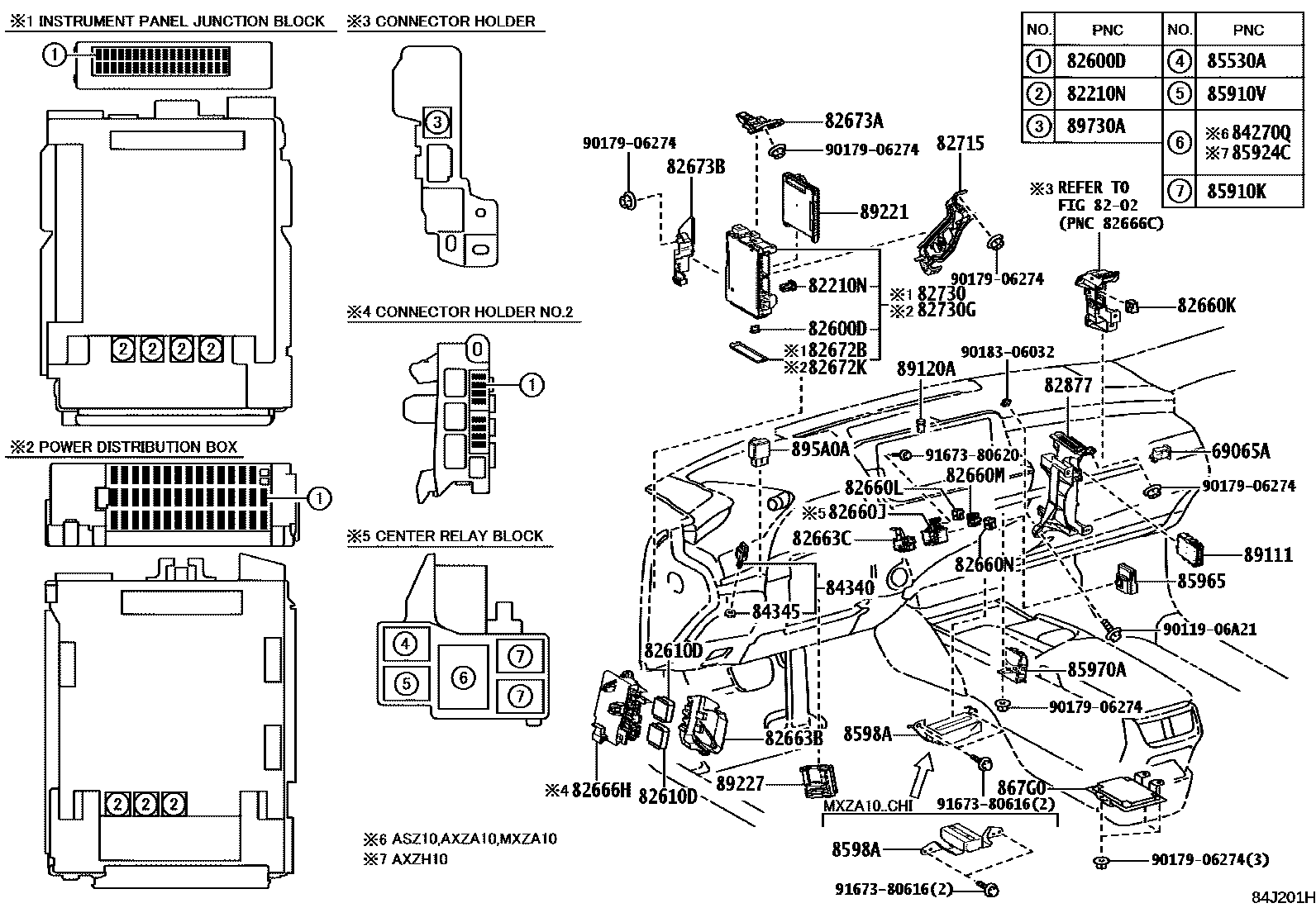

Diagram
40 parts
