Open RegionYearModelModelCode Details
Europe 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: EU Native Region: EU

Lexus ES350-300H-2 2022 — Headlamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
81195-33070 RETAINER, HEADLAMP PROTECTOR, LOWER RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81196-33070 RETAINER, HEADLAMP PROTECTOR, LOWER LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81193-33120 RETAINER, HEADLAMP PROTECTOR, UPPER RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81194-33120 RETAINER, HEADLAMP PROTECTOR, UPPER LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81193-33130 RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81194-33130 RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90981-15021 BULB (FOR FRONT TURN SIGNAL LAMP) 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:12V 21W,AMBER
90075-23003 GASKET, HEADLAMP 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
8110A-33L30 LENS SUB-ASSY, HEADLAMP, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
8110B-33L30 LENS SUB-ASSY, HEADLAMP, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
8112A-33L50 UNIT, HEADLAMP CLEARANCE LED, NO.1 RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
8116A-33L50 UNIT, HEADLAMP CLEARANCE LED, NO.1 LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81118-33J00 BRACKET, HEADLAMP, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81158-33J00 BRACKET, HEADLAMP, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81125-33F10 CORD, HEADLAMP, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81165-33F10 CORD, HEADLAMP, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81130-33L30 UNIT ASSY, HEADLAMP LED, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD Production:2021-08 – 2023-05 Replacements:81130-33L31 (fitment: unknown) Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81170-33L30 UNIT ASSY, HEADLAMP LED, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD Production:2021-08 – 2023-05 Replacements:81170-33L31 (fitment: unknown) Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
85661-48060 MOTOR, HEADLAMP LEVELING, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
53395-33050 SEAL, HEADLAMP, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
53396-33050 SEAL, HEADLAMP, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81177-33J00 RIM, HEADLAMP FITTING, LH NO.2 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81279-24010 SCREW, HEADLAMP 12
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81101-33120 HOUSING SUB-ASSY, HEADLAMP, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81102-33120 HOUSING SUB-ASSY, HEADLAMP, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
8111A-33L50 UNIT, HEADLAMP CORNERING LED, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
8115A-33L50 UNIT, HEADLAMP CORNERING LED, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81016-33L50 COMPUTER SUB-ASSY, HEADLAMP, RH 1
Note:MXZA10..CHI;AXZH10..CHI,EUR Production:2021-08 – 2024-02 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81056-33L50 COMPUTER SUB-ASSY, HEADLAMP, LH 1
Note:AXZH10..EUR Production:2021-08 – 2024-02 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81145-33L30 UNIT ASSY, HEADLAMP, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2023-05 Replacements:81145-33L31 (fitment: unknown) Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81185-33L30 UNIT ASSY, HEADLAMP, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2023-05 Replacements:81185-33L31 (fitment: unknown) Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
85691-48010 MOTOR, HEADLAMP LEVELING, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS)
81136-33J00 RIM, HEADLAMP, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81176-33J00 RIM, HEADLAMP, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81137-33J00 RIM, HEADLAMP FITTING, RH NO.2 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
81132-48C30 GASKET, HEADLAMP LENS 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90109-06388 standard —
90159-60621 standard —
90189-06238 standard —
90075-02056 standard —
90075-02060 standard —
90075-01017 standard —
90075-02052 standard —
90075-02051 standard —

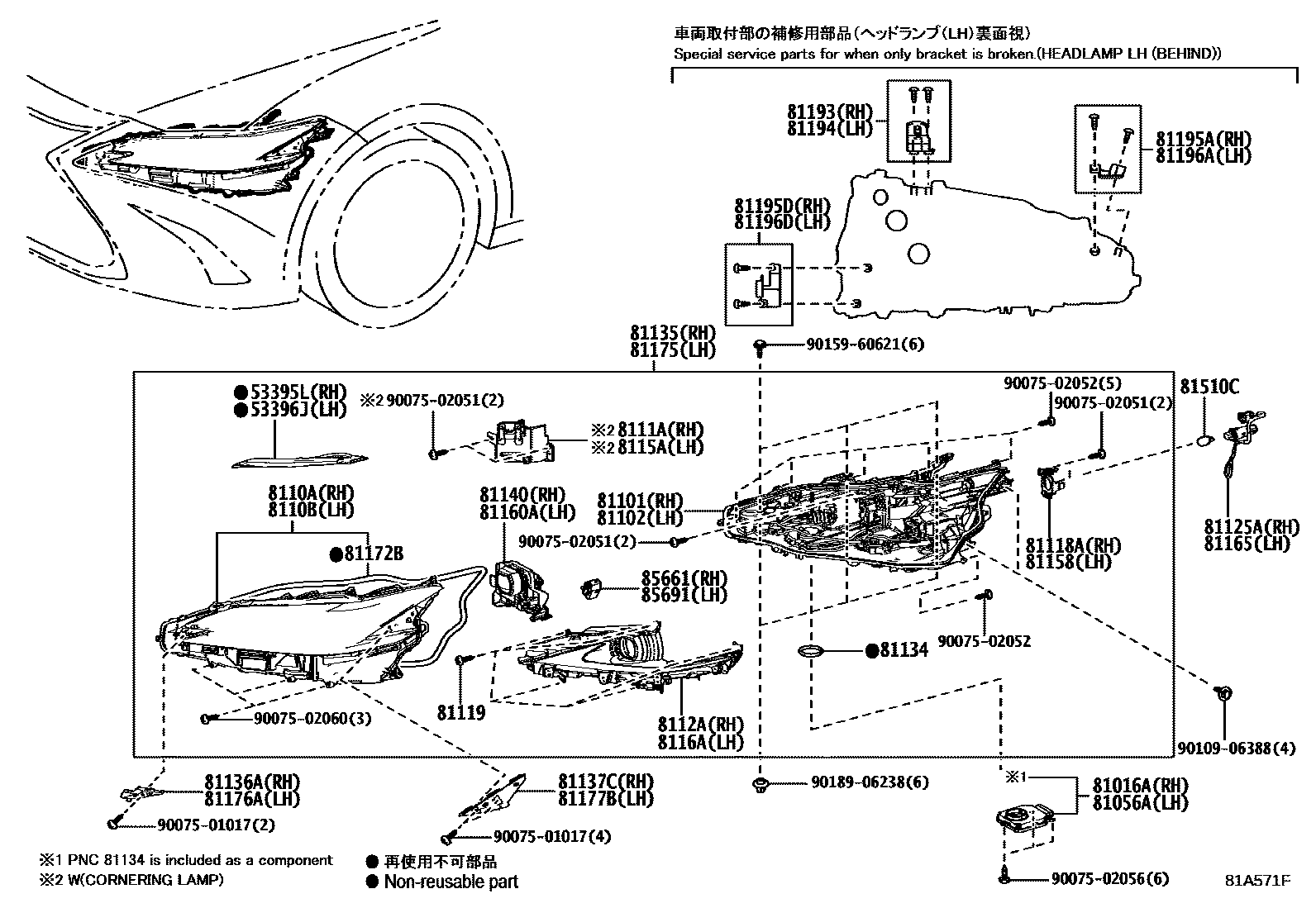

Diagram

44 parts
Lexus ES350-300H-2 2022 — Headlamp
