General 2021 ES350 300H 2 AXZH10L-AEXGBC
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 1J7 Trim Code: LA50 Production: 201807-202108 Model Short: AXZH10L-AEXGBC Region: OTHER Native Region: GR

Lexus ES350-300H-2 2021 — Windshield Washer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85319-33230 PACKING, FRONT WASHER 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2018-06 – 2021-08
85397-52100 SWITCH ASSY,LEVEL WARNING 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2018-06 – 2021-08
85330-33070 MOTOR AND PUMP ASSY, WINDSHIELD WASHER 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2018-06 – 2021-08
85371-12040 CLAMP 4
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
85381-30220 NOZZLE SUB-ASSY, WASHER 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Replacements:85381-0K070 (fitment: unknown) Spec:ANGLE 0
85381-30230 NOZZLE SUB-ASSY, WASHER 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Replacements:85381-0K080 (fitment: unknown) Spec:ANGLE -2
85381-30240 NOZZLE SUB-ASSY, WASHER 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:ANGLE +2
85355-20200 JOINT, WINDSHIELD WASHER ELBOW, NO.1 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
85373-33030 JOINT, WINDSHIELD WASHER ELBOW, NO.2 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
85321-28020 VALVE, WINDSHIELD WASHER HOSE 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:L=1450(*H,L=280)
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:L=1450(*H,L=410)
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:L=1450(*H,L=580)
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:L=1450(*H,L=510)
90467-07214 CLIP, WASHER 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
85336-30160 PACKING, WINDSHIELD WASHER INLET HOSE 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2018-06 – 2021-08
90099-32089 BUSH, WINDSHIELD WASHER JAR 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2018-06 – 2021-08
85315-33520 JAR ASSY, WINDSHIELD WASHER 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2018-06 – 2021-08
85319-33600 INLET SUB-ASSY, WASHER 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2018-06 – 2021-07 Spec:MARK=E11 001671
85329-33521 INLET SUB-ASSY, WASHER 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2020-11 – 2021-08 Spec:MARK=E13 000129
85319-33601 INLET SUB-ASSY, WASHER 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2021-07 – 2021-08 Spec:MARK=E13 000124
85316-33521 CAP, WINDSHIELD WASHER JAR 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2020-11 – 2021-08 Spec:MARK=E13 000129
85316-33591 CAP, WINDSHIELD WASHER JAR 1
Note:AXZH10..ARL,CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 Production:2021-07 – 2021-08 Spec:MARK=E13 000124
90119-06767 standard —
82711-1E340 standard —
82711-2C160 standard —
85387-33440 standard —

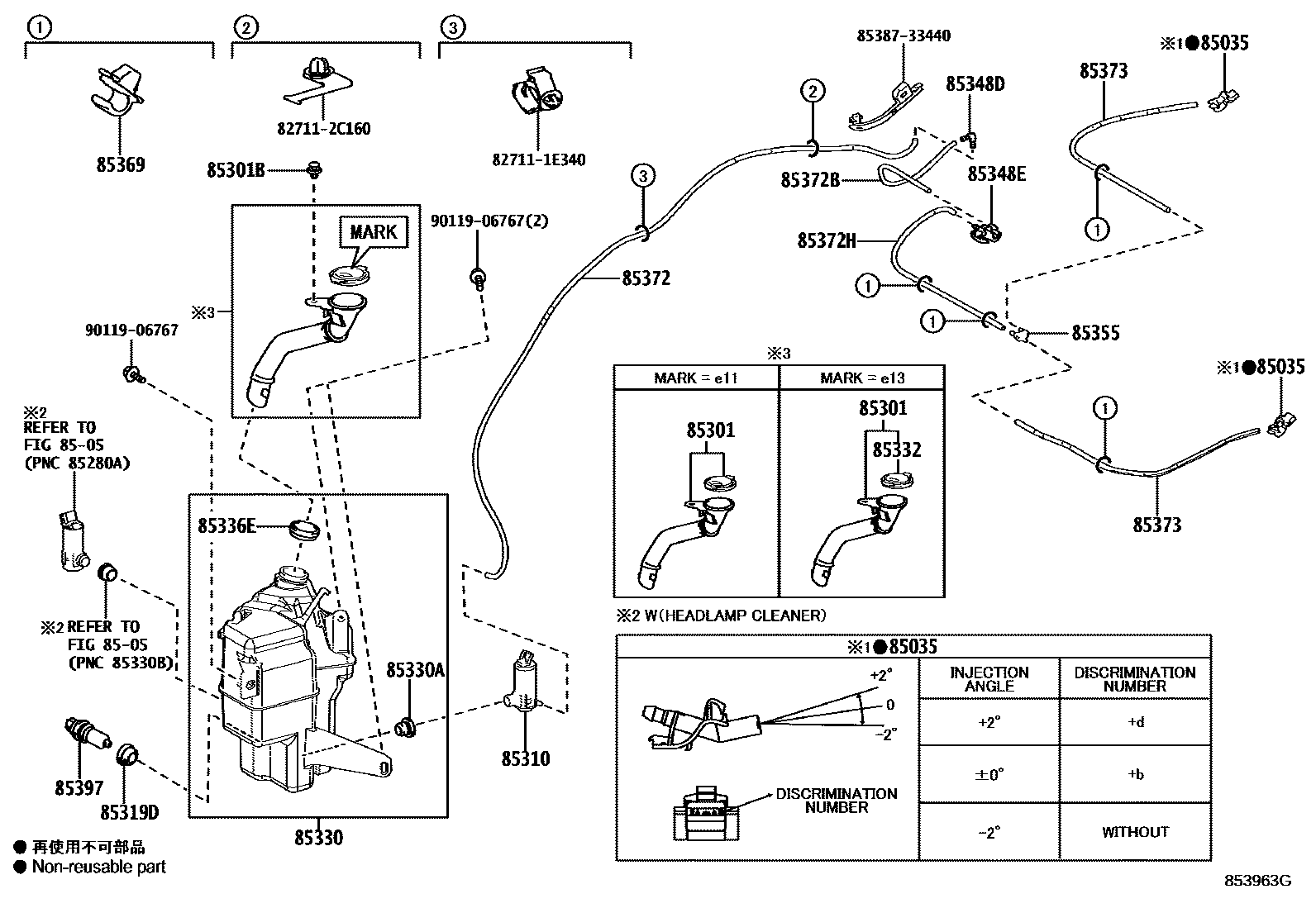

Diagram

27 parts
Lexus ES350-300H-2 2021 — Windshield Washer
