Open RegionYearModelModelCode Details
General 2021 ES350 300H 2 AXZH10L-AEXGBC
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 1J7 Trim Code: LA50 Production: 201807-202108 Model Short: AXZH10L-AEXGBC Region: OTHER Native Region: GR

Lexus ES350-300H-2 2021 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85532-76010 SOCKET, USB CHARGER 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2019-10 – 2021-10 Replacements:85532-33030 (fitment: unknown)
— Part does not apply to this vehicle configuration. 85532C —
84970-33230 SWITCH ASSY, COMBINATION, NO.3 1
Note:AXZH10..LHD Production:2018-07 – 2021-08
85530-42010 SOCKET ASSY, POWER OUTLET, NO.2 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
85535-33110 COVER, POWER OUTLET SOCKET, NO.2 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
85530-42010 SOCKET ASSY, POWER OUTLET, NO.1 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
85535-44050-C1 COVER, POWER OUTLET SOCKET, NO.1 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:BLACK

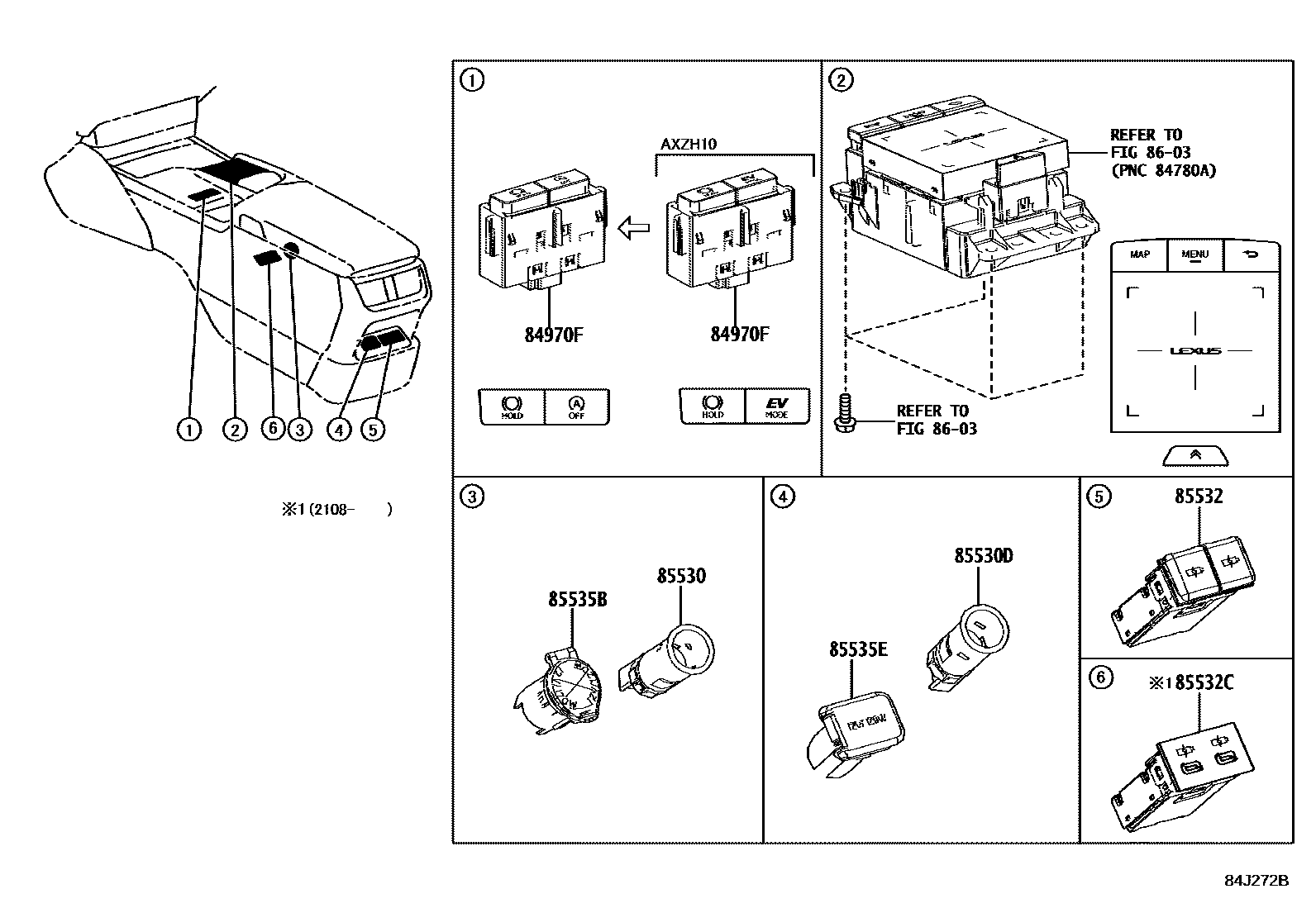

Diagram

6 parts
Lexus ES350-300H-2 2021 — Switch & Relay & Computer
