Lexus ES350-300H-2 2021 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82611-47060 | COVER, FUSE BLOCK | 1 | |
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 | |||
| — | Part does not apply to this vehicle configuration. | 85911D | — |
| — | Part does not apply to this vehicle configuration. | 89747F | — |
| 82613-47020 | BLOCK, FUSE BASE | 1 | |
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 | |||
| 83320-33160 | GAGE ASSY, FUEL SENDER | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 | |||
| — | Part does not apply to this vehicle configuration. | 84656A | — |
| — | Part does not apply to this vehicle configuration. | 84931B | — |
| — | Part does not apply to this vehicle configuration. | 88162 | — |
| — | Part does not apply to this vehicle configuration. | 88163 | — |
| — | Part does not apply to this vehicle configuration. | 891B1 | — |
| — | Part does not apply to this vehicle configuration. | 891B2 | — |
| — | Part does not apply to this vehicle configuration. | 88172 | — |
| — | Part does not apply to this vehicle configuration. | 88173 | — |
| 89461-48020 | SENSOR, VAPOR PRESSURE | 1 | |
Note:AXZH10..CHI Production:2020-08 – 2021-08 | |||
| 28850-25010 | SENSOR ASSY, BATTERY STATE | 1 | |
Note:A25AFXS,A25BFXS..AXZH10 Production:2018-07 – 2021-10 | |||
| 82620-33110 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 | |||
| 90982-09020 | FUSE, FUSE BLOCK | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09024 | FUSE, FUSE BLOCK | 1 | |
Note:AXZH10 Production:2018-07 – 2021-10 Spec:25A,MINI FUSE | |||
| 28859-25010 | HOLDER, BATTERY CURRENT SENSOR | 1 | |
Note:A25AFXS,A25BFXS..AXZH10 Production:2018-07 – 2021-10 | |||
| 84945-33060 | SWITCH, LUGGAGE ELECTRICAL KEY | 1 | |
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 | |||
| 90159-50138 | standard | — | |
| 90189-05003 | standard | — | |
| 90178-06012 | standard | — | |
| 90167-40057 | standard | — | |
| 90167-50063 | standard | — | |
| 90467-07215 | standard | — | |
| 94151-80801 | standard | — | |
| 90159-40246 | standard | — | |

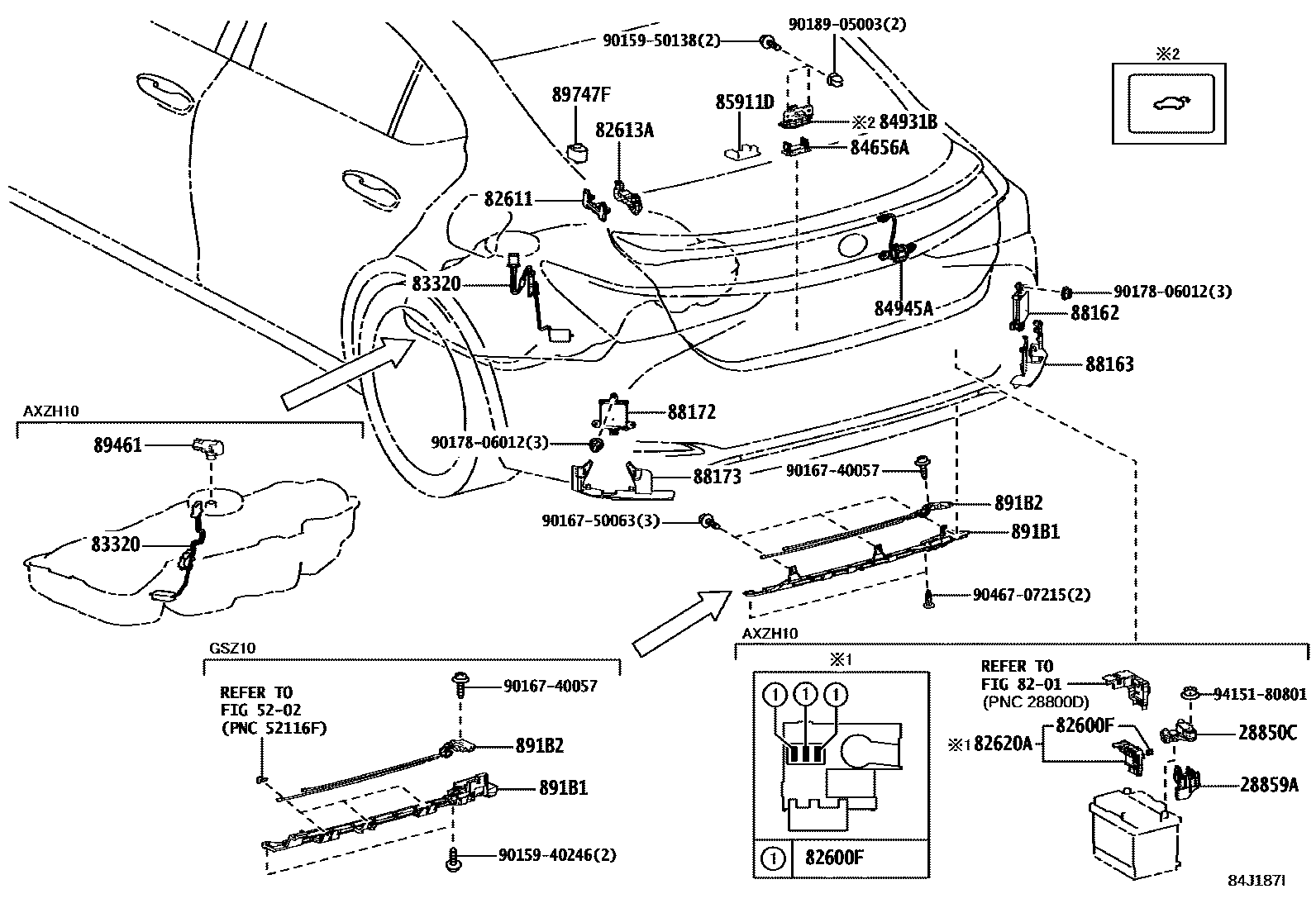

Diagram
18 parts
