Open RegionYearModelModelCode Details
General 2022 ES350 300H 2 AXZH10L-AEXGBV
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LB41 Production: 201807-202108 Model Short: AXZH10L-AEXGBV Region: OTHER Native Region: GR

Lexus ES350-300H-2 2022 — Headlamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
81195-33070 RETAINER, HEADLAMP PROTECTOR, LOWER RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81196-33070 RETAINER, HEADLAMP PROTECTOR, LOWER LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81193-33120 RETAINER, HEADLAMP PROTECTOR, UPPER RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81194-33120 RETAINER, HEADLAMP PROTECTOR, UPPER LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81193-33130 RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81194-33130 RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
90981-15021 BULB (FOR FRONT TURN SIGNAL LAMP) 2
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – … Spec:12V 21W,AMBER
90075-23003 GASKET, HEADLAMP 2
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
8110A-33G10 LENS SUB-ASSY, HEADLAMP, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – …
8110B-33G10 LENS SUB-ASSY, HEADLAMP, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – …
8112A-33G10 UNIT, HEADLAMP CLEARANCE LED, NO.1 RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
8116A-33G10 UNIT, HEADLAMP CLEARANCE LED, NO.1 LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81118-33F10 BRACKET, HEADLAMP, RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81158-33F10 BRACKET, HEADLAMP, LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81125-33F10 CORD, HEADLAMP, RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81165-33F10 CORD, HEADLAMP, LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81130-33G10 UNIT ASSY, HEADLAMP LED, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – …
81170-33G10 UNIT ASSY, HEADLAMP LED, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – …
85661-48050 MOTOR, HEADLAMP LEVELING, RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
53395-33050 SEAL, HEADLAMP, RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
53396-33050 SEAL, HEADLAMP, LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81177-33J00 RIM, HEADLAMP FITTING, LH NO.2 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81279-24010 SCREW, HEADLAMP 10
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81101-33010 HOUSING SUB-ASSY, HEADLAMP, RH 1
Note:MXZA10..EUR;AXZA10,GSZ10;AXZH10..ARL,GCC,GEN Production:2021-08 – …
81102-33010 HOUSING SUB-ASSY, HEADLAMP, LH 1
Note:MXZA10..EUR;AXZA10,GSZ10;AXZH10..ARL,GCC,GEN Production:2021-08 – …
8111A-33F10 UNIT, HEADLAMP CORNERING LED, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
8115A-33F10 UNIT, HEADLAMP CORNERING LED, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81016-33G10 COMPUTER SUB-ASSY, HEADLAMP, RH 1
Note:AXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81056-33G10 COMPUTER SUB-ASSY, HEADLAMP, LH 1
Note:AXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81145-33G10 UNIT ASSY, HEADLAMP, RH 1
Note:AXZH10..GCC;AXZA10,GSZ10,MXZA10..EUR,GCC Production:2021-08 – …
81185-33G10 UNIT ASSY, HEADLAMP, LH 1
Note:AXZH10..GCC;AXZA10,GSZ10,MXZA10..EUR,GCC Production:2021-08 – …
85661-48050 MOTOR, HEADLAMP LEVELING, LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – …
81136-33J00 RIM, HEADLAMP, RH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81176-33J00 RIM, HEADLAMP, LH 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81137-33J00 RIM, HEADLAMP FITTING, RH NO.2 1
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
81132-48C30 GASKET, HEADLAMP LENS 2
Note:AXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND Production:2021-08 – …
90109-06388 standard —
90159-60621 standard —
90189-06238 standard —
90075-02056 standard —
90075-02060 standard —
90075-01017 standard —
90075-02052 standard —
90075-02051 standard —

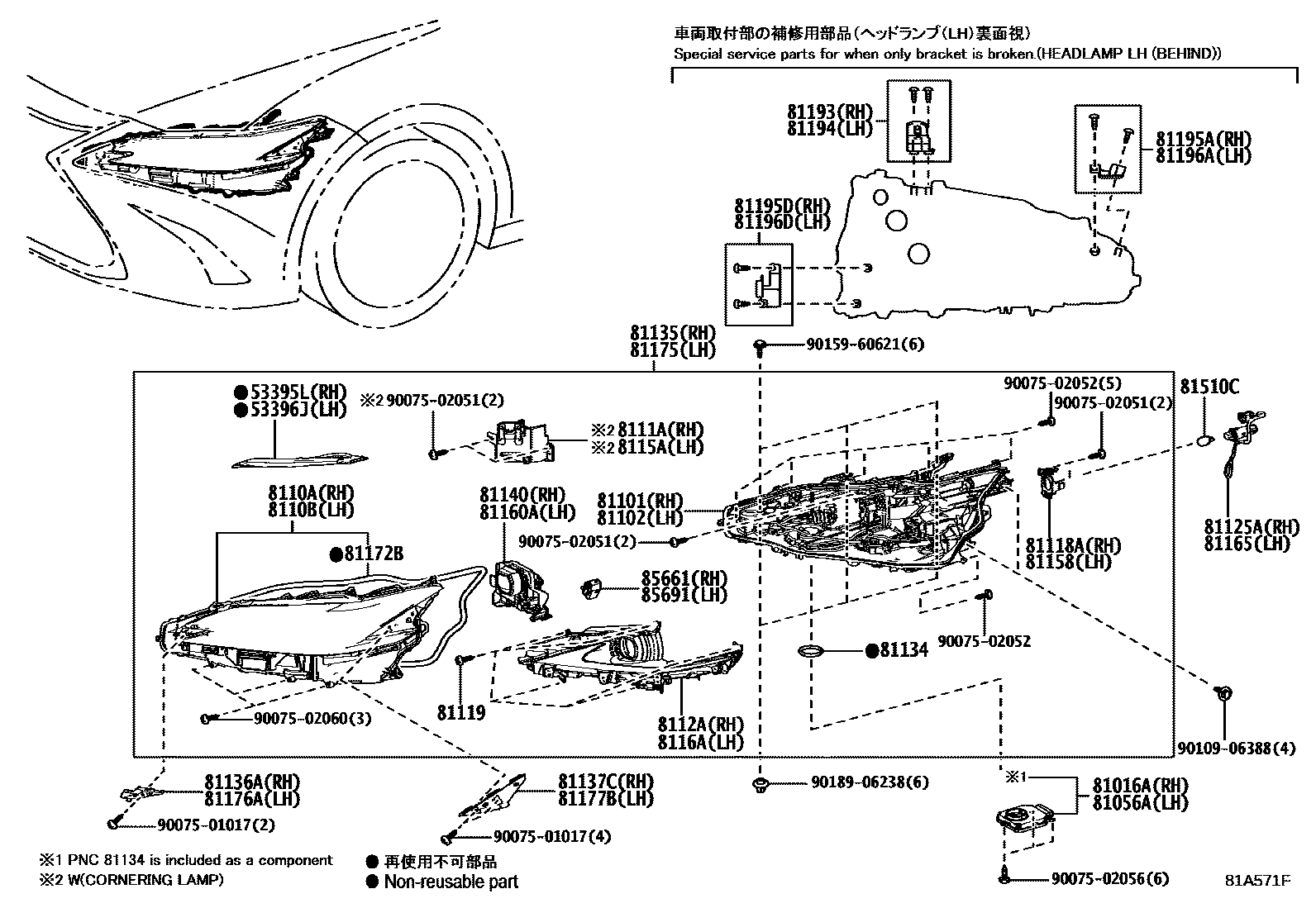

Diagram

44 parts
Lexus ES350-300H-2 2022 — Headlamp
