Open RegionYearModelModelCode Details
General 2022 ES350 300H 2 AXZH10L-AEXGBV
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LB41 Production: 201807-202108 Model Short: AXZH10L-AEXGBV Region: OTHER Native Region: GR

Lexus ES350-300H-2 2022 — Battery & Battery Cable

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
G920G-33010 PLATE SUB-ASSY, HV BATTERY END, NO.4 1
Note:AXZH10 Production:2021-08 – …
G920K-33010 PLATE SUB-ASSY, HV BATTERY END, NO.5 1
Note:AXZH10 Production:2021-08 – …
G920S-33020 SHIELD SUB-ASSY, HV BATTERY, NO.3 1
Note:AXZH10 Production:2021-08 – …
G3834-47050 GRIP, SERVICE PLUG 1
Note:AXZH10 Production:2021-08 – …
G920T-33020 SHIELD SUB-ASSY, HV BATTERY, NO.4 1
Note:AXZH10 Production:2021-08 – …
G92Z0-47100 BLOCK ASSY, HV BATTERY JUNCTION 1
Note:AXZH10 Production:2021-11 – …
G920R-33030 SHIELD SUB-ASSY, HYBRID BATTERY, NO.2 1
Note:AXZH10 Production:2021-08 – …
G92N4-33040 PANEL, HV BATTERY RH COVER, NO.1 1
Note:AXZH10 Production:2021-08 – …
G9295-30020 STRIKER, BATTERY COVER LOCK 1
Note:AXZH10 Production:2021-08 – …
G92F1-33020 DUCT, HYBRID BATTERY EXHAUST, NO.1 1
Note:AXZH10 Production:2021-08 – …
G92E1-33020 DUCT, HV BATTERY INTAKE, NO.1 LH 1
Note:AXZH10 Production:2021-08 – …
G92Q1-33050 PANEL, HV BATTERY SHIELD, NO.1 1
Note:AXZH10 Production:2021-08 – …
G92Z2-47070 BLOCK, HYBRID BATTERY TERMINAL 1
Note:AXZH10 Production:2021-08 – …
89892-33040 SENSOR, BATTERY VOLTAGE 1
Note:AXZH10 Production:2021-08 – …
94151-80800 standard —
90119-08A87 standard —
91673-E0860 standard —
90119-08C69 standard —
90179-06274 standard —
90119-06961 standard —
90467-06121 standard —
90178-06023 standard —
90467-07215 standard —
82711-1E350 standard —
90105-06345 standard —

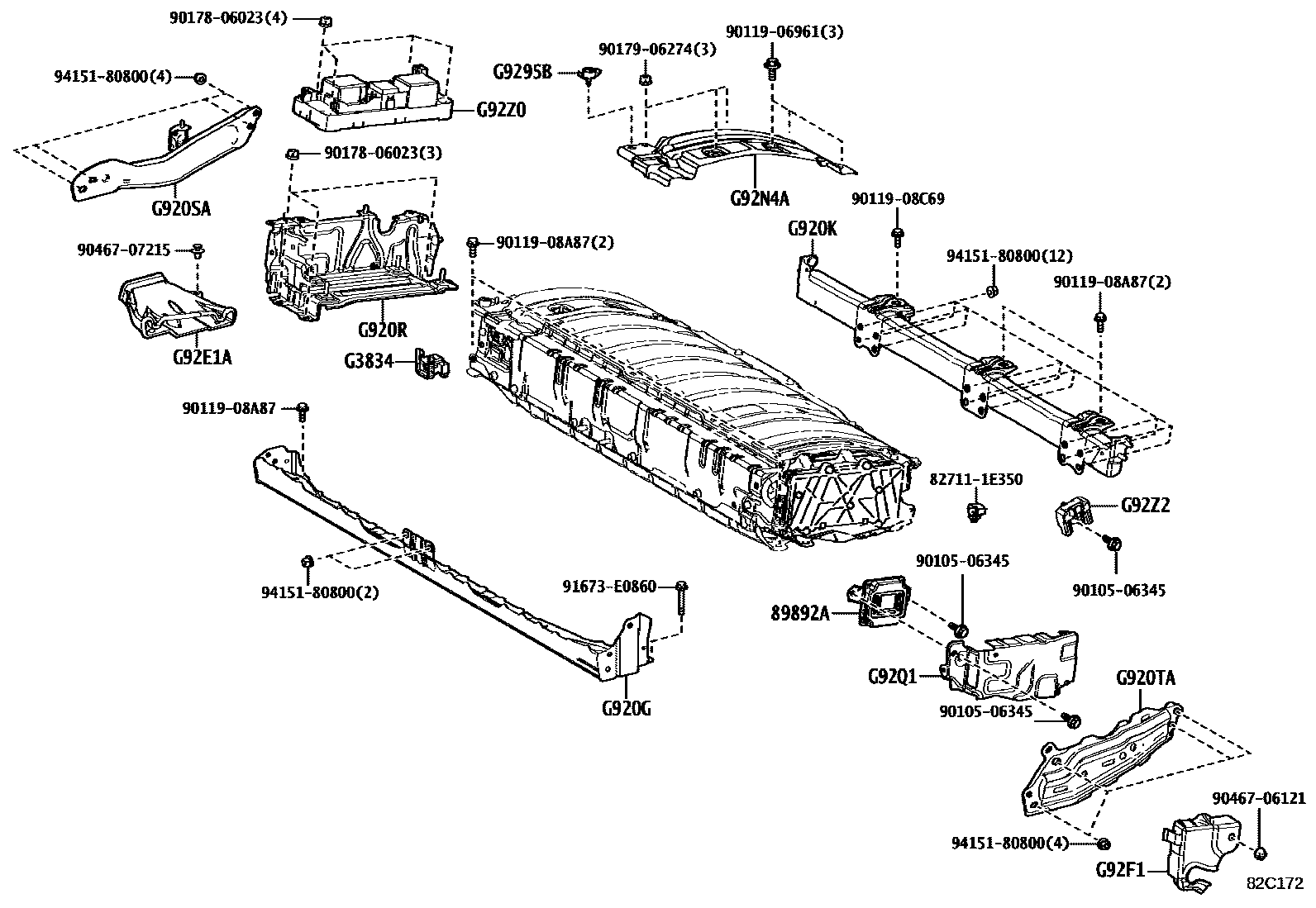

Diagram

25 parts
Lexus ES350-300H-2 2022 — Battery & Battery Cable
