Lexus ES350-300H 2018 — Floor Pan & Lower Back Panel
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 58165-33030 | COVER, FRONT FLOOR, RH | 1 | |
Note:AXZH10,GSZ10 Production:2018-06 – 2019-12 Replacements:58165-33031 (fitment: unknown) | |||
| 90467-14053 | CLIP, FRONT FLOOR COVER, NO.1 | 2 | |
Note:AXZH10 Production:2018-06 – 2021-10 | |||
| 90467-17026-A0 | CLIP, FRONT FLOOR COVER, NO.2 | 4 | |
Note:AXZH10 Production:2018-06 – 2021-10 Spec:SUPER WHITE 2 | |||
| 90467-17027-C0 | CLIP, FRONT FLOOR COVER, NO.3 | 4 | |
Note:AXZH10 Production:2018-06 – 2021-10 Spec:BLACK | |||
| 58166-33040 | COVER, FRONT FLOOR, LH | 1 | |
Note:AXZH10 Production:2018-06 – 2021-10 Replacements:58166-33020 (fitment: unknown) | |||
| 90467-14053 | CLIP, FRONT FLOOR COVER, NO.1 | 2 | |
Note:AXZH10 Production:2018-06 – 2021-10 | |||
| 90467-17026-A0 | CLIP, FRONT FLOOR COVER, NO.2 | 4 | |
Note:AXZH10 Production:2018-06 – 2021-10 Spec:SUPER WHITE 2 | |||
| 90467-17027-C0 | CLIP, FRONT FLOOR COVER, NO.3 | 4 | |
Note:AXZH10 Production:2018-06 – 2021-10 Spec:BLACK | |||
| 58398-33070 | COVER, FLOOR UNDER, NO.1 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 Replacements:58398-33100 (fitment: unknown) | |||
| 58399-33080 | COVER, FLOOR UNDER, NO.2 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 Replacements:58399-33110 (fitment: unknown) | |||
| 90467-17026-A0 | CLIP, FLOOR UNDER COVER, NO.1 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 Spec:SUPER WHITE 2 | |||
| 90467-17027-C0 | CLIP, FLOOR UNDER COVER, NO.2 | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 Spec:BLACK | |||
| 90467-14053 | CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | 2 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 57628-33140 | COVER, REAR FLOOR SIDE MEMBER | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 90109-06388 | standard | — | |
| 90467-07220 | standard | — | |
| 90480-10024 | standard | — | |
| 90561-10024 | standard | — | |
| 90561-13004 | standard | — | |

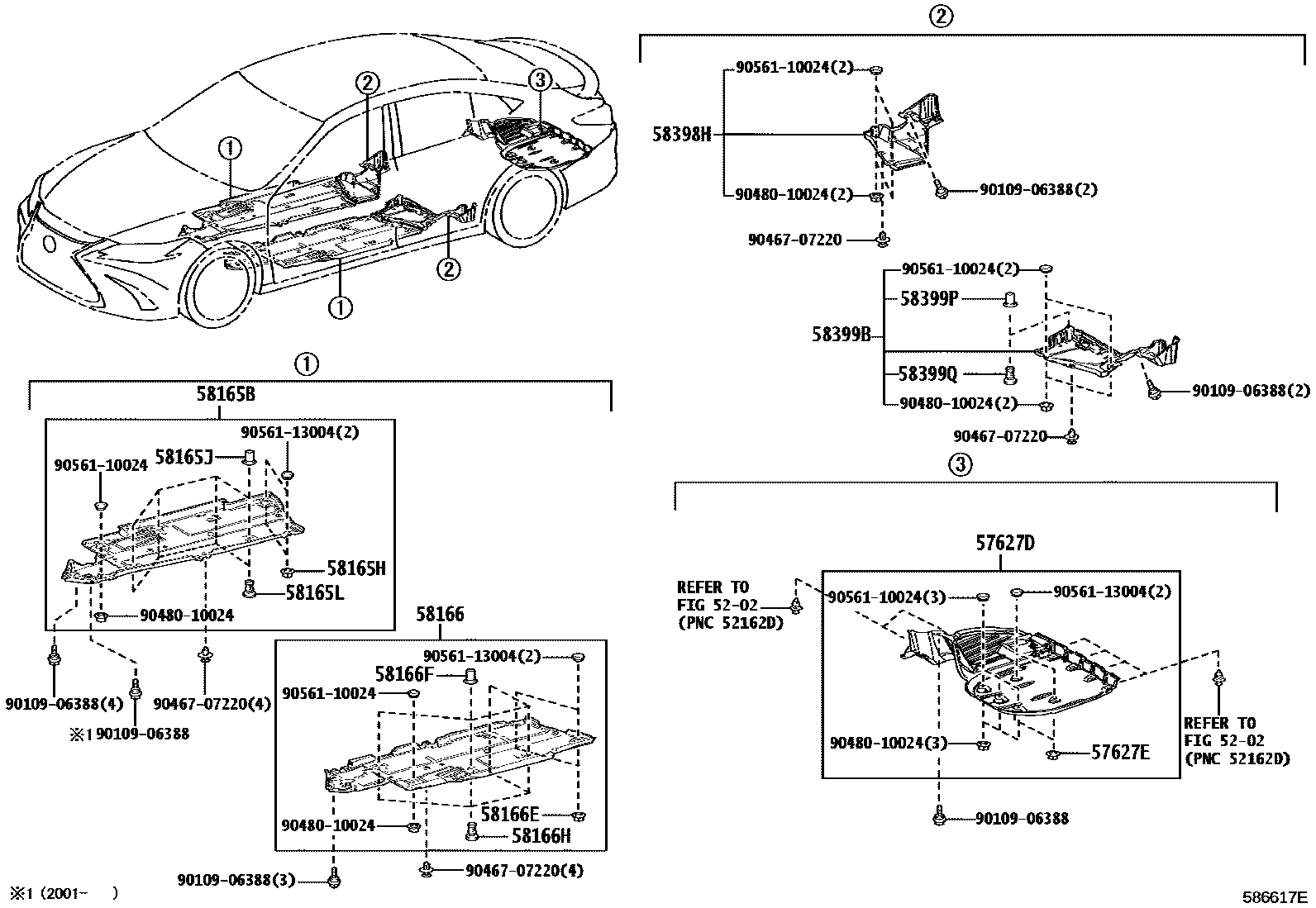

Diagram
19 parts
