Lexus RX330-350-NAP 2007 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 81980-53020 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:GSU3#..NAP Production:2006-02 – … | |||
| 90080-87026 | RELAY, FOG LAMP | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90080-87026 | RELAY, TAILLAMP | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85910X | — |
| 90987-A2002 | RELAY, IGNITION, NO.1 | 2 | |
Note:2GRFE..GSU3#..NAP Production:2007-04 – … Replacements:90987-02030 (fitment: unknown) | |||
| 90982-08246 | FUSIBLE LINK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Spec:100A,TERM.:MALE,BLUE | |||
| 90982-08283 | FUSIBLE LINK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Spec:30A,TERM.:FEMALE,PNK | |||
| 90982-08284 | FUSIBLE LINK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Spec:40A,TERM.:FEMALE,GRN | |||
| 90982-08285 | FUSIBLE LINK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Spec:50A,FEMALE,RED,32VDC | |||
| 90982-08286 | FUSIBLE LINK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Spec:140A,TERM.:MALE,RBR | |||
| 90080-82050 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Replacements:90982-09020 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B | |||
| 90080-82051 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Replacements:90982-09021 (fitment: unknown) Spec:10A,MINI FUSE,RED,INSTRUMENT PANEL J/B | |||
| 90080-82052 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Replacements:90982-09022 (fitment: unknown) Spec:15A,MINI FUSE,BLUE,INSTRUMENT PANEL J/B | |||
| 90080-82053 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Replacements:90982-09023 (fitment: unknown) Spec:20A,MINI FUSE,YELLOW,INSTRUMENT PANEL J/B | |||
| 90080-82054 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Replacements:90982-09025 (fitment: unknown) Spec:30A,MINI FUSE,GREEN,INSTRUMENT PANEL J/B | |||
| 90080-82055 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 Replacements:90982-09024 (fitment: unknown) Spec:25A,MINI FUSE,INSTRUMENT PANEL J/B | |||
| 90982-09008 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Spec:7.5A,MINI FUSE,BRN,ENGINE ROOM J/B | |||
| 90982-09009 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Spec:10A,MINI FUSE,RED,ENGINE ROOM J/B | |||
| 90982-09010 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Spec:15A,MINI FUSE,BLUE,ENGINE ROOM J/B | |||
| 90982-09011 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Spec:20A,MINI FUSE,YELLOW,ENGINE ROOM J/B | |||
| 90982-09012 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Spec:25A,MINI FUSE,ENGINE ROOM J/B | |||
| 90982-09013 | FUSE, FUSE BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Spec:30A,MINI FUSE,GRN,ENGINE ROOM J/B | |||
| 82672-0E050 | COVER, JUNCTION BLOCK | 1 | |
Note:GSU3#..NAP Production:2006-04 – … | |||
| 82602-48050 | BLOCK SUB-ASSY, RELAY | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 | |||
| 84340-0E020 | SWITCH ASSY, STOP LAMP | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Replacements:84340-04030 (fitment: unknown) | |||
| 89227-0E020 | COMPUTER, MULTIPLEX TILT & TELESCOPIC | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2008-10 Replacements:89227-48010 (fitment: unknown) | |||
| 84550-04030 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 | |||
| 85431-45010 | SOLENOID, SHIFT LOCK | 1 | |
Note:GSU3#..NAP Production:2006-02 – 2009-01 | |||
| 85940-48030 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:GSU3#..NAP Production:2006-02 – … Spec:WINDSHIELD WIPER-RAIN SENSING | |||
| 89111-48090 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:GSU3#..NAP Production:2006-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 89960 | — |
| 89940-48181 | COMPUTER ASSY, HEADLAMP SWIVEL | 1 | |
Note:GSU30..NAP Production:2006-11 – 2009-01 Spec:HEADLAMP-DISCHARGE & WITH(AFS) | |||
| 82730-0E071 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:GSU3#..NAP Production:2006-04 – … Replacements:82730-0E072 (fitment: unknown) | |||
| 82715-48310 | standard | — | |
| 90080-17190 | standard | — | |
Replacements:90179-06288 (fitment: unknown) | |||
| 90080-15073 | standard | — | |
Replacements:90159-50327 (fitment: unknown) | |||
| 82715-0E180 | standard | — | |
| 90179-A0010 | standard | — | |
Replacements:90179-06008 (fitment: unknown) | |||
| 90080-15078 | standard | — | |
Replacements:93313-14010 (fitment: unknown) | |||
| 90080-16097 | standard | — | |
Replacements:93567-55016 (fitment: unknown) | |||

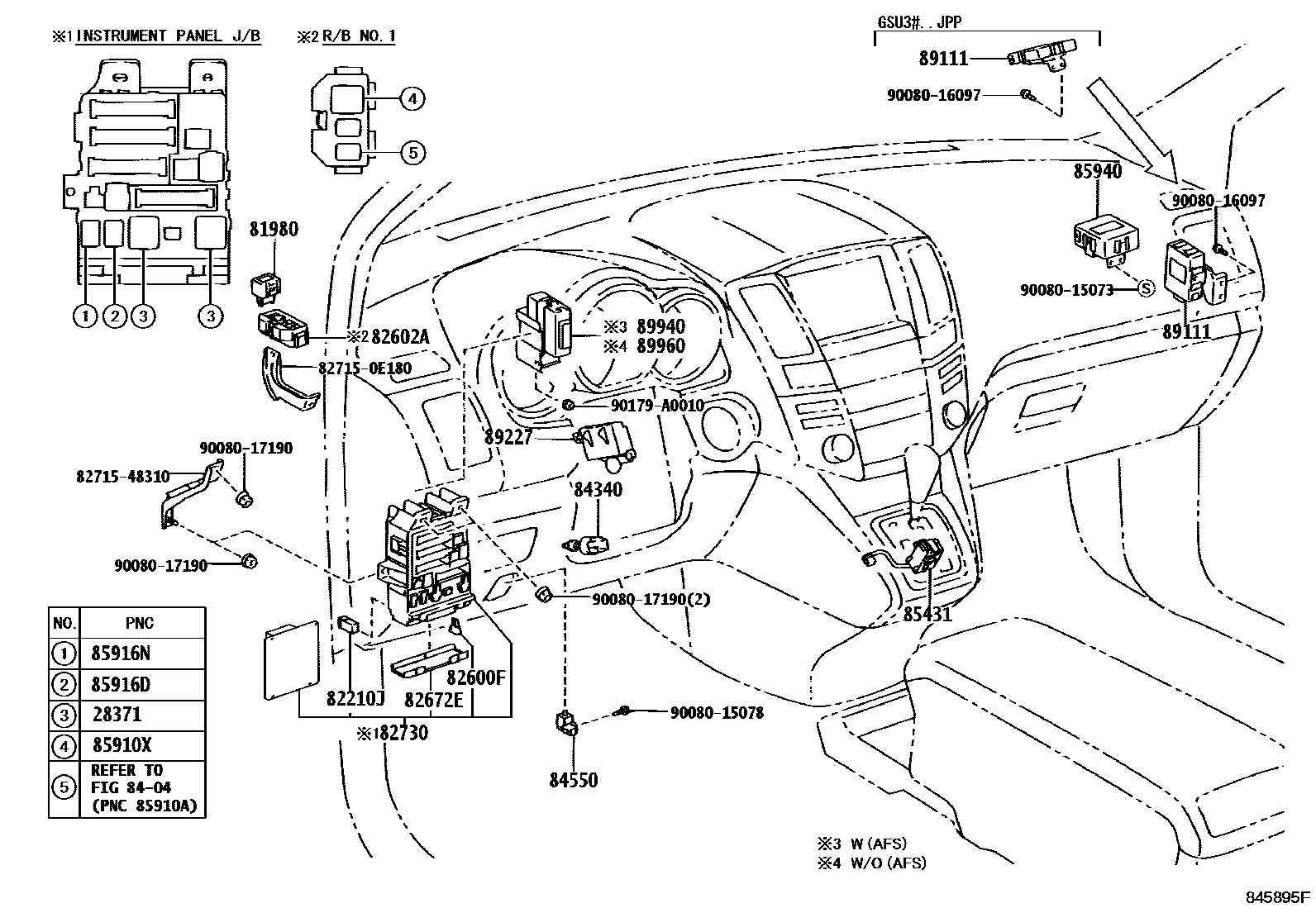

Diagram
38 parts
