General 2012 I20 08 CNW5D2615
Catalog: HYUNDAI202602 Model: CNW5D2615 Model Year: 2012 Engine Number: G4FCBW474033 Transmission Number: TCM50B792679 Destination: GEN Nation: SOUTH AFRICA Plant: I2 Exterior Color: CORAL WHITE Interior Color: MIDNIGHT BLACK Drive Type: DRIVE TYPE - RHD Weather Type: WEATHER - THE TROPICAL ZONE Body Type: WAGON - 5DR 5P Engine Capacity: 1600 CC - GAMMA Engine Type: DOHC - MPI Fuel Type: GASOLINE - UNLEADED Transaxle: MANUAL T/M - 5 SPEED 2WD Build Date: 2012-02-11 Nation Code: E37 Area: I2 Drive Type: R Weather Type: 1 Order Number: E1202D002E37A Vehicle Factory: 145 Full Specification Code: E37ACNW5D2615 GA5610 Exterior Color Code: PHW Interior Color Code: 9P Engine Mip Code: MG28 Transmission Mip Code: PG52 Vin Tag: 1 Model Year Code: 08 Catalog Information: (W5) WAGON - 5DR 5P,(D2) 1600 CC - GAMMA,(6) DOHC - MPI,(1) GASOLINE - UNLEADED,(5) MANUAL T/M - 5 SPEED 2WD,(R) DRIVE TYPE - RHD,(1) WEATHER - THE TROPICAL ZONE Region: OTHER Native Region: GEN

Hyundai I20 08 2012 — Engine & Transaxle Mounting [1600 CC - Gamma]

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1123410506K BOLT 4
Production:2006-09-01 – …
1123410506K BOLT 4
Production:2000-01-01 – …
1123610356K BOLT - SEMS 2
Production:2007-04-30 – …
1129410506K BOLT - WASHER ASSY 4
Production:2011-09-09 – 2012-06-27
1140610406K BOLT - FLANGE 2
Production:2007-04-30 – …
1339610007K NUT 4
Production:2007-04-30 – …
1339612007K NUT 1
Production:2007-04-30 – …
1339612007K NUT 1
Production:2008-03-29 – …
2167126001 STUD 2
Production:2006-09-01 – …
2167126001 STUD 2
Production:2006-06-20 – …
216702B000 BRACKET ASSY - ENGINE SUPPORT 1
Production:2006-09-01 – …
216702B000 BRACKET ASSY - ENGINE SUPPORT 1
Production:2000-01-01 – …
218101J000 BRACKET ASSY - ENGINE MOUNTING 1
Production:2008-07-03 – …
218211J000 BOLT ASSY - ENGINE MOUNTING 1
Production:2007-04-30 – …
218251J200 BRACKET - ENGINE MOUNTING SUPPORT 1
Production:2007-04-30 – …
218301J200 BRACKET ASSY - TRANSMISSION MOUNTING 1
Production:2007-04-30 – …
218381C000 BOLT - FLANGE 3
Production:2007-04-30 – …
218411G000 BOLT 4
Production:2007-04-30 – …
219911J100 BOLT 1
Production:2010-07-28 – …
219501J000 BRACKET ASSY - ROLL ROD 1
Production:2007-04-30 – …
218371J200 BRACKET - TRANSMISSION 1
Production:2007-04-30 – …

Diagram

21 parts

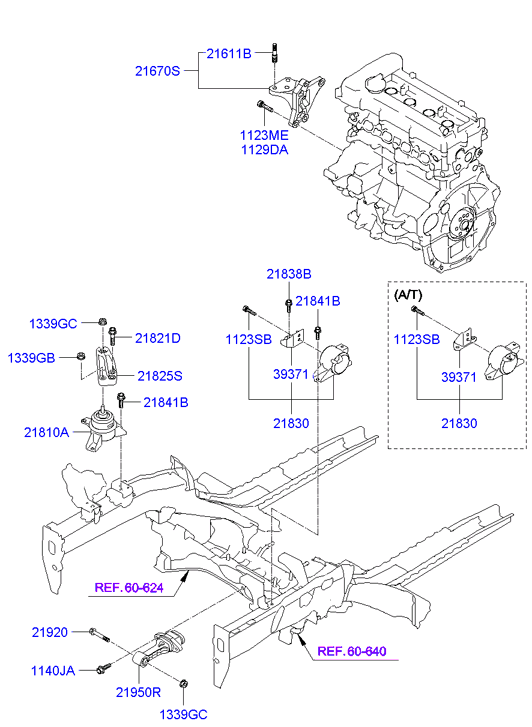

Hyundai I20 08 2012 — Engine & Transaxle Mounting [1600 CC - Gamma]
