Toyota AURIS-HYBRID-UKP 2016 — Fuel Injection System
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 23814-37061 | PIPE SUB-ASSY, FUEL DELIVERY | 1 | |
Note:2ZRFXE..ZWE186 Production:2015-05 – … | |||
| 23891-37010 | SPACER, NO.1(FOR DELIVERY PIPE) | 2 | |
Note:1ZRFAE,2ZRFXE..ZRE185,ZWE186 Production:2015-05 – … | |||
| 23209-09130 | INJECTOR ASSY, FUEL | 4 | |
Note:1ZRFAE,2ZRFXE..ZRE185,ZWE186 Production:2015-05 – … Replacements:23209-39145 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 23209-39145 | INJECTOR ASSY, FUEL | 4 | |
Note:1ZRFAE,2ZRFXE..ZRE185,ZWE186 Production:2015-05 – … Spec:(J) Spec Note:(Japan made) | |||
| 90301-07037 | RING, O(FOR FUEL INJECTOR) | 4 | |
Note:1ZRFAE,2ZRFXE..ZRE185,ZWE186 Production:2015-05 – … | |||
| 23291-23010 | INSULATOR, INJECTOR VIBRATION | 4 | |
Note:1ZRFAE,2ZRFXE..ZRE185,ZWE186 Production:2015-05 – … | |||
| 23901-37200 | TUBE SUB-ASSY, FUEL | 1 | |
Note:2ZRFXE..ZWE186 Production:2015-05 – … | |||
| 23842-28010 | CLAMP, FUEL PIPE, NO.2(FOR EFI) | 1 | |
Note:1ZRFAE,2ZRFXE..ZRE185,ZWE186 Production:2015-05 – … | |||
| 22030-0T110 | BODY ASSY, THROTTLE | 1 | |
Note:2ZRFXE..ZWE186 Production:2015-05 – … Replacements:22030-37060 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 22030-37060 | BODY ASSY, THROTTLE | 1 | |
Note:2ZRFXE..ZWE186 Production:2015-05 – … Spec:(J) Spec Note:(Japan made) | |||
| 22271-0T030 | GASKET, THROTTLE BODY | 1 | |
Note:2ZRFXE..ZWE186 Production:2015-05 – … Replacements:22271-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 22271-37010 | GASKET, THROTTLE BODY | 2 | |
Note:2ZRFXE..ZWE186 Production:2015-05 – … Spec:(J) Spec Note:(Japan made) | |||
| 23841-37090 | CLAMP, FUEL PIPE, NO.1(FOR EFI) | 1 | |
Note:1ZRFAE,2ZRFXE..ZRE185,ZWE186 Production:2015-05 – … | |||
| 91551-L0845 | standard | — | |
| 91671-80820 | standard | — | |
| 91671-80650 | standard | — | |
| 90126-06027 | standard | — | |
| 94151-80600 | standard | — | |

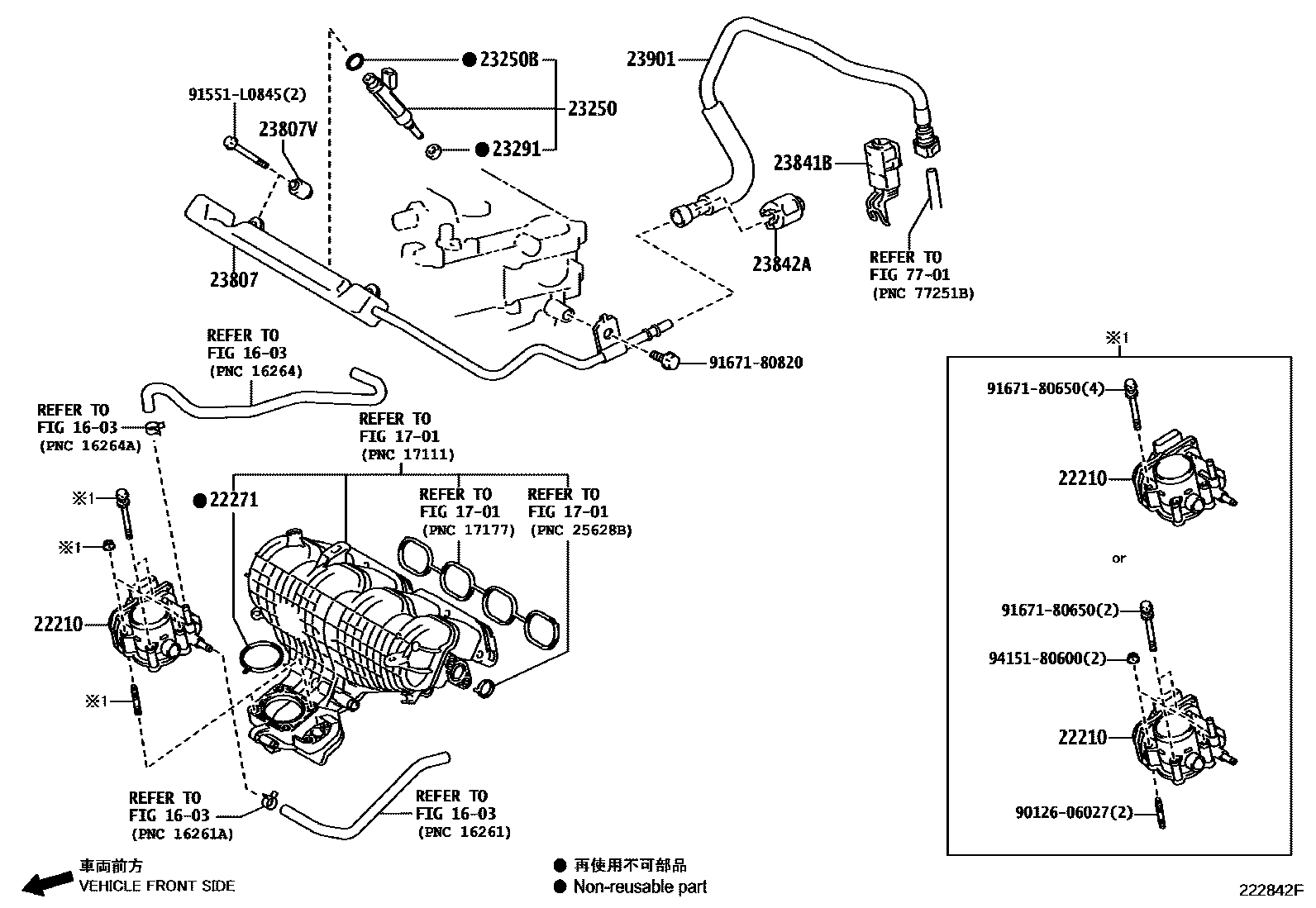

Diagram
18 parts
