Toyota Avensis 2009 — Fuel Injection System
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 22030-0T050 | BODY ASSY, THROTTLE | 1 | |
Note:1ZRFAE,2ZRFAE..ZRT270,271 Production:2008-11 – 2011-11 Replacements:22030-37050 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 22030-37050 | BODY ASSY, THROTTLE | 1 | |
Note:1ZRFAE,2ZRFAE..ZRT270,271 Production:2008-11 – 2011-11 Spec:(J) Spec Note:(Japan made) | |||
| 22271-0T020 | GASKET, THROTTLE BODY | 1 | |
Note:1ZRFAE,2ZRFAE..ZRT270,271 Production:2008-11 – 2011-11 Replacements:22271-75031 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 22271-75031 | GASKET, THROTTLE BODY | 1 | |
Note:1ZRFAE..ZRT270 Production:2008-11 – 2011-11 Spec:(J) Spec Note:(Japan made) | |||
| 23814-37050 | PIPE SUB-ASSY, FUEL DELIVERY | 1 | |
Note:3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# Production:2008-11 – 2011-08 Replacements:23814-37051 (fitment: unknown) | |||
| 23891-37010 | SPACER, NO.1(FOR DELIVERY PIPE) | 2 | |
Note:3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# Production:2008-11 – 2011-11 | |||
| 23209-09130 | INJECTOR ASSY, FUEL | 4 | |
Note:1ZRFAE,2ZRFAE..ZRT270,271 Production:2008-11 – 2011-11 Replacements:23209-39145 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 23209-39145 | INJECTOR ASSY, FUEL | 4 | |
Note:1ZRFAE,2ZRFAE..ZRT270,271 Production:2008-11 – 2011-11 Spec:(J) Spec Note:(Japan made) | |||
| 90301-07037 | RING, O(FOR FUEL INJECTOR) | 4 | |
Note:3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# Production:2008-11 – 2011-11 | |||
| 23291-23010 | INSULATOR, INJECTOR VIBRATION | 4 | |
Note:1ZRFAE,2ZRFAE..ZRT270,271 Production:2008-11 – 2011-11 Spec:TYPE A:REFER ILLUST. | |||
| 222A0-37013 | CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT | 1 | |
Note:1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# Production:2009-08 – 2009-09 Replacements:222A0-37014 (fitment: unknown) | |||
| 222A0-37014 | CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT | 1 | |
Note:1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# Production:2009-09 – 2011-01 Replacements:222A0-37015 (fitment: unknown) | |||
| 23901-0D090 | TUBE SUB-ASSY, FUEL | 1 | |
Note:1ZRFAE,2ZRFAE..ZRT270,271 Production:2008-11 – 2011-11 | |||
| 23841-21040 | CLAMP, FUEL PIPE, NO.1(FOR EFI) | 1 | |
Note:3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# Production:2008-11 – 2011-11 | |||
| 23842-28010 | CLAMP, FUEL PIPE, NO.2(FOR EFI) | 1 | |
Note:3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# Production:2008-11 – 2011-11 | |||
| 222A2-37010 | CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR | 1 | |
Note:1ZRFAE,2ZRFAE..ZRT270,271 Production:2008-11 – 2011-11 | |||
| 94151-80800 | standard | — | |
| 90126-08026 | standard | — | |
| 91551-L0845 | standard | — | |
| 91671-80820 | standard | — | |
| 90119-W0220 | standard | — | |
Replacements:91671-E0835 (fitment: unknown) | |||
| 91671-E0835 | standard | — | |
| 90301-38010 | standard | — | |
| 90126-06027 | standard | — | |
| 94151-80600 | standard | — | |
| 91671-80650 | standard | — | |

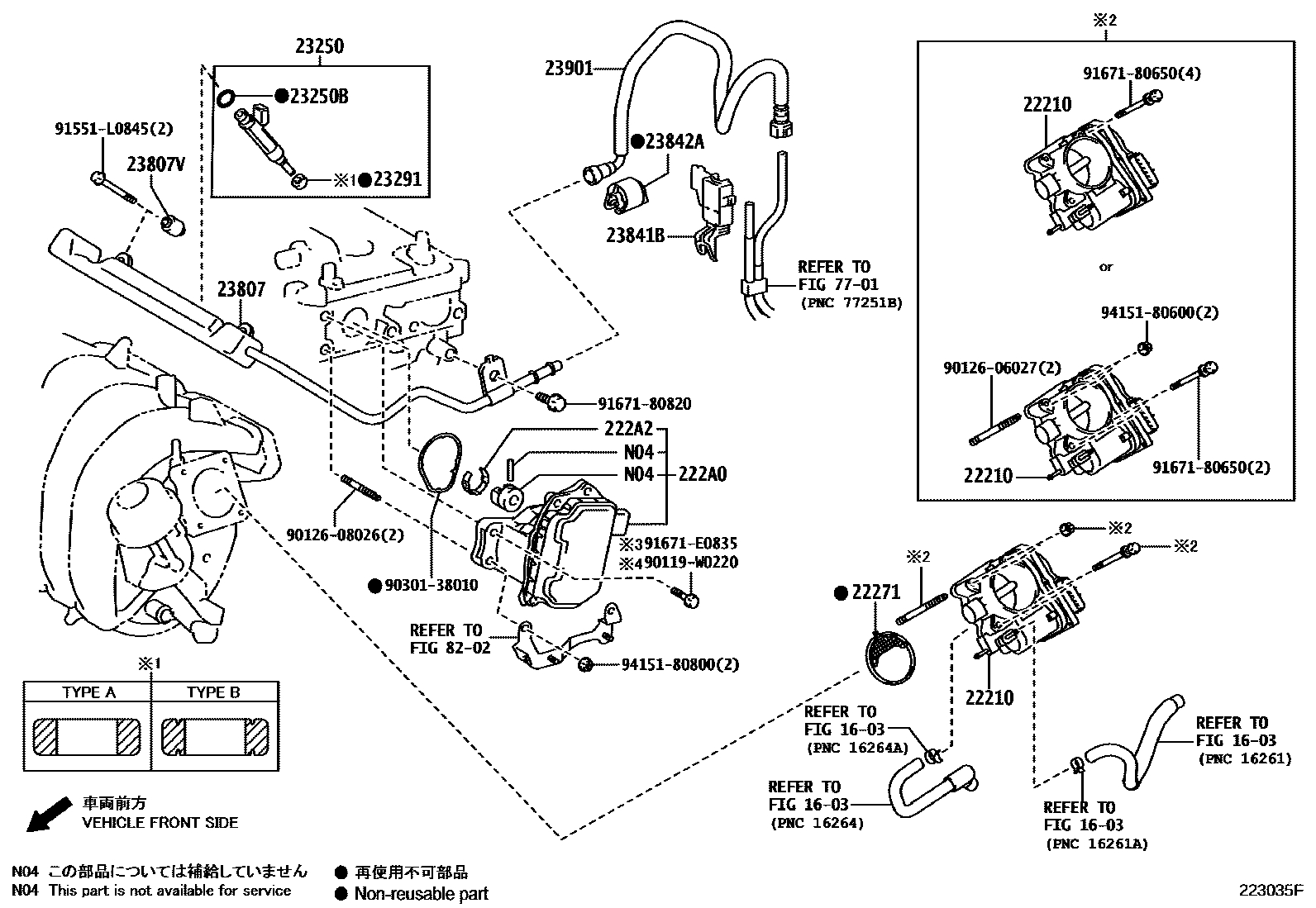

Diagram
26 parts
