Open RegionYearModelModelCode Details
Europe 2009 AVENSIS ZRT270L-AEFEPW
Catalog: TOYOTA202608 Engine: 1600CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 209 Trim Code: FA20 Production: 200811-201111 Model Short: ZRT270L-AEFEPW Region: EU Native Region: EU

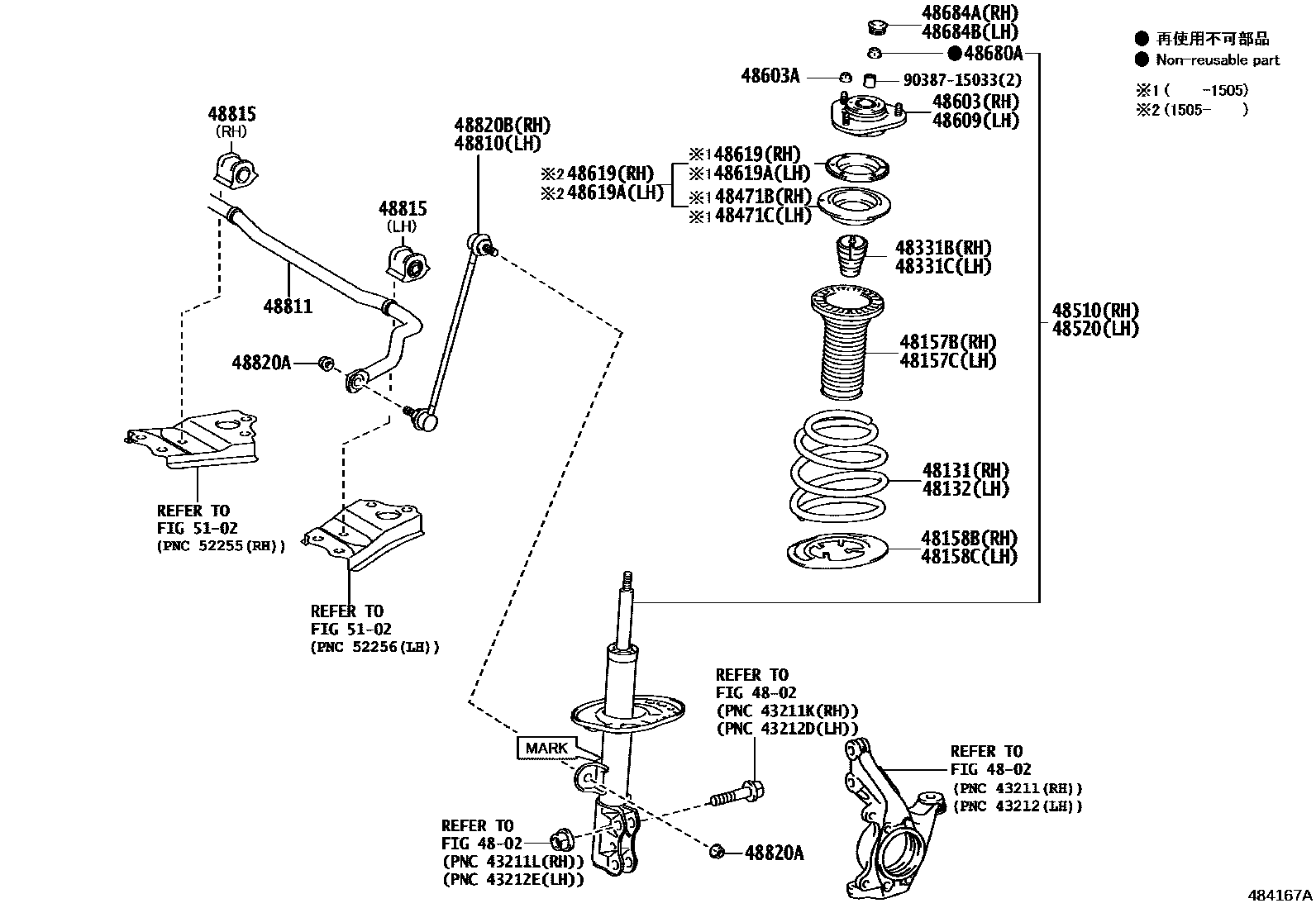

Toyota Avensis 2009 — Front Spring & Shock Absorber

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
48158-05020 INSULATOR, FRONT COIL SPRING, LOWER RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48158-05020 INSULATOR, FRONT COIL SPRING, LOWER LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
90178-W0051 NUT(FOR FRONT STABILIZER LINK) 4
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:94151-21241 (fitment: unknown)
48157-05020 INSULATOR, FRONT COIL SPRING, UPPER RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48157-05020 INSULATOR, FRONT COIL SPRING, UPPER LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48331-05060 BUMPER, FRONT SPRING, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48331-05060 BUMPER, FRONT SPRING, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48609-0F020 SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 1
Note:ADT27#,ZRT27# Production:2008-12 – 2010-12 Replacements:48609-0F021 (fitment: unknown)
48609-0F020 SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 1
Note:ADT27#,ZRT27# Production:2008-12 – 2010-12 Replacements:48609-0F021 (fitment: unknown)
48619-28010 BEARING, STRUT MOUNTING, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48619-28010 BEARING, STRUT MOUNTING, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
90177-14005 NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) 2
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48684-05030 COVER, FRONT SUSPENSION SUPPORT DUST, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48684-05030 COVER, FRONT SUSPENSION SUPPORT DUST, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48131-05860 SPRING, FRONT COIL, RH 1
Note:ZRT270,271..LHD..6F Production:2009-03 – 2011-11 Spec:(L) Spec Note:(Local made)
48131-05860 SPRING, FRONT COIL, LH 1
Note:ZRT270,271..LHD..6F Production:2009-03 – 2011-11 Spec:(L) Spec Note:(Local made)
48471-05020 SEAT, FRONT COIL SPRING, UPPER RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48471-05020 SEAT, FRONT COIL SPRING, UPPER LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48510-09V80 ABSORBER ASSY, SHOCK, FRONT RH 1
Note:ZRT270,271;ZRT272..6F Production:2008-11 – 2010-07 Replacements:48510-09V81 (fitment: unknown) Spec:MARK 48510-05310
48520-09N80 ABSORBER ASSY, SHOCK, FRONT LH 1
Note:ZRT270,271;ZRT272..6F Production:2008-11 – 2010-07 Replacements:48520-09N81 (fitment: unknown) Spec:MARK 48520-05310
90178-10030 NUT(FOR FRONT SUSPENSION SUPPORT) 6
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
48820-02070 LINK ASSY, FRONT STABILIZER, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:48820-42030 (fitment: unknown)
48811-05140 BAR, STABILIZER, FRONT 1
Note:ZRT27#..HTWVM;ZRT272..LHD..HTWC Production:2008-11 – 2011-11
48815-05160 BUSH, FRONT STABILIZER BAR, NO.1 1
Note:ZRT27#..HTWVM;ZRT272..LHD..HTWC Production:2008-11 – 2011-11 Spec:RH
48815-05170 BUSH, FRONT STABILIZER BAR, NO.1 1
Note:ZRT27#..HTWVM;ZRT272..LHD..HTWC Production:2008-11 – 2011-11 Spec:LH
48820-02070 LINK ASSY, FRONT STABILIZER, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:48820-42030 (fitment: unknown)
90387-15033 standard —

Diagram

27 parts
Toyota Avensis 2009 — Front Spring & Shock Absorber
