Europe 1997 CARINA E UKP AT190L-BWMDKW
Catalog: TOYOTA202608 Engine: 1600CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION Body Description: WAGON Vehicle Grade: XL TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 3L3 Production: 199505-199710 Model Short: AT190L-BWMDKW Region: EU Native Region: EU

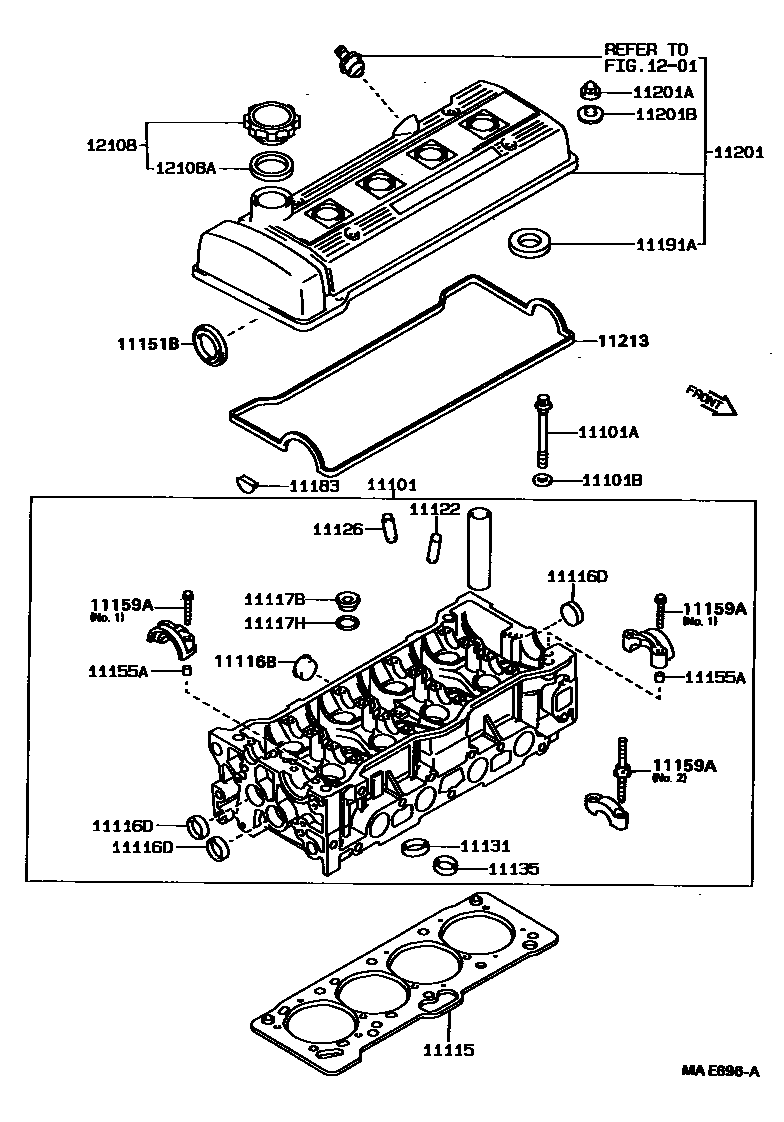

Toyota CARINA-E-UKP 1997 — Cylinder Head

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90176-06028 NUT, CAP(FOR CYLINDER HEAD COVER) 4
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
90210-06010 WASHER, SEAL(FOR CYLINDER HEAD COVER) 4
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
12180-02020 CAP SUB-ASSY, OIL FILLER 1
Note:4AFE,7AFE..AT19#..UKP Production:1993-08 – 1997-10 Replacements:12180-13030 (fitment: unknown) Fitment:Matches · configuration
11210-02040 COVER SUB-ASSY, CYLINDER HEAD 1
Note:4AFE,7AFE..AT19#..UKP Production:1993-07 – 1997-10 Fitment:Matches · configuration
90080-43020 GASKET(FOR OIL FILLER CAP) 1
Note:4AFE,7AFE..AT19#..UKP Production:1993-08 – 1997-10 Replacements:90430-37140 (fitment: unknown) Fitment:Matches · configuration
11193-02010 GASKET(FOR SPARK PLUG TUBE) 4
Note:4AFE,7AFE..AT19#..UKP Production:1993-07 – 1997-10 Fitment:Matches · configuration
11213-02030 GASKET, CYLINDER HEAD COVER 1
Note:4AFE,7AFE..AT19#..UKP Production:1993-08 – 1997-10 Fitment:Matches · configuration
90311-35022 SEAL, OIL(FOR CAMSHAFT SETTING) 1
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Replacements:90311-35040 (fitment: unknown) Fitment:Matches · configuration
90109-10058 BOLT(FOR CYLINDER HEAD SET) 5
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Replacements:90910-02120 (fitment: unknown) Spec:INTAKE Fitment:Matches · configuration
90109-10059 BOLT(FOR CYLINDER HEAD SET) 5
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Replacements:90910-02121 (fitment: unknown) Spec:EXHAUST Fitment:Matches · configuration
90201-10344 WASHER, PLATE(FOR CYLINDER HEAD SET) 10
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
11101-09020 HEAD SUB-ASSY, CYLINDER 1
Note:7AFE..AT191..UKP;4AFE..AT190..UKP..LHD..WG;4AFE..AT190..UKP..RHD..MTM Production:1993-11 – 1997-10 Fitment:Matches · configuration
11183-15020 PLUG, SEMICIRCULAR 1
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
11122-15030 BUSH, INTAKE VALVE GUIDE 8
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:STD Fitment:Matches · configuration
11123-15030 BUSH, INTAKE VALVE GUIDE 8
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:O/S 0.05 Fitment:Matches · configuration
11122-15030 BUSH, EXHAUST VALVE GUIDE 8
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:STD Fitment:Matches · configuration
11123-15030 BUSH, EXHAUST VALVE GUIDE 8
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:O/S 0.05 Fitment:Matches · configuration
96411-42800 PLUG, TIGHT, NO.4 3
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
90341-20002 PLUG, W/HEAD TAPER SCREW, NO.2 3
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
90109-06080 BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 18
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:NO.1 Fitment:Matches · configuration
90109-06222 BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 4
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:NO.2 Fitment:Matches · configuration
90430-20004 GASKET(FOR WATER HOLE) 3
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
96411-42500 PLUG, TIGHT, NO.2 1
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
90253-09001 PIN, RING W/HEAD 6
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
11131-16040 SEAT, INTAKE VALVE 8
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:STD Fitment:Matches · configuration
11132-16040 SEAT, INTAKE VALVE 8
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:O/S 0.03 Fitment:Matches · configuration
11135-16040 SEAT, EXHAUST VALVE 8
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:STD Fitment:Matches · configuration
11136-16040 SEAT, EXHAUST VALVE 8
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Spec:O/S 0.03 Fitment:Matches · configuration
11115-16150 GASKET, CYLINDER HEAD 1
Note:4AFE..AT190..UKP Production:1993-02 – 1997-10 Fitment:Matches · configuration
