Open RegionYearModelModelCode Details
Europe 1997 CARINA E UKP AT190L-BWMDKW
Catalog: TOYOTA202608 Engine: 1600CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION Body Description: WAGON Vehicle Grade: XL TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 3L3 Production: 199505-199710 Model Short: AT190L-BWMDKW Region: EU Native Region: EU

Toyota CARINA-E-UKP 1997 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13041-02040-01 BEARING, CONNECTING ROD 4
Note:4AFE..AT190..UKP Production:1994-12 – 1997-10 Spec:MARK 1 Fitment:Matches · configuration
13041-02040-02 BEARING, CONNECTING ROD 4
Note:4AFE..AT190..UKP Production:1994-12 – 1997-10 Spec:MARK 2 Fitment:Matches · configuration
13041-02040-03 BEARING, CONNECTING ROD 4
Note:4AFE..AT190..UKP Production:1994-12 – 1997-10 Spec:MARK 3 Fitment:Matches · configuration
13204-02040 BEARING SET, CONNECTING ROD 1
Note:4AFE..AT190..UKP Production:1994-12 – 1997-10 Spec:U/S 0.25 Fitment:Matches · configuration
13013-16300 RING SET, PISTON 1
Note:4AFE,7AFE..AT19#..UKP Production:1994-02 – 1997-10 Spec:O/S 0.50 Fitment:Matches · configuration
13011-02040 RING SET, PISTON 1
Note:4AFE,7AFE..AT19#..UKP Production:1994-03 – 1997-10 Spec:STD Fitment:Matches · configuration
13101-02040-01 PISTON SUB-ASSY, W/PIN 4
Note:4AFE..AT190..UKP Production:1994-02 – 1997-10 Spec:STD,MARK 1 Fitment:Matches · configuration
13101-02040-02 PISTON SUB-ASSY, W/PIN 4
Note:4AFE..AT190..UKP Production:1994-02 – 1997-10 Spec:STD,MARK 2 Fitment:Matches · configuration
13101-02040-03 PISTON SUB-ASSY, W/PIN 4
Note:4AFE..AT190..UKP Production:1994-02 – 1997-10 Spec:STD,MARK 3 Fitment:Matches · configuration
13103-02040 PISTON SUB-ASSY, W/PIN 4
Note:4AFE..AT190..UKP Production:1994-02 – 1997-10 Spec:O/S 0.50 Fitment:Matches · configuration
11701-02020-01 BEARING, CRANKSHAFT 5
Note:4AFE,7AFE..AT19#..UKP Production:1994-12 – 1997-10 Spec:MARK 1 Fitment:Matches · configuration
11701-02020-02 BEARING, CRANKSHAFT 5
Note:4AFE,7AFE..AT19#..UKP Production:1994-12 – 1997-10 Spec:MARK 2 Fitment:Matches · configuration
11701-02020-03 BEARING, CRANKSHAFT 5
Note:4AFE,7AFE..AT19#..UKP Production:1994-12 – 1997-10 Spec:MARK 3 Fitment:Matches · configuration
11701-02020-04 BEARING, CRANKSHAFT 5
Note:4AFE,7AFE..AT19#..UKP Production:1994-12 – 1997-10 Spec:MARK 4 Fitment:Matches · configuration
11701-02020-05 BEARING, CRANKSHAFT 5
Note:4AFE,7AFE..AT19#..UKP Production:1994-12 – 1997-10 Spec:MARK 5 Fitment:Matches · configuration
11704-02020 BEARING SET, CRANKSHAFT 1
Note:4AFE,7AFE..AT19#..UKP Production:1995-05 – 1997-10 Spec:U/S 0.25 Fitment:Matches · configuration
11704-16010 BEARING SET, CRANKSHAFT 1
Note:4AFE,7AFE..AT19#..UKP Production:1996-01 – 1997-10 Spec:U/S 0.25 Fitment:Matches · configuration
13265-15030 BOLT, CONNECTING ROD 8
Note:4AFE..AT190..UKP Production:1993-08 – 1997-10 Fitment:Matches · configuration
13201-09050 ROD SUB-ASSY, CONNECTING 4
Note:4AFE..AT190..UKP Production:1993-07 – 1997-10 Fitment:Matches · configuration
90179-09008 NUT, HEXAGON(FOR CONNECTING ROD BOLT) 8
Note:4AFE..AT190..UKP Production:1993-12 – 1997-10 Fitment:Matches · configuration
13521-02030 PULLEY, CRANKSHAFT TIMING 1
Note:7AFE..AT191..UKP;4AFE..AT190..UKP..RHD;4AFE..AT190..UKP..LHD..WG;4AFE..AT190..UKP..LHD..ATM Production:1994-12 – 1997-10 Fitment:Matches · configuration
13566-15020 GUIDE, TIMING BELT 1
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
11011-02020 WASHER SET, CRANKSHAFT THRUST 1
Note:4AFE,7AFE..AT19#..UKP Production:1994-12 – 1997-10 Spec:STD Fitment:Matches · configuration
90105-10042 BOLT, FLYWHEEL SETTING 6
Note:4AFE,7AFE..AT19#..UKP..MTM Production:1992-12 – 1997-10 Fitment:Matches · configuration
90280-05005 KEY(FOR CRANKSHAFT TIMING GEAR) 1
Note:4AFE,7AFE..AT19#..UKP Production:1992-12 – 1997-10 Fitment:Matches · configuration
90250-08120 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:4AFE,7AFE..AT19#..UKP..MTM Production:1992-12 – 1997-10 Spec:L=18,OD=8 Fitment:Matches · configuration
13411-02901 CRANKSHAFT 1
Note:4AFE..AT190..UKP Production:1993-07 – 1997-10 Replacements:13411-16900 (fitment: unknown) Fitment:Matches · configuration
90119-12314 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:4AFE,7AFE..AT19#..UKP Production:1997-01 – 1997-10 Fitment:Matches · configuration
13470-02020 PULLEY, CRANKSHAFT 1
Note:4AFE,7AFE..AT19#..UKP Production:1994-12 – 1997-10 Fitment:Matches · configuration
13453-02030 GEAR, FLYWHEEL RING 1
Note:4AFE,7AFE..AT19#..UKP..MTM Production:1993-08 – 1997-10 Replacements:13453-10010 (fitment: unknown) Fitment:Matches · configuration
13405-02030 FLYWHEEL SUB-ASSY 1
Note:4AFE,7AFE..AT19#..UKP..MTM Production:1993-08 – 1997-10 Fitment:Matches · configuration

Diagram

31 parts

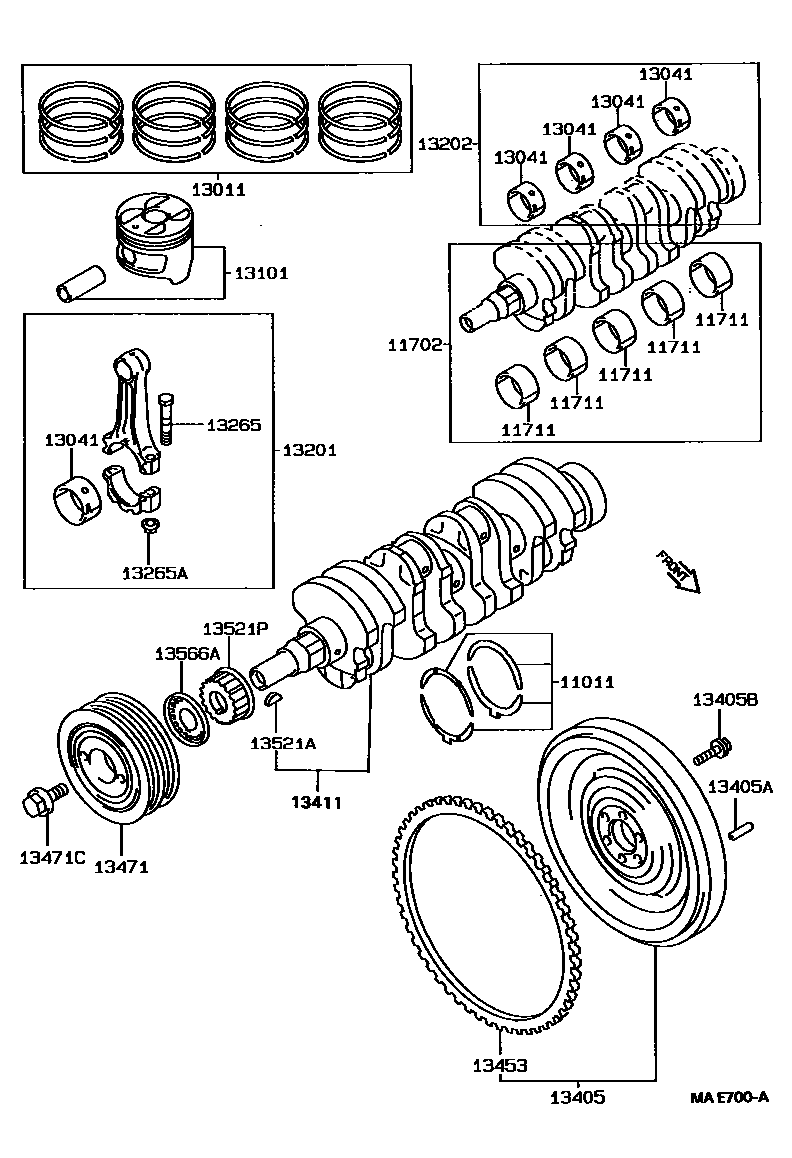

Toyota CARINA-E-UKP 1997 — Crankshaft & Piston
