Open RegionYearModelModelCode Details
General 2013 COROLLA ALTIS ZRE142L-GEXGKH
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: 1.8G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: VIETNAM Color Code: 4R0 Production: 201010-201407 Model Short: ZRE142L-GEXGKH Region: OTHER Native Region: GR

Toyota Corolla-Altis 2013 — Manifold

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90109-06385 JOINT, ENGINE COVER 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
17177-37030 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
90126-08026 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 2
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC Production:2010-07 – … Spec:(J),NO.1 Spec Note:(Japan made),NO.1 Fitment:Matches · configuration
90126-08052 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 5
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:NO.2 Fitment:Matches · configuration
90126-T0003 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 2
Note:2ZRFE..ZRE142..HTWCF;3ZZFE..ZZE141..(16G,LIMO)..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Replacements:90126-08026 (fitment: unknown) Spec:(L),NO.1 Spec Note:(Local made),NO.1 Fitment:Matches · configuration
17138-37010 STAY, INTAKE MANIFOLD 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – 2013-05 Fitment:Matches · configuration
17118-37010 STAY, MANIFOLD 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
17118-0T040 STAY, MANIFOLD 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2012-03 – … Replacements:17118-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
17141-37130 MANIFOLD, EXHAUST 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..IDN,IND,MA,TAIW,VN;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
17141-0T010 MANIFOLD, EXHAUST 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E,18J)..(IDN,TAIW,TH)..HTWC Production:2012-03 – … Replacements:17141-37130 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
17167-37110 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 1
Note:1ZRFE..ZRE141;2ZRFE..ZRE142..6F,CVFC Production:2010-07 – 2014-07 Fitment:Matches · configuration
17168-37100 INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 1
Note:2ZRFE..ZRE142..VN Production:2012-03 – 2014-05 Fitment:Matches · configuration
17168-37100 INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E,18J)..(IDN,TAIW,TH)..HTWC Production:2010-07 – … Fitment:Matches · configuration
17173-37010 GASKET, EXHAUST MANIFOLD TO HEAD 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
17173-0T041 GASKET, EXHAUST MANIFOLD TO HEAD 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH,VN)..HTWC Production:2012-03 – … Replacements:17173-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
17120-37070 MANIFOLD, INTAKE 1
Note:2ZRFE,3ZRFE..ZRE142,143..6F,CVFC Production:2010-07 – 2014-07 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
17120-0T100 MANIFOLD, INTAKE 1
Note:2ZRFE,3ZRFE..ZRE142,143..IDN,MA,PHL,TAIW,TH,VN Production:2012-03 – 2014-07 Replacements:17120-37070 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
95411-49933 standard —
Fitment:Matches · configuration
94151-80800 standard —
Fitment:Matches · configuration
90119-08C87 standard —
Fitment:Matches · configuration
90119-T0277 standard —
Replacements:90119-08C87 (fitment: unknown) Fitment:Matches · configuration
91671-80814 standard —
Fitment:Matches · configuration
90119-T0236 standard —
Replacements:91671-80814 (fitment: unknown) Fitment:Matches · configuration
91551-80825 standard —
Fitment:Matches · configuration
91672-81025 standard —
Fitment:Matches · configuration
90105-T0121 standard —
Replacements:91551-80825 (fitment: unknown) Fitment:Matches · configuration
90178-T0019 standard —
Replacements:94151-80800 (fitment: unknown) Fitment:Matches · configuration
90179-08101 standard —
Fitment:Matches · configuration
90177-08003 standard —
Fitment:Matches · configuration

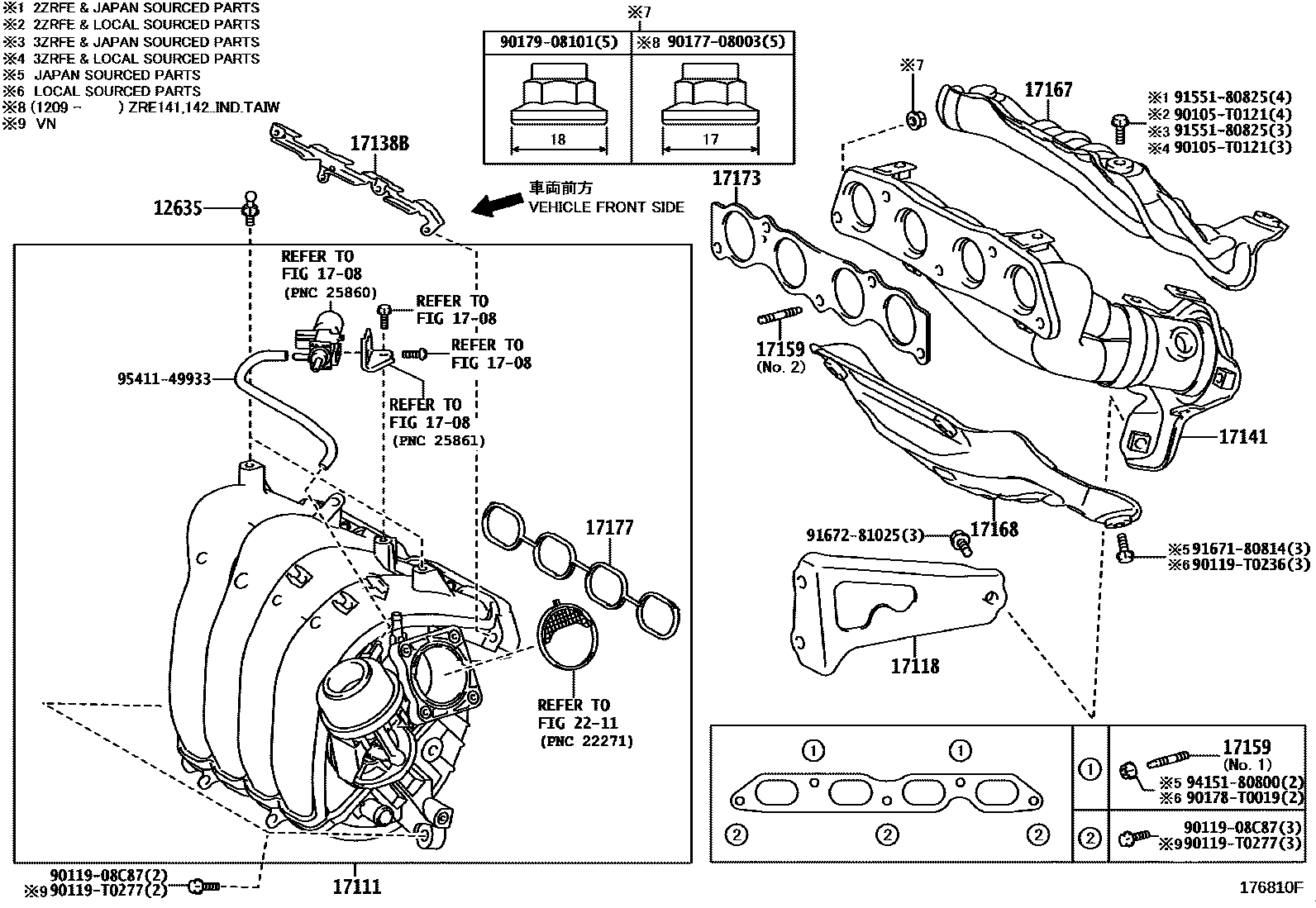

Diagram

29 parts
Toyota Corolla-Altis 2013 — Manifold
