Toyota Limo-Vios 2020 — Fuel Injection System
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 23841-0Y040 | CLAMP, FUEL PIPE, NO.2(FOR EFI) | 1 | |
Note:2NRFE..NSP151 Production:2019-12 – … Replacements:23841-21050 (fitment: unknown) Fitment:Matches · configuration | |||
| 22030-0Y020 | BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | 1 | |
Note:2NRFE..NSP151..CVT Production:2019-12 – 2021-04 Replacements:22030-47060 (fitment: unknown) Spec:TYPE A:REFER ILLUST. Fitment:Matches · configuration | |||
| 22271-0Y030 | GASKET, THROTTLE BODY | 1 | |
Note:2NRFE..NSP151 Production:2019-12 – … Fitment:Matches · configuration | |||
| 23209-09340 | INJECTOR ASSY, FUEL | 4 | |
Note:2NRFE..NSP151 Production:2019-12 – … Fitment:Matches · configuration | |||
| 90301-07042 | RING, O(FOR FUEL INJECTOR) | 4 | |
Note:2NRFE..NSP151 Production:2019-12 – … Fitment:Matches · configuration | |||
| 23291-0Y020 | INSULATOR, INJECTOR VIBRATION | 4 | |
Note:2NRFE..NSP151 Production:2019-12 – … Replacements:23291-23010 (fitment: unknown) Fitment:Matches · configuration | |||
| 23814-0Y010 | PIPE, FUEL DELIVERY | 1 | |
Note:2NRFE..NSP151 Production:2019-12 – … Fitment:Matches · configuration | |||
| 23891-47040 | SPACER, FUEL DELIVERY | 2 | |
Note:2NRFE..NSP151 Production:2019-12 – … Fitment:Matches · configuration | |||
| 23841-0Y050 | CLAMP, FUEL PIPE, NO.1(FOR EFI) | 1 | |
Note:2NRFE..NSP151 Production:2019-12 – … Replacements:23841-36020 (fitment: unknown) Fitment:Matches · configuration | |||
| 23901-0Y170 | TUBE SUB-ASSY, FUEL | 1 | |
Note:2NRFE..NSP151 Production:2019-12 – … Fitment:Matches · configuration | |||
| 90105-T0052 | standard | — | |
Replacements:91551-80625 (fitment: unknown) Fitment:Matches · configuration | |||
| 90105-T0126 | standard | — | |
Replacements:91551-80845 (fitment: unknown) Fitment:Matches · configuration | |||

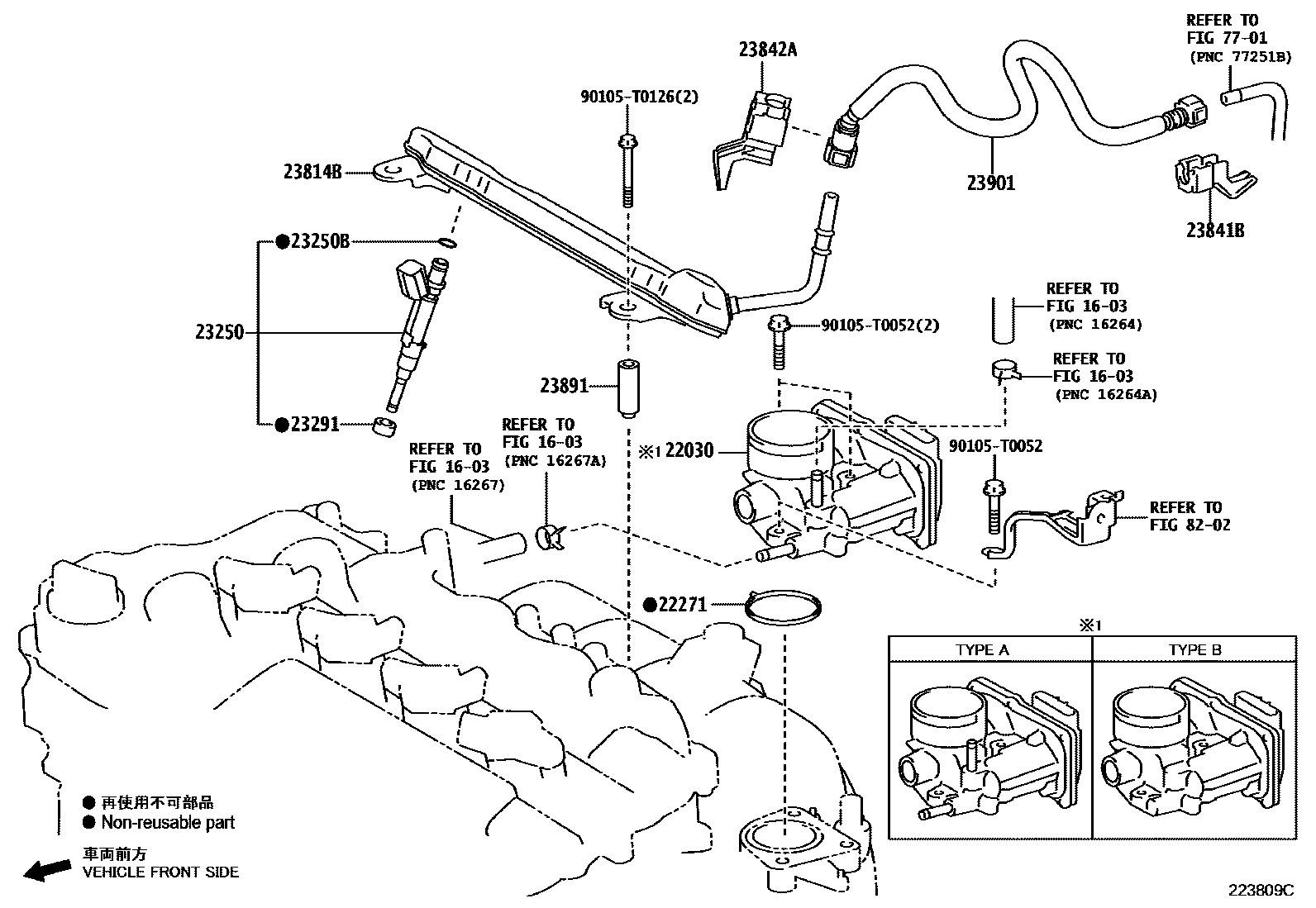

Diagram
12 parts
