Open RegionYearModelModelCode Details
General 2012 COROLLA ALTIS ZRE142L-GEPNKV
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: GLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 040 Trim Code: FH40 Production: 201007-201310 Model Short: ZRE142L-GEPNKV Region: OTHER Native Region: GR

Toyota Corolla-Altis 2012 — Headlamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85661-12010 MOTOR, HEADLAMP LEVELING, RH 1
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
85661-12010 MOTOR, HEADLAMP LEVELING, LH 1
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 81110 —
— Part does not apply to this vehicle configuration. 81150 —
81130-02D20 UNIT ASSY, HEADLAMP, RH 1
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
81130-02D40 UNIT ASSY, HEADLAMP, RH 1
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Fitment:Matches · configuration
81170-02D20 UNIT ASSY, HEADLAMP, LH 1
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
81170-02D40 UNIT ASSY, HEADLAMP, LH 1
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Fitment:Matches · configuration
90075-99120 PACKING, HEADLAMP LEVELING MOTOR BASE 2
Note:ZRE141,142..GCC Production:2010-07 – 2013-10 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
90075-60077 SOCKET, CLEARANCE LAMP 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G) Production:2010-07 – … Fitment:Matches · configuration
90075-60028 SOCKET, FRONT TURN SIGNAL LAMP 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G) Production:2010-07 – … Fitment:Matches · configuration
90981-15021 BULB (FOR FRONT TURN SIGNAL LAMP) 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Spec:12V 21W,AMBER Fitment:Matches · configuration
90981-13047 BULB(FOR HEADLAMP, NO.2) 2
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G)..TH;ZRE142..(18E,18G,18J,E,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,GLI,N,XLI Production:2010-07 – … Spec:12V 51W,HALOGEN Fitment:Matches · configuration
90981-13046 BULB(FOR HEADLAMP, NO.1) 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Spec:12V65W(SAE),60W(ECE) Fitment:Matches · configuration
90075-65006 COVER, HEADLAMP, NO.1 4
Note:NDE140,ZRE141,142..(18E,18G,18J,E,GLI,XLI)..(GCC,IND,TAIW) Production:2010-07 – 2013-12 Fitment:Matches · configuration
99132-12050 BULB(FOR CLEARANCE LAMP) 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Spec:12V 5W Fitment:Matches · configuration
90159-T0009 standard —
Replacements:90159-50311 (fitment: unknown) Fitment:Matches · configuration
90109-06382 standard —
Fitment:Matches · configuration
90189-T0007 standard —
Replacements:90189-05142 (fitment: unknown) Fitment:Matches · configuration
90179-06127 standard —
Fitment:Matches · configuration

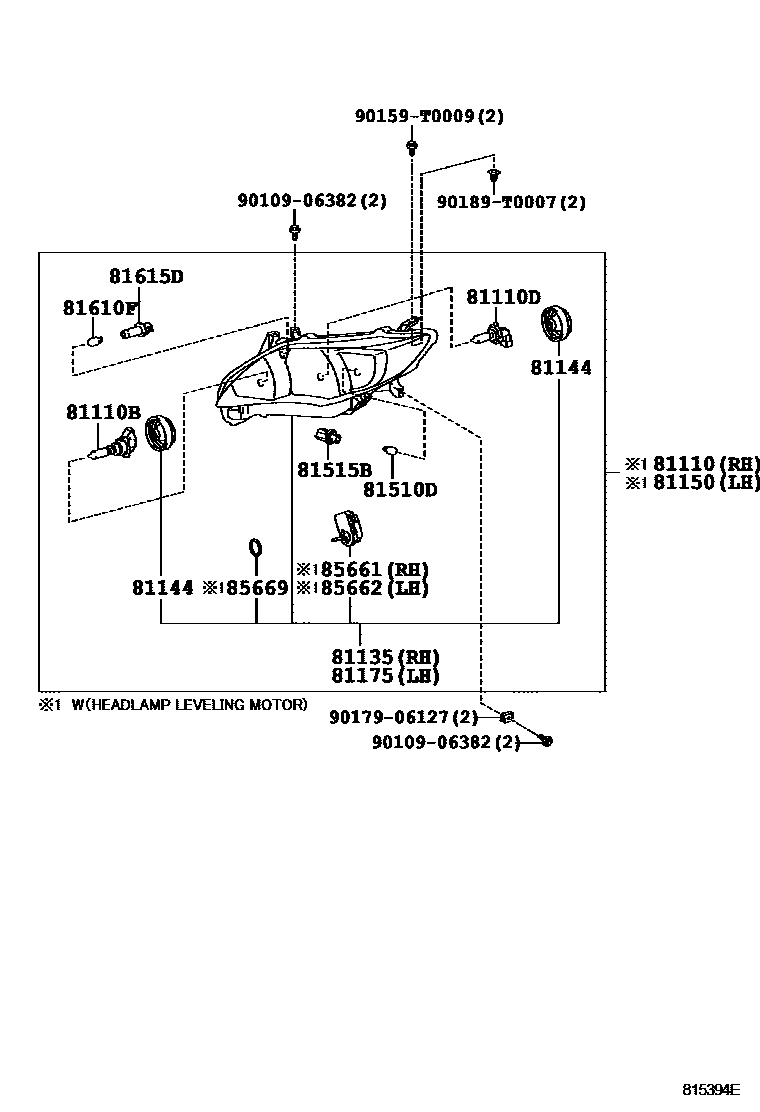

Diagram

18 parts
Toyota Corolla-Altis 2012 — Headlamp
