Open RegionYearModelModelCode Details
General 2009 COROLLA ALTIS ZZE142L-GEPDKV
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: XLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 040 Trim Code: FH40 Production: 200901-201007 Model Short: ZZE142L-GEPDKV Region: OTHER Native Region: GR

Toyota Corolla-Altis 2009 — Mounting

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
12371-0D231 INSULATOR, ENGINE MOUNTING, REAR 1
Note:1ZZFE,3ZZFE..ZZE14#..GCC,TAIW Production:2008-11 – 2010-07 Replacements:12371-22250 (fitment: unknown) Fitment:Matches · configuration
12321-0D081 BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) 1
Note:1ZZFE,3ZZFE..ZZE14#..GCC,TAIW Production:2008-11 – 2010-07 Fitment:Matches · configuration
12361-0D230 INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 1
Note:1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI) Production:2007-12 – 2009-09 Replacements:12361-21100 (fitment: unknown) Fitment:Matches · configuration
12311-0D230 BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 1
Note:1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI) Production:2007-12 – 2010-07 Replacements:12311-22270 (fitment: unknown) Fitment:Matches · configuration
12315-0D060 BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 1
Note:1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI) Production:2007-12 – 2010-07 Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
12315-22050 BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 1
Note:1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI) Production:2007-12 – 2010-07 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
13570-22010 IDLER ASSY, V-RIBBED, NO.1 1
Note:1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI) Production:2007-12 – 2010-07 Fitment:Matches · configuration
12305-0D150 INSULATOR SUB-ASSY, ENGINE MOUNTING, RH 1
Note:1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI) Production:2008-06 – 2010-07 Replacements:12305-22380 (fitment: unknown) Fitment:Matches · configuration
12325-0D120 BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 1
Note:1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI) Production:2007-12 – 2010-07 Replacements:12325-22320 (fitment: unknown) Fitment:Matches · configuration
12351-0D090 DAMPER, ENGINE MOUNTING 1
Note:1ZZFE,3ZZFE..ZZE14#..GCC,TAIW Production:2008-11 – 2010-07 Replacements:12351-27050 (fitment: unknown) Fitment:Matches · configuration
12372-0D180 INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 1
Note:1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI) Production:2007-12 – 2010-07 Replacements:12372-22200 (fitment: unknown) Fitment:Matches · configuration
90179-10176 standard —
Fitment:Matches · configuration
90119-10904 standard —
Fitment:Matches · configuration
90105-12153 standard —
Fitment:Matches · configuration
90105-10301 standard —
Fitment:Matches · configuration
90105-T0094 standard —
Fitment:Matches · configuration
90119-10866 standard —
Fitment:Matches · configuration
90119-10818 standard —
Fitment:Matches · configuration
94151-21241 standard —
Fitment:Matches · configuration
90178-12018 standard —
Fitment:Matches · configuration
90105-12339 standard —
Fitment:Matches · configuration
90105-10469 standard —
Fitment:Matches · configuration
90179-10173 standard —
Fitment:Matches · configuration
90440-18010 standard —
Fitment:Matches · configuration
90105-10206 standard —
Fitment:Matches · configuration
90105-10422 standard —
Fitment:Matches · configuration
90179-10108 standard —
Fitment:Matches · configuration
90178-10029 standard —
Fitment:Matches · configuration
90179-08068 standard —
Fitment:Matches · configuration
90105-10494 standard —
Fitment:Matches · configuration
90105-10536 standard —
Fitment:Matches · configuration

Diagram

31 parts

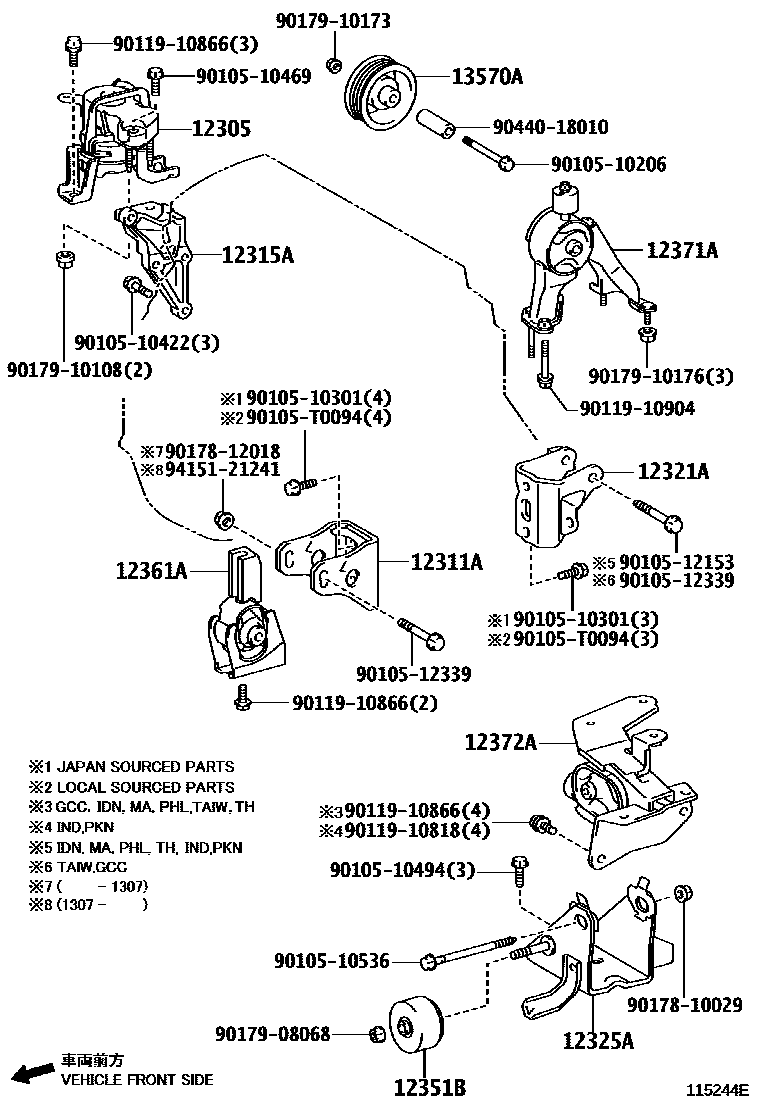

Toyota Corolla-Altis 2009 — Mounting
