Open RegionYearModelModelCode Details
General 2009 COROLLA ALTIS ZZE142L-GEPDKV
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: XLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 040 Trim Code: FH40 Production: 200901-201007 Model Short: ZZE142L-GEPDKV Region: OTHER Native Region: GR

Toyota Corolla-Altis 2009 — Headlamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 81107 —
— Part does not apply to this vehicle configuration. 81108 —
— Part does not apply to this vehicle configuration. 81110L —
90981-15021 BULB (FOR FRONT TURN SIGNAL LAMP) 2
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Spec:12V 21W,AMBER Fitment:Matches · configuration
90075-60077 SOCKET, CLEARANCE LAMP 2
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Fitment:Matches · configuration
99132-12050 BULB(FOR CLEARANCE LAMP) 2
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Spec:12V 5W Fitment:Matches · configuration
90075-60028 SOCKET, FRONT TURN SIGNAL LAMP 2
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Fitment:Matches · configuration
90981-13046 BULB(FOR HEADLAMP, NO.1) 2
Note:ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) Production:2007-12 – 2010-07 Spec:12V65W(SAE),60W(ECE) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 81139 —
90075-65006 COVER, HEADLAMP, NO.1 4
Note:ZZE14#..4FC..(18J,GLI,XLI) Production:2007-12 – 2010-07 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 81125 —
81130-02A00 UNIT ASSY, HEADLAMP, RH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
81130-02A10 UNIT ASSY, HEADLAMP, RH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
81170-02A00 UNIT ASSY, HEADLAMP, LH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
81170-02A10 UNIT ASSY, HEADLAMP, LH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 81110 —
— Part does not apply to this vehicle configuration. 81150 —
90981-13047 BULB(FOR HEADLAMP, NO.2) 2
Note:ZZE14#..4FC..(18J,GLI,XLI) Production:2007-12 – 2010-07 Spec:12V 51W,HALOGEN Fitment:Matches · configuration
90075-99120 PACKING, HEADLAMP LEVELING MOTOR BASE 2
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
85661-0P010 MOTOR, HEADLAMP LEVELING, RH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-02 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
85661-0P010 MOTOR, HEADLAMP LEVELING, LH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-02 Spec:HEAD LAMP LEVELING DEVICE-WITH(MANUAL) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 81134 —
81193-12050 RETAINER, HEADLAMP PROTECTOR, UPPER RH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
81194-12050 RETAINER, HEADLAMP PROTECTOR, UPPER LH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
81195-12060 RETAINER, HEADLAMP PROTECTOR, LOWER RH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
81196-12060 RETAINER, HEADLAMP PROTECTOR, LOWER LH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
81197-12060 BRACKET, HEADLAMP, LOWER RH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
81198-12060 BRACKET, HEADLAMP, LWR LH 1
Note:ZZE14#..GCC Production:2009-01 – 2010-07 Fitment:Matches · configuration
90075-02727 standard —
Fitment:Matches · configuration
90109-06382 standard —
Fitment:Matches · configuration
90159-50311 standard —
Fitment:Matches · configuration
90189-05142 standard —
Fitment:Matches · configuration
90179-06127 standard —
Fitment:Matches · configuration

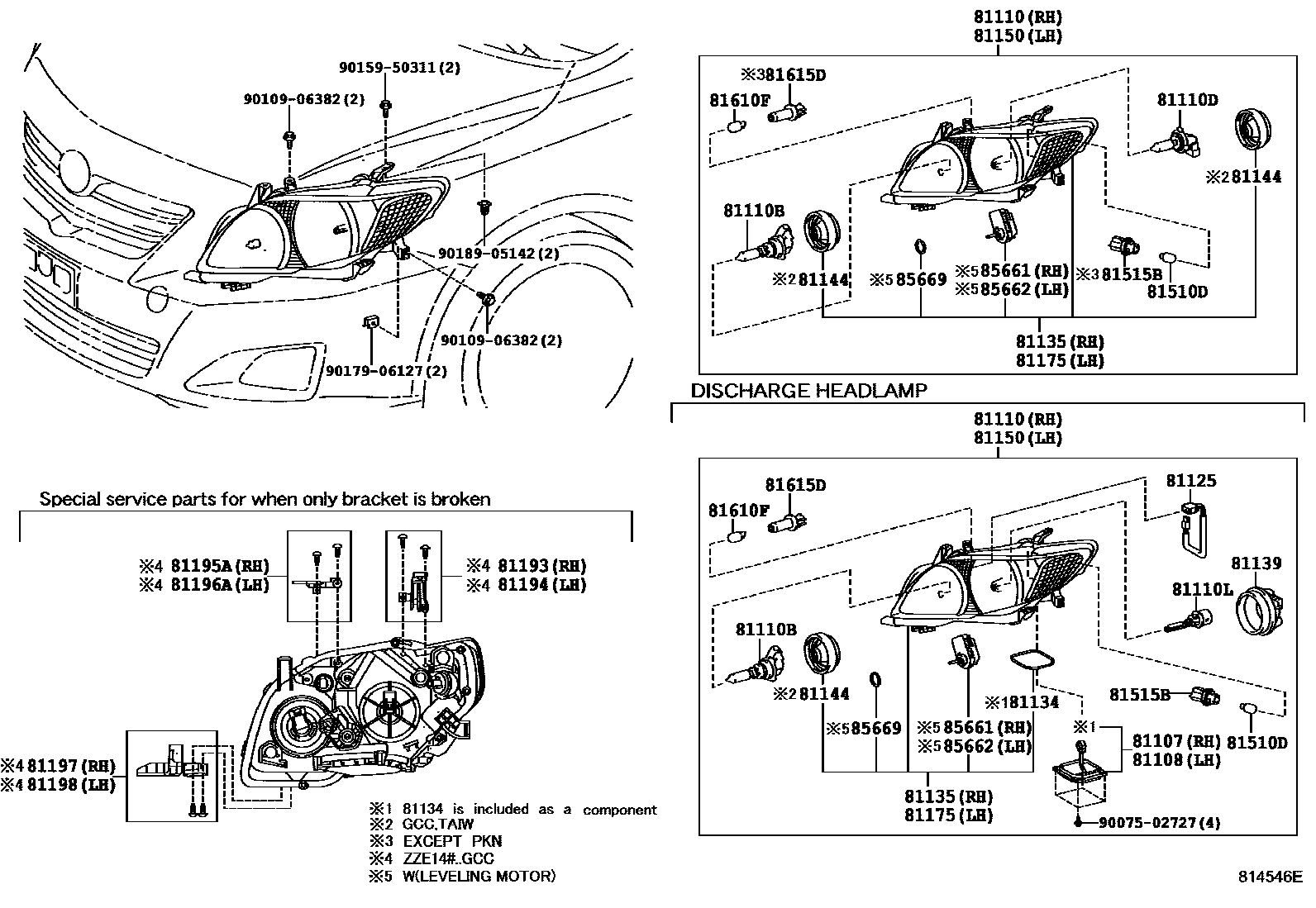

Diagram

25 parts
Toyota Corolla-Altis 2009 — Headlamp
