Europe 2004 COROLLA VERSO ZNR11L-GRGEKW
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: SOL TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 1C0 Trim Code: FC11 Production: 200402-200705 Model Short: ZNR11L-GRGEKW Region: EU Native Region: EU

Toyota Corolla-Verso 2004 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13101-0D061 PISTON SUB-ASSY, W/PIN 4
Note:1ZZFE..ZNR11 Production:2004-02 – 2005-05 Replacements:13101-0D062 (fitment: unknown) Spec:STD
90520-20064 RING, HOLE SNAP(FOR PISTON PIN) 8
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05
13201-29038 ROD SUB-ASSY, CONNECTING 4
Note:1ZZFE..ZNR11 Production:2004-02 – 2004-07 Replacements:13201-29176 (fitment: unknown)
90999-73140 BUSH(FOR CONNECTING ROD SMALL END) 4
Note:1ZZFE..ZNR11..07S;3ZZFE..ZNR10..RHD;3ZZFE..ZNR10..LHD..07S;3ZZFE..ZNR10..LHD..05S..TERRA Production:2004-02 – 2007-05
13041-0D041-01 BEARING, CONNECTING ROD 4
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:13041-0D042-01 (fitment: unknown) Spec:MARK 1,(L):REFER R/M Spec Note:MARK 1,(Local made):REFER R/M
13041-0D041-02 BEARING, CONNECTING ROD 4
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:13041-0D042-02 (fitment: unknown) Spec:MARK 2,(L):REFER R/M Spec Note:MARK 2,(Local made):REFER R/M
13041-0D041-03 BEARING, CONNECTING ROD 4
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:13041-0D042-03 (fitment: unknown) Spec:MARK 3,(L):REFER R/M Spec Note:MARK 3,(Local made):REFER R/M
13041-22023-01 BEARING, CONNECTING ROD 4
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:13041-22024-01 (fitment: unknown) Spec:MARK 1,(J):REFER R/M Spec Note:MARK 1,(Japan made):REFER R/M
13041-22023-02 BEARING, CONNECTING ROD 4
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:13041-22024-02 (fitment: unknown) Spec:MARK 2,(J):REFER R/M Spec Note:MARK 2,(Japan made):REFER R/M
13041-22023-03 BEARING, CONNECTING ROD 4
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:13041-22024-03 (fitment: unknown) Spec:MARK 3,(J):REFER R/M Spec Note:MARK 3,(Japan made):REFER R/M
13265-22020 BOLT, CONNECTING ROD 8
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Replacements:13265-22040 (fitment: unknown)
13204-22023 BEARING SET, CONNECTING ROD 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:13204-22024 (fitment: unknown) Spec:U/S 0.25
13011-0D080 RING SET, PISTON 1
Note:1ZZFE..ZNR11 Production:2004-02 – 2004-10 Replacements:13011-22210 (fitment: unknown) Spec:STD,(L) Spec Note:STD,(Local made)
13011-22210 RING SET, PISTON 1
Note:1ZZFE..ZNR11 Production:2004-02 – 2004-10 Replacements:13011-22220 (fitment: unknown) Spec:STD,(J) Spec Note:STD,(Japan made)
11701-0D020-01 BEARING, CRANKSHAFT 5
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:11701-0D021-01 (fitment: unknown) Spec:MARK 1,(L):REFER R/M Spec Note:MARK 1,(Local made):REFER R/M
11701-0D020-02 BEARING, CRANKSHAFT 5
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:11701-0D021-02 (fitment: unknown) Spec:MARK 2,(L):REFER R/M Spec Note:MARK 2,(Local made):REFER R/M
11701-0D020-03 BEARING, CRANKSHAFT 5
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:11701-0D021-03 (fitment: unknown) Spec:MARK 3,(L):REFER R/M Spec Note:MARK 3,(Local made):REFER R/M
11701-0D020-04 BEARING, CRANKSHAFT 5
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:11701-0D021-04 (fitment: unknown) Spec:MARK 4,(L):REFER R/M Spec Note:MARK 4,(Local made):REFER R/M
11701-22010-01 BEARING, CRANKSHAFT 5
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:11701-22011-01 (fitment: unknown) Spec:MARK 1,(J):REFER R/M Spec Note:MARK 1,(Japan made):REFER R/M
11701-22010-02 BEARING, CRANKSHAFT 5
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:11701-22011-02 (fitment: unknown) Spec:MARK 2,(J):REFER R/M Spec Note:MARK 2,(Japan made):REFER R/M
11701-22010-03 BEARING, CRANKSHAFT 5
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:11701-22011-03 (fitment: unknown) Spec:MARK 3,(J):REFER R/M Spec Note:MARK 3,(Japan made):REFER R/M
11701-22010-04 BEARING, CRANKSHAFT 5
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2004-07 Replacements:11701-22011-04 (fitment: unknown) Spec:MARK 4,(J):REFER R/M Spec Note:MARK 4,(Japan made):REFER R/M
11791-0D020 WASHER, CRANKSHAFT THRUST, UPPER 2
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Replacements:11791-22020 (fitment: unknown) Spec:STD,(L) Spec Note:STD,(Local made)
11791-22020 WASHER, CRANKSHAFT THRUST, UPPER 2
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Spec:STD,(J) Spec Note:STD,(Japan made)
90119-12127 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05
13470-0D040 PULLEY, CRANKSHAFT 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Replacements:13470-22041 (fitment: unknown) Spec:TYPE A:REFER ILLUST.
13470-22021 PULLEY, CRANKSHAFT 1
Note:1ZZFE..ZNR11 Production:2004-02 – 2007-05 Spec:TYPE B:REFER ILLUST.
19315-22020 PLATE, CRANK ANGLE SENSOR, NO.1 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05
13521-0D020 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Replacements:13521-22020 (fitment: unknown) Spec:(L) Spec Note:(Local made)
13521-22020 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Spec:(J) Spec Note:(Japan made)
95161-30416 KEY(FOR CRANKSHAFT TIMING GEAR) 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05
13401-22010 CRANKSHAFT 1
Note:1ZZFE..ZNR11 Production:2004-02 – 2007-05
13451-22020 FLYWHEEL SUB-ASSY 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-03 Replacements:13405-22020 (fitment: unknown) Spec:TYPE B:REFER ILLUST.
13405-0D020 FLYWHEEL SUB-ASSY 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Replacements:13405-22020 (fitment: unknown) Spec:(L),T/P A:REF.ILLUST Spec Note:(Local made),T/P A:REF.ILLUST
13453-10010 GEAR, FLYWHEEL RING 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05
90910-02103 BOLT, FLYWHEEL SETTING 8
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05
90250-08120 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Spec:L=18,OD=8
11704-22011 BEARING SET, CRANKSHAFT 1
Note:1ZZFE,3ZZFE..ZNR1# Production:2004-02 – 2007-05 Spec:U/S 0.25

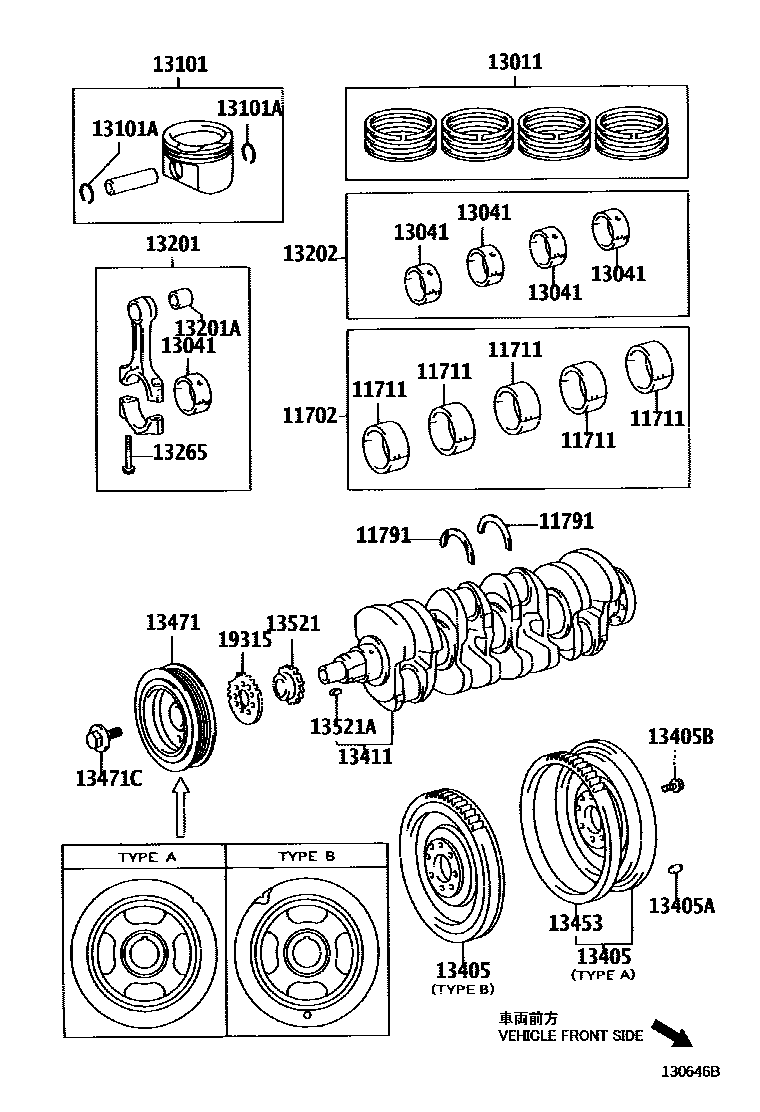

Diagram

38 parts
Toyota Corolla-Verso 2004 — Crankshaft & Piston
