USA / Canada 2011 HILUX KUN26R-PRPSYT
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: ATM, 4-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: FOR THAILAND Doors Description: DOUBLE CAB Color Code: 040 Trim Code: LC40 Production: 201107-201504 Model Short: KUN26R-PRPSYT Region: NA Native Region: US

Toyota Hilux 2011 — Vacuum Pump

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
29300-0L010 PUMP ASSY, VACUUM 1
Note:2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH Production:2011-07 – 2016-09 Replacements:29300-67020 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
29300-67020 PUMP ASSY, VACUUM 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
29351-67020 GEAR, VACUUM PUMP 1
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10
29342-58010 RING, O 1
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10
90099-10185 BEARING, VACUUM PUMP 1
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10
29303-67020 ROTOR SUB-ASSY, VACUUM PUMP 1
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10
29336-58050 SHAFT, VACUUM PUMP 1
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10
29331-67020 BLADE, VACUUM PUMP, A 5
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10
29311-76010 PIN, VACUUM PUMP DOWEL, NO.1 2
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10
29364-66010 WASHER, VACUUM PUMP 1
Note:1KDFTV,2KDFTV,5LE..KUN1#,2#,3#,LAN15,25,35 Production:2011-07 – 2016-10
29369-64030 VALVE SUB-ASSY, CHECK 1
Note:1KDFTV,2KDFTV,5LE..KUN1#,2#,3#,LAN15,25,35 Production:2011-07 – 2016-10
29342-67020 PACKING, VACUUM PUMP 1
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10
90560-T0019 standard —
Replacements:90201-14099 (fitment: unknown)
90179-08184 standard —
90401-09001 standard —
Replacements:90401-09003 (fitment: unknown)
95161-10413 standard —
90096-90031 standard —
90099-04577 standard —
90099-05185 standard —
29342-68010 standard —
90178-T0074 standard —
Replacements:90179-08184 (fitment: unknown)

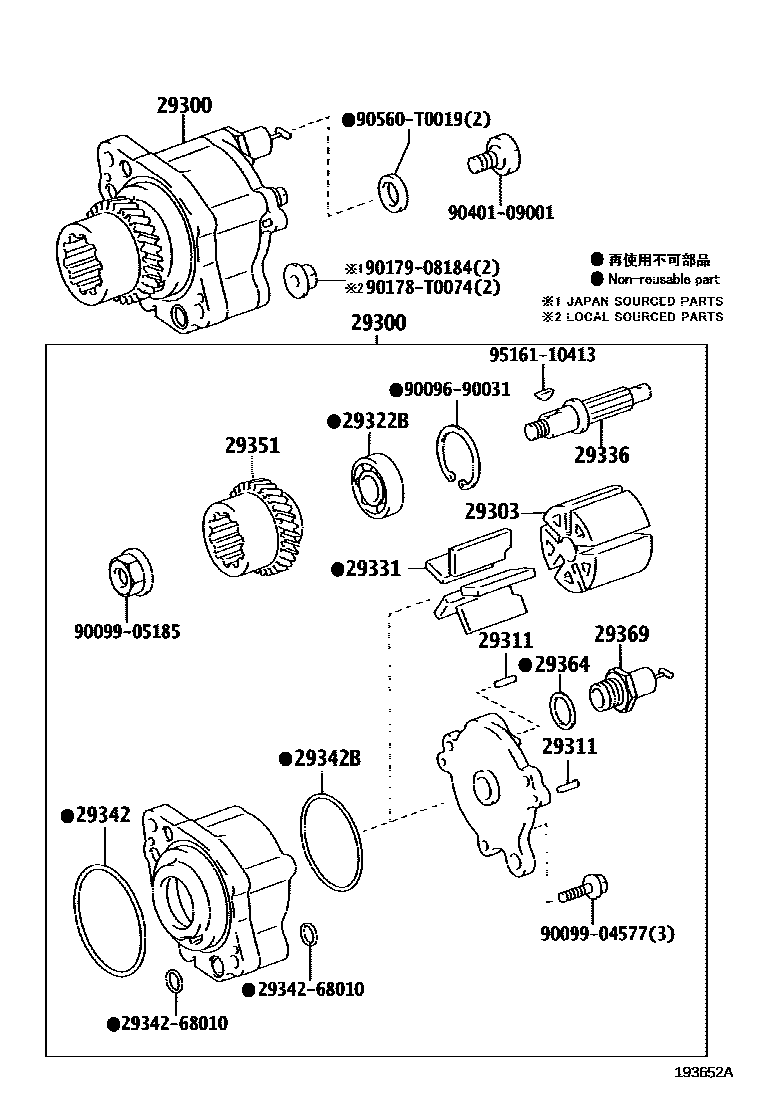

Diagram

21 parts
Toyota Hilux 2011 — Vacuum Pump
