Toyota Hilux 2013 — Mounting
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 12361-30150 | INSULATOR, ENGINE MOUNTING, FRONT | 2 | |
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION) | |||
| 12381-30080 | STABILIZER, ENGINE MOUNTING | 1 | |
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION) | |||
| 12315-0L020 | BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | 1 | |
Note:2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26,36..5F..(PHL,SA);2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH) Production:2011-07 – 2016-09 Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****) | |||
| 12315-67011 | BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | 1 | |
Note:2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX) | |||
| 12382-30070 | STABILIZER, ENGINE MOUNTING, LH | 1 | |
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION) | |||
| 12371-0L120 | INSULATOR, ENGINE MOUNTING, REAR NO.1 | 1 | |
Note:1KDFTV,2KDFTV..KUN2#..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION) | |||
| 12311-0L020 | BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | 1 | |
Note:2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26,36..5F..(PHL,SA);2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH) Production:2011-07 – 2016-09 Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****) | |||
| 12311-67021 | BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | 1 | |
Note:2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX) | |||
| 12582-30011 | INSULATOR, CYLINDER BLOCK, NO.2 | 1 | |
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2012-01 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION),*360 Spec Note:CHILE SPEC(EURO 5 REGULATION),*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX) | |||
| — | Part does not apply to this vehicle configuration. | 12321 | — |
| 90178-T0050 | standard | — | |
Replacements:94151-21001 (fitment: unknown) | |||
| 90105-T0191 | standard | — | |
Replacements:91553-11020 (fitment: unknown) | |||
| 90178-T0068 | standard | — | |
Replacements:90179-12127 (fitment: unknown) | |||
| 90105-T0073 | standard | — | |
Replacements:91552-81025 (fitment: unknown) | |||
| 90119-T0301 | standard | — | |
Replacements:91671-J0816 (fitment: unknown) | |||
| 90179-12127 | standard | — | |
| 91552-81025 | standard | — | |
| 91551-80814 | standard | — | |
| 90119-T0511 | standard | — | |
| 90105-T0118 | standard | — | |
Replacements:91551-80814 (fitment: unknown) | |||
| 90119-T0237 | standard | — | |
Replacements:91671-80816 (fitment: unknown) | |||
| 91671-K0835 | standard | — | |
| 90119-T0417 | standard | — | |

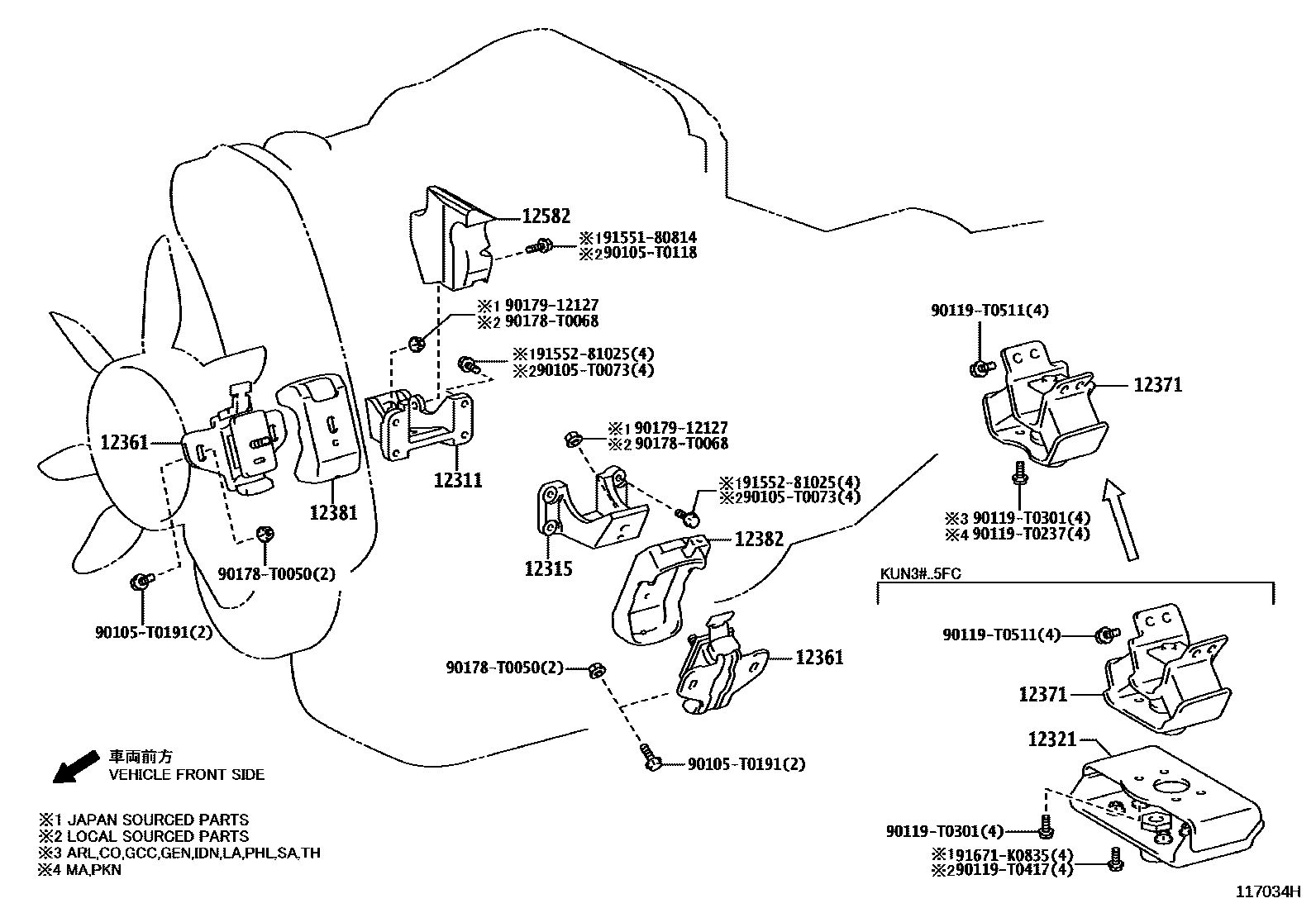

Diagram
22 parts
