Toyota Hilux 2014 — Rear Combination Lamp
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 81551-0K140 | LENS, REAR COMBINATION LAMP, RH | 1 | |
Note:GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU Production:2011-07 – 2016-09 | |||
| 81561-0K150 | LENS, REAR COMBINATION LAMP, LH | 1 | |
Note:KUN15..RHD..(GEN,PKN,TH)..CBU;KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN15..LHD..SCB..DCR..(GCC,GEN)..CBU;GGN15,25,KUN10,16,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU Production:2011-07 – 2016-09 | |||
| 81550-0K140 | LAMP ASSY, REAR COMBINATION, RH | 1 | |
Note:GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU Production:2011-07 – 2016-09 | |||
| 81560-0K150 | LAMP ASSY, REAR COMBINATION, LH | 1 | |
Note:KUN15..RHD..(GEN,PKN,TH)..CBU;KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN15..LHD..SCB..DCR..(GCC,GEN)..CBU;GGN15,25,KUN10,16,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU Production:2011-07 – 2016-09 | |||
| 81555-0K140 | SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | 1 | |
Note:GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU Production:2011-07 – 2016-09 | |||
| 81555-0K140 | SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | 1 | |
Note:KUN15..RHD..(GEN,PKN,TH)..CBU;KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN15..LHD..SCB..DCR..(GCC,GEN)..CBU;GGN15,25,KUN10,16,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU Production:2011-07 – 2016-09 | |||
| 99132-21210 | BULB, TAIL & STOP LAMP | 2 | |
Note:KUN26..4FC..IV3;GGN15,25,35,KUN10,36,LAN15,25,35,TGN10,11,15,26..DLX,SR;KUN15,16,2#,35,TGN16,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)..CBU Production:2011-07 – … | |||
| 90981-WF005 | BULB, REAR TURN SIGNAL LAMP | 2 | |
Note:GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU Production:2012-05 – 2016-09 Replacements:90981-15009 (fitment: unknown) | |||
| 99132-11210 | BULB, BACK UP LAMP | 2 | |
Note:KUN26..4FC..IV3;KUN15..RHD..(DLX,SR);KUN15..LHD..(DCB,XTR);KUN15..LHD..SCB..DCR..CBU;GGN15,25,35,KUN10,36,LAN15,25,35,TGN10,11,15,26..DLX,SR;KUN16,2#,35,TGN16,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)..CBU Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 81550Q | — |
| 90119-T0147 | standard | — | |
Replacements:90119-06754 (fitment: unknown) | |||
| 90467-T0006 | standard | — | |
Replacements:90467-09112 (fitment: unknown) | |||
| 90467-T0005 | standard | — | |
Replacements:90467-09075 (fitment: unknown) | |||

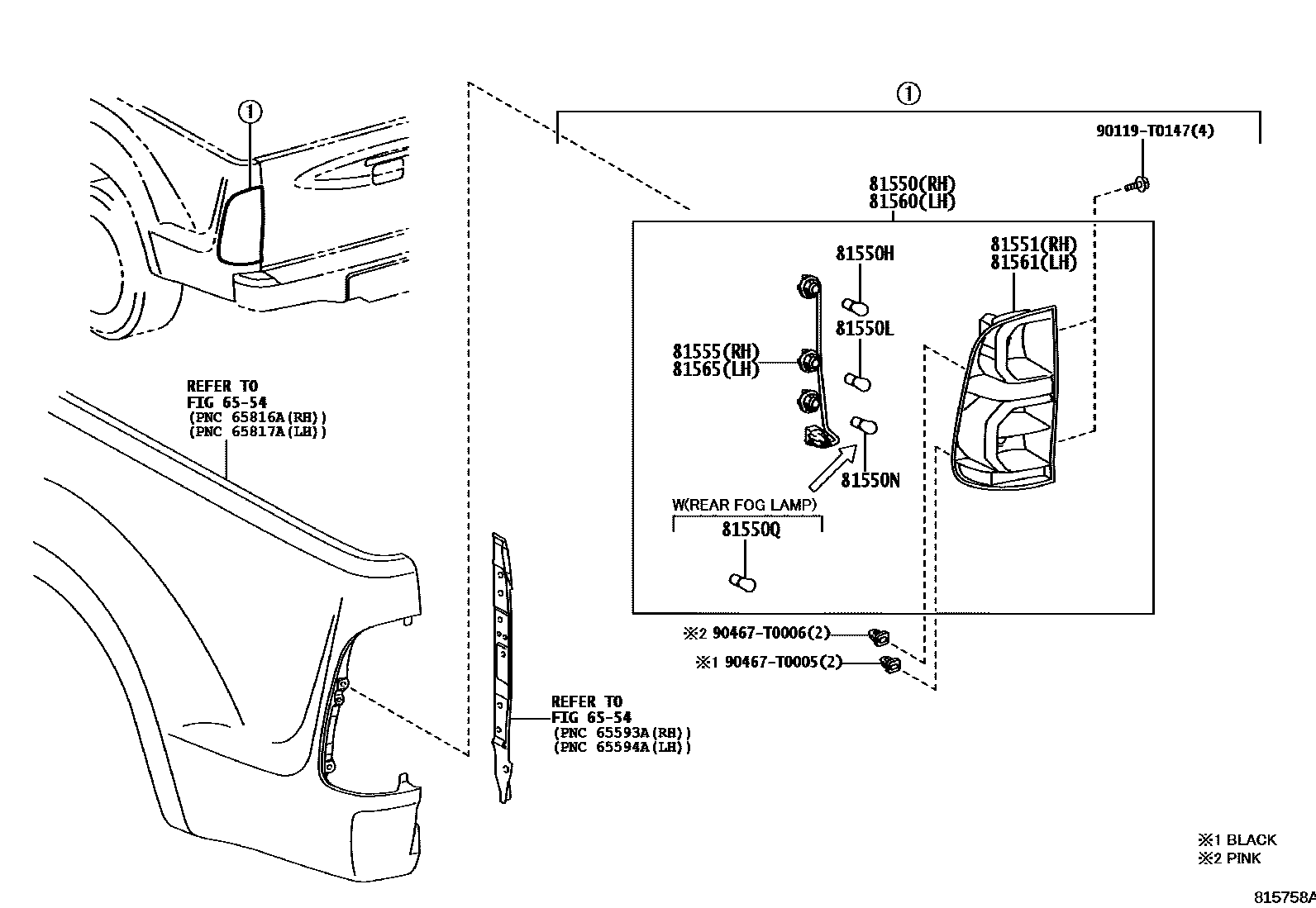

Diagram
12 parts
