Open RegionYearModelModelCode Details
USA / Canada 2014 HILUX TGN16L-PRPSKV
Catalog: TOYOTA202608 Engine: 2700CC 16-VALVE DOHC EFI Transmission Description: ATM, 4-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: DOUBLE CAB Color Code: 040 Trim Code: FR30 Production: 201107-201504 Model Short: TGN16L-PRPSKV Region: NA Native Region: US

Toyota Hilux 2014 — Battery & Battery Cable

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28800-0C120 BATTERY 1
Note:2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH Production:2011-07 – 2015-04 Spec:55D23L,YUASA
28800-0C191 BATTERY 1
Note:2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH Production:2013-01 – 2015-04 Spec:55D23L,FURUKAWA
82821-0K070 COVER, CONNECTOR(FOR BATTERY TERMINAL) 1
Note:1TRFE,2TRFE..TGN1#,26..GCC,IDN;2KDFTV..KUN25,35..(4FC,5FC)..(GEN,IDN,MA,PHL,PKN,TH) Production:2011-07 – 2016-01 Spec:P/N LABEL=828210K070
82821-0K030 COVER, CONNECTOR(FOR BATTERY TERMINAL) 1
Note:1TRFE,2TRFE..TGN1#,26..GCC,IDN;2KDFTV..KUN25,35..(4FC,5FC)..(GEN,IDN,MA,PHL,PKN,TH) Production:2011-07 – 2016-09 Spec:P/N LABEL=828210K030
90982-05056 TERMINAL, BATTERY POSITIVE 1
Note:1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE A:REFER ILLUST.
90982-05066 TERMINAL, BATTERY POSITIVE 1
Note:1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE B:REFER ILLUST.
90982-06059 TERMINAL, BATTERY NEGATIVE 1
Note:1GRFE,1KDFTV,2KDFTV..GGN15,25,35,KUN1#,25..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN26,3#,LAN15,25,35,TGN1#,26,36..DCB,SCB,SMT,THDCB,XTR Production:2011-07 – …
90178-T0019 standard —
Replacements:94151-80800 (fitment: unknown)

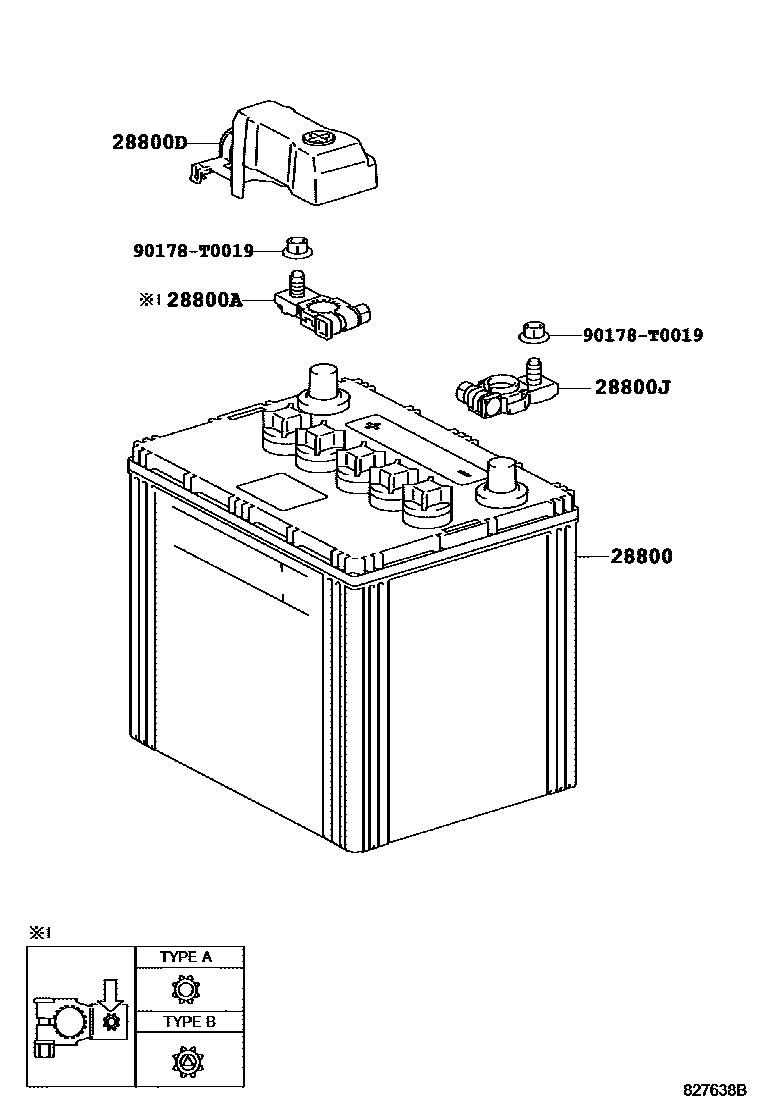

Diagram

8 parts
Toyota Hilux 2014 — Battery & Battery Cable
