Toyota Hilux 2014 — Roof Panel & Back Panel
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 56115-02020 | STOPPER, BACK WINDOW GLASS, NO.1 | 2 | |
Note:KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Replacements:56115-30100 (fitment: unknown) | |||
| 64810-0K020 | WINDOW ASSY, BACK | 1 | |
Note:TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC Production:2011-07 – 2015-12 Replacements:64810-0K080 (fitment: unknown) | |||
| 75571-0K040 | MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1 | 1 | |
Note:TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC Production:2011-07 – 2015-12 | |||
| 75575-0K010 | MOULDING, BACK WINDOW, OUTSIDE LOWER | 1 | |
Note:TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC Production:2011-07 – 2015-12 | |||
| 56116-02020 | STOPPER, BACK WINDOW GLASS, NO.2 | 2 | |
Note:KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Replacements:56116-22050 (fitment: unknown) | |||
| 63111-0K020 | PANEL, ROOF | 1 | |
Note:GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) Production:2011-07 – … | |||
| 69370-0K010 | LOCK ASSY, BACK WINDOW | 1 | |
Note:TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC Production:2011-07 – 2015-12 | |||
| 69374-0K010 | CATCH, BACK WINDOW LOCK | 1 | |
Note:TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC Production:2011-07 – 2015-12 | |||
| 63102-0K040 | PANEL, WINDSHIELD HEADER, INNER | 1 | |
Note:KUN15..SR;TGN16..DCB;KUN15..DCB..DLX..(GCC,GEN,PHL,SA);GGN15,25,35,KUN16,2#,3#,LAN15,25,35,TGN15,26,36..(DCB,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH) Production:2011-07 – … | |||
| 63135-0K011 | FRAME, BACK DOOR OPENING, LOWER | 1 | |
Note:KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH Production:2011-07 – … | |||
| 63141-0K011 | REINFORCEMENT, ROOF PANEL, CENTER | 1 | |
Note:GGN15,25..DCB,XTR;GGN35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) Production:2011-07 – … | |||
| 63142-0K011 | REINFORCEMENT, ROOF PANEL, NO.2 | 1 | |
Note:GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) Production:2011-07 – … | |||
| 64101-0K050 | PANEL, BACK | 1 | |
Note:GGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..4FC..ARL..CBU;KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(GCC,GEN,IDN,PHL,TH) Production:2012-08 – 2016-09 | |||
| 64811-0K130 | GLASS, BACK WINDOW | 1 | |
Note:TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC Production:2011-07 – 2015-12 Replacements:64811-0K280 (fitment: unknown) | |||
| 64812-0K010 | WEATHERSTRIP, BACK WINDOW GLASS | 1 | |
Note:TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN10,15,25,TGN1#,26..GCC Production:2011-07 – 2015-12 | |||
| — | Part does not apply to this vehicle configuration. | 64813D | — |
| — | Part does not apply to this vehicle configuration. | 64818 | — |

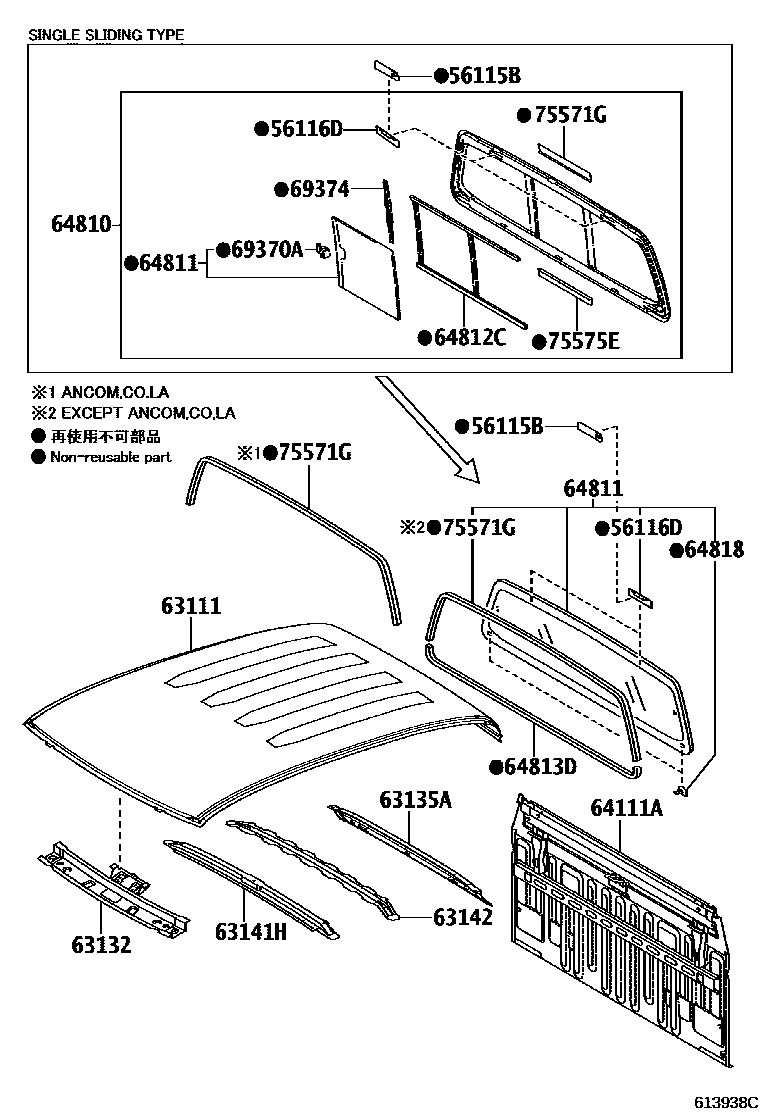

Diagram
15 parts
