USA / Canada 2014 HILUX KUN35L-PRMSHM
Catalog: TOYOTA202608 Engine: 2500CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: PHILIPPINES Doors Description: DOUBLE CAB Color Code: 1C0 Trim Code: FD40 Production: 201107-201504 Model Short: KUN35L-PRMSHM Region: NA Native Region: US

Toyota Hilux 2014 — Exhaust Pipe

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
17401-0L030 PIPE ASSY, EXHAUST, FRONT 1
Note:2KDFTV..KUN35..5F..PHL Production:2012-08 – 2016-01 Spec:*114=TOYOTA/AB5/Y Spec Note:*114(CATALYST MAKE/CATALYSTID/ONBOARD DIAGNOSIS:YES OR NO(THIS INDICATION COMPLIES WITH EC DIRECTIVE.))=TOYOTA/AB5/Y
90917-T6002 GASKET, EXHAUST PIPE 1
Note:2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH Production:2011-07 – …
17451-0L010 GASKET, EXHAUST PIPE 1
Note:2KDFTV..KUN35..LHD..GEN;1KDFTV,2KDFTV..KUN1#,2#,36;2KDFTV..KUN35..CO,LA,PHL,SA,TH Production:2011-07 – 2016-09 Replacements:17451-67020 (fitment: unknown)
17403-0L120 PIPE ASSY, EXHAUST, CENTER 1
Note:1KDFTV..KUN26..4FC..TH;2KDFTV..KUN25,35..IDN,PHL;1KDFTV..KUN16,26,36..(4FC,5F)..(GEN,MA,PHL) Production:2012-08 – 2016-01
90917-T6002 GASKET, EXHAUST PIPE, CENTER 1
Note:1GRFE..GGN15,25;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH Production:2011-07 – …
17405-0L111 PIPE ASSY, EXHAUST, TAIL 1
Note:2KDFTV..KUN35..SR..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE..KUN1#,2#,36,LAN15,25,35..(DCB,SADCB,SCB,SMT,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2016-09
17565-0M010 SUPPORT, EXHAUST PIPE, NO.3 1
Note:2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH Production:2011-07 – 2016-09 Replacements:17565-74280 (fitment: unknown)
17565-0M010 SUPPORT, EXHAUST PIPE, NO.4 3
Note:1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH Production:2011-07 – 2016-09 Replacements:17565-74280 (fitment: unknown)
17565-0M010 SUPPORT, EXHAUST PIPE, NO.5 1
Note:1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH Production:2011-07 – 2016-09 Replacements:17565-74280 (fitment: unknown)
90080-50392 standard —
Replacements:90501-35032 (fitment: unknown)
90109-T0005 standard —
94185-61000 standard —
90105-T0095 standard —
Replacements:90105-10388 (fitment: unknown)

Diagram

13 parts

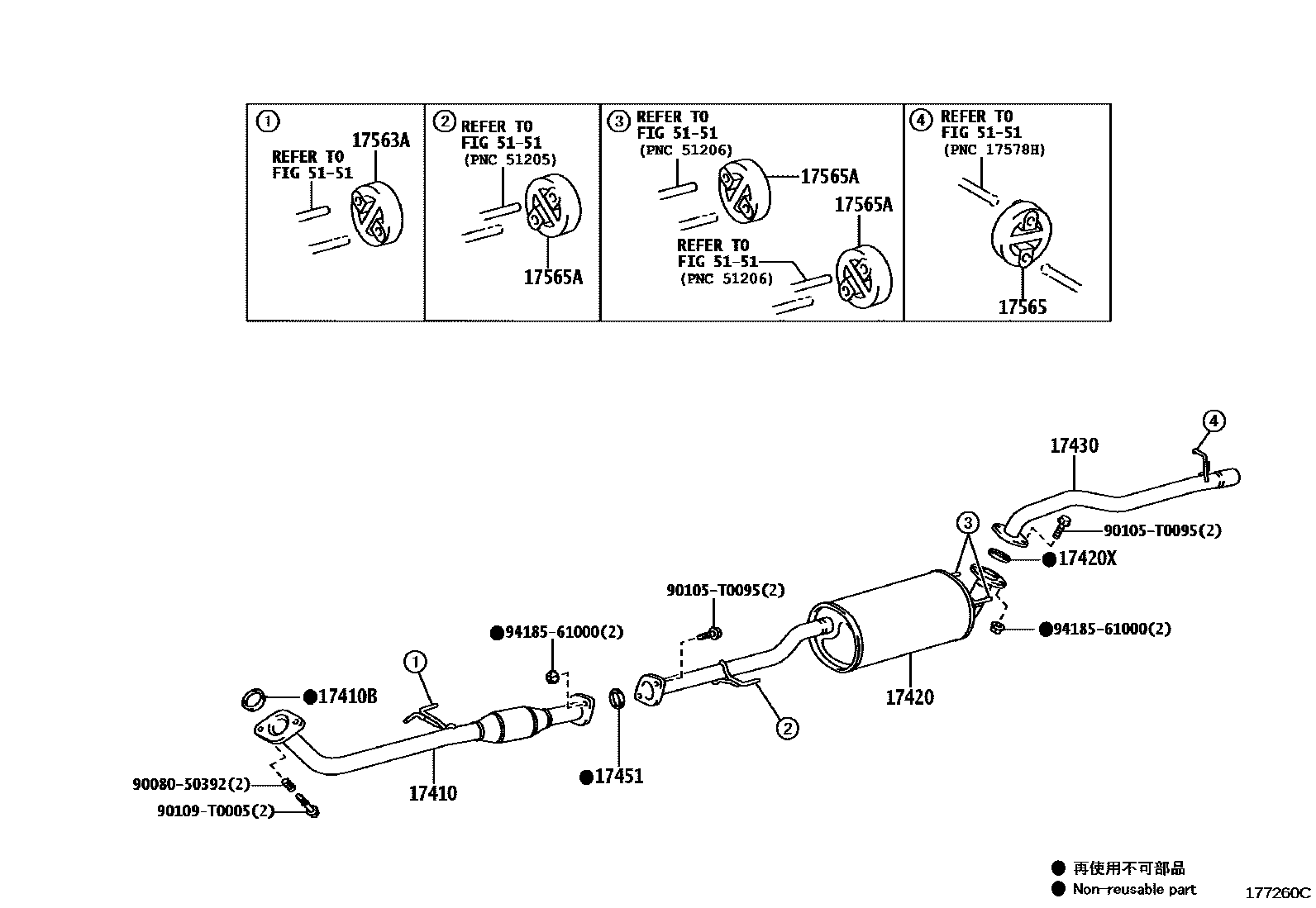

Toyota Hilux 2014 — Exhaust Pipe
