Open RegionYearModelModelCode Details
USA / Canada 2012 HILUX KUN25L-FRMDH
Catalog: TOYOTA202608 Engine: 2500CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: DLX TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: THAILAND PRODUCED SINGLE CAB Color Code: 1E9 Trim Code: EN10 Production: 201107-201504 Model Short: KUN25L-FRMDH Region: NA Native Region: US

Toyota Hilux 2012 — Starter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28100-0L041 STARTER ASSY 1
Note:2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2013-07 Replacements:28100-0L042 (fitment: unknown) Spec:12V 2.0KW
28011-30040 CLUTCH SUB-ASSY, STARTER 1
Note:2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2016-09
28110-30040 HOUSING ASSY, STARTER DRIVE 1
Note:2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2013-08
28150-0L041 SWITCH ASSY, MAGNET STARTER 1
Note:2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2016-09
28140-54380 HOLDER ASSY, STARTER BRUSH 1
Note:2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2016-09
28120-YE010 YOKE ASSY, STARTER 1
Note:2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2016-09
28160-YE010 ARMATURE ASSY, STARTER 1
Note:2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2016-09 Replacements:28160-54380 (fitment: unknown)
28130-30040 FRAME ASSY, STARTER COMMUTATOR END 1
Note:2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH) Production:2011-07 – 2013-08
90178-T0019 standard —
Replacements:94151-80800 (fitment: unknown)
90099-00271 standard —
90105-T0082 standard —
90178-T0022 standard —

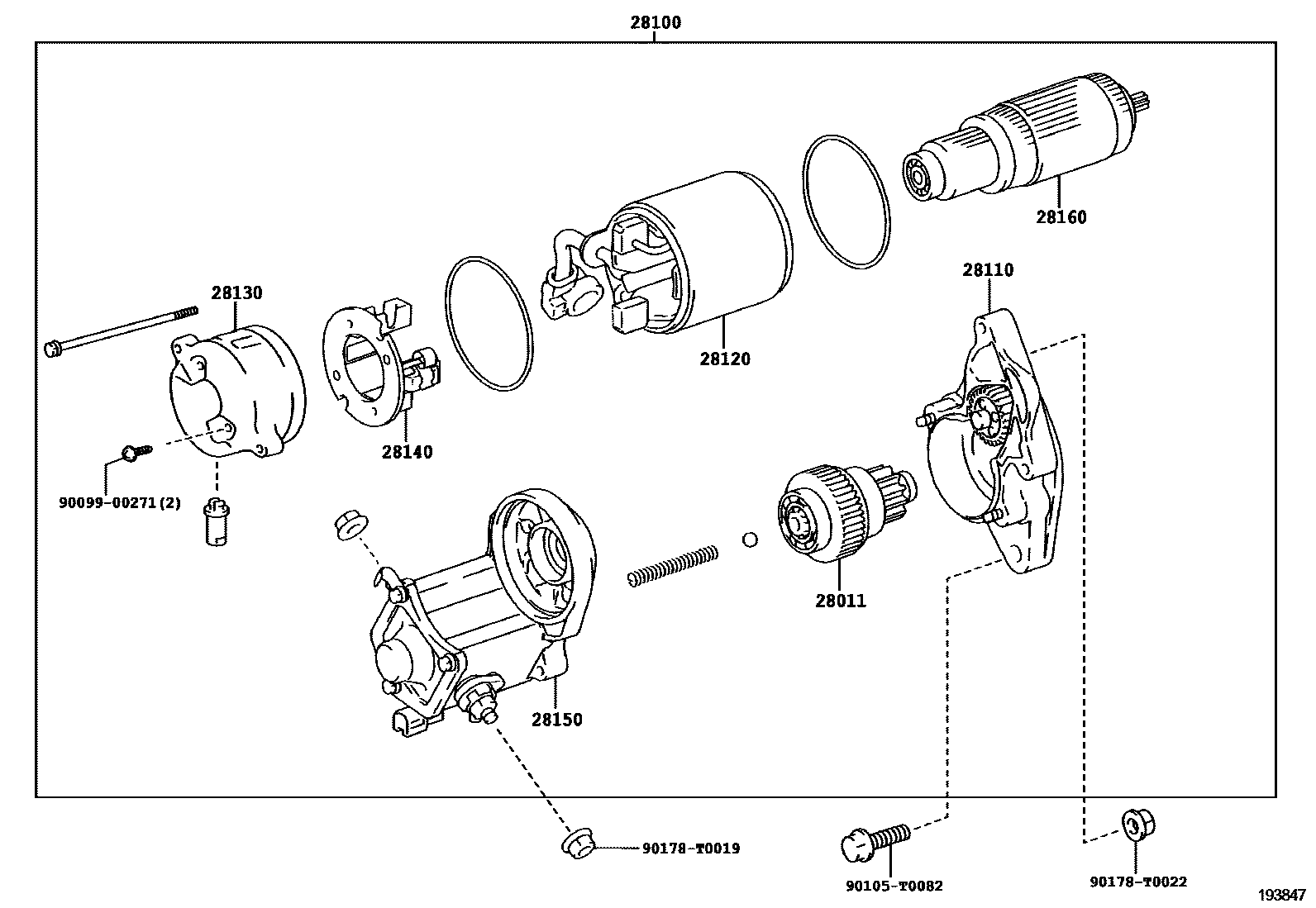

Diagram

12 parts
Toyota Hilux 2012 — Starter
