USA / Canada 2025 HILUX DOUBLE CAB GUN126R-DTTHRQ
Catalog: TOYOTA202608 Engine: 2800CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: AUSTRALIA Color Code: 089 Trim Code: LE21 Production: 202408-999999 Model Short: GUN126R-DTTHRQ Region: NA Native Region: US

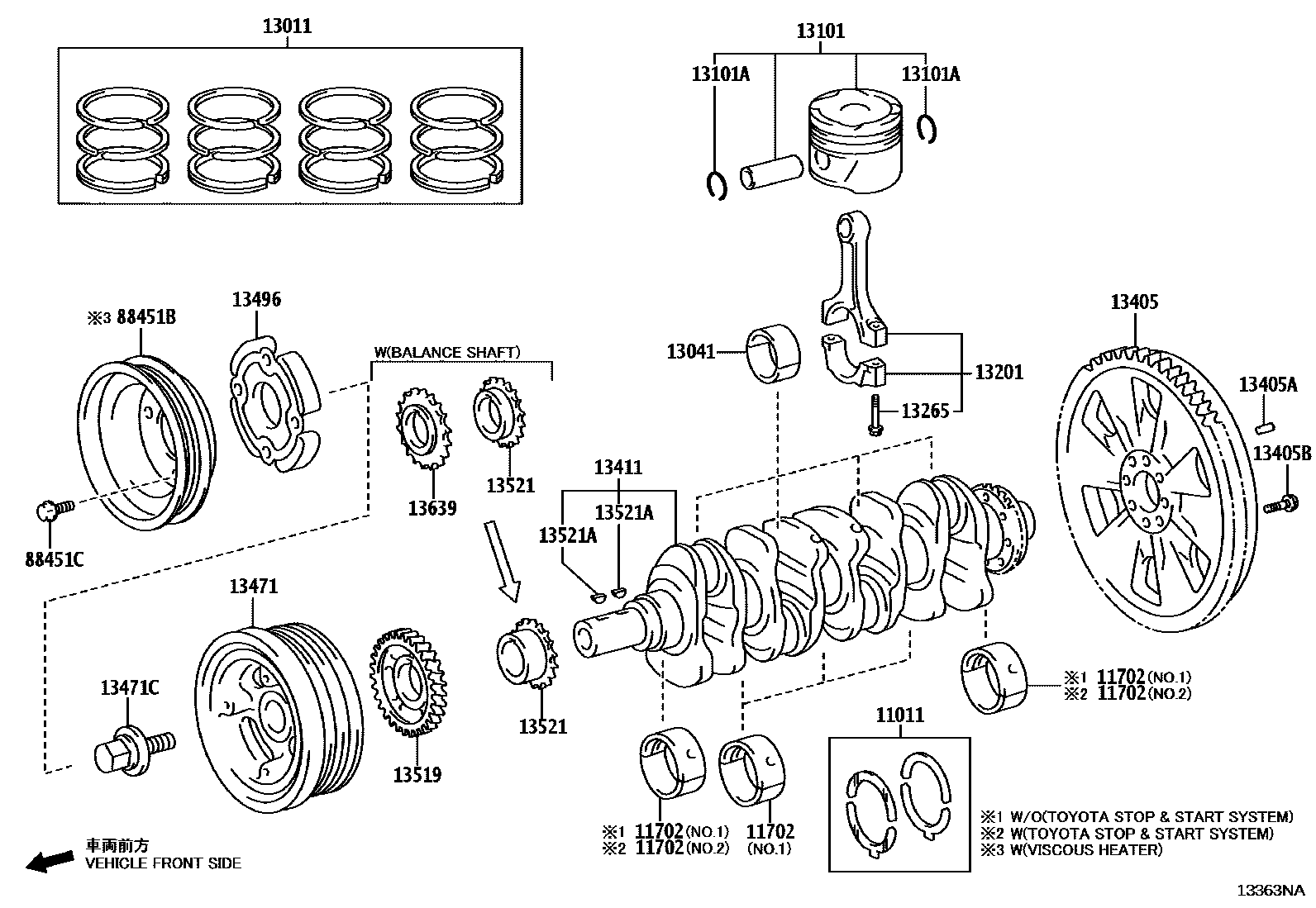

Toyota HILUX-DOUBLE-CAB 2025 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13405-0E020 FLYWHEEL SUB-ASSY 1
Note:1GDFTV..GUN126..(AGP,MP,PKP)..6FC;1GDFTV,2GDFTV..GUN125,13#..AGP..6FC;1GDFTV,2GDFTV..GUN120,121,125..RHD..6FC..(MA,SA,TH) Production:2024-08 – … Replacements:13405-11090 (fitment: unknown) Spec:THA SOURCED PARTS
90250-T0013 PIN, STRAIGHT(FOR FLYWHEEL) 1
Note:1GDFTV..GUN126..(AGP,MP,PKP)..6FC;1GDFTV,2GDFTV..GUN125,13#..AGP..6FC;1GDFTV,2GDFTV..GUN120,121,125..RHD..6FC..(MA,SA,TH) Production:2024-08 – … Replacements:90250-05121 (fitment: unknown) Spec:L=15,OD=5,(L) Spec Note:L=15,OD=5,(Local made)
13041-0E021-02 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13041-11061-02 (fitment: unknown) Spec:MARK 2
13041-0E021-03 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13041-11061-03 (fitment: unknown) Spec:MARK 3
13041-0E021-04 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13041-11061-04 (fitment: unknown) Spec:MARK 4
13041-0E021-05 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13041-11061-05 (fitment: unknown) Spec:MARK 5
13041-0E021-06 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13041-11061-06 (fitment: unknown) Spec:MARK 6
13101-0E071-01 PISTON SUB-ASSY, W/PIN 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13101-11241-01 (fitment: unknown) Spec:STD,MARK 1,THA SOURCED PARTS
13101-0E071-02 PISTON SUB-ASSY, W/PIN 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13101-11241-02 (fitment: unknown) Spec:STD,MARK 2,THA SOURCED PARTS
13011-0E042 RING SET, PISTON 1
Note:2GDFTV..GUN125..AGP..6F..LA;1GDFTV..GUN126..6F..L..BZAG;1GDFTV..GUN126..AGP..6F..S..LA;1GDFTV..GUN126..6FC..(L,S)..BZAG;2GDFTV..GUN125..RHD..6F..S..(MA,SA);2GDFTV..GUN125..(AGP,MP)..6FC..(LA,MA);2GDFTV..GUN135..(AGP,SP)..6F..S..(LA,SA);1GDFTV,2GDFTV..GUN126,135..(AGP,MP)..(H,L)..(LA,MA);1GDFTV,2GDFTV..GUN120,121,122..(L,S)..(GCC,PH,TH)..CBU Production:2024-08 – … Replacements:13011-11221 (fitment: unknown) Spec:STD,THA SOURCED PARTS
13496-0E010 COVER, CRANKSHAFT PULLY 1
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – …
13521-0E010 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:13521-11040 (fitment: unknown) Spec:THA SOURCED PARTS
90520-32013 RING, HOLE SNAP(FOR PISTON PIN) 8
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..6FC..BZAG;2GDFTV..GUN135..AGP..6F..L;1GDFTV..GUN126,136..AGP..6F..LA;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN122..(L,S)..(GCC,PH,TH)..CBU;2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,125..6FC..(BZAG,TH);1GDFTV..GUN126..(AGP,MP,PKP)..6FC..(LA,MA,PKN) Production:2024-08 – …
13201-0E020-A0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13201-11050-A0 (fitment: unknown) Spec:MARK A,(L) Spec Note:MARK A,(Local made)
13201-0E020-B0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13201-11050-B0 (fitment: unknown) Spec:MARK B,(L) Spec Note:MARK B,(Local made)
13201-0E020-C0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13201-11050-C0 (fitment: unknown) Spec:MARK C,(L) Spec Note:MARK C,(Local made)
13201-11050-A0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Spec:MARK A,(J) Spec Note:MARK A,(Japan made)
13201-11050-B0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Spec:MARK B,(J) Spec Note:MARK B,(Japan made)
13201-11050-C0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Spec:MARK C,(J) Spec Note:MARK C,(Japan made)
13265-22031 BOLT, CONNECTING ROD 8
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..6FC..BZAG;2GDFTV..GUN135..AGP..6F..L;1GDFTV..GUN126,136..AGP..6F..LA;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN122..(L,S)..(GCC,PH,TH)..CBU;2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,125..6FC..(BZAG,TH);1GDFTV..GUN126..(AGP,MP,PKP)..6FC..(LA,MA,PKN) Production:2024-08 – …
11011-0L020 WASHER SET, CRANKSHAFT THRUST 1
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:11011-30010 (fitment: unknown) Spec:STD,(L) Spec Note:STD,(Local made)
11701-0E010-02 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN125..RHD..S..SA;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;2GDFTV..GUN125..(AGP,MP)..6F;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..LHD..SP..6F..(L,S);2GDFTV..GUN122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:11701-11030-02 (fitment: unknown) Spec:MARK 2,NO.1,REFER R/M,*652 Spec Note:MARK 2,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS)
11701-0E010-03 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN125..RHD..S..SA;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;2GDFTV..GUN125..(AGP,MP)..6F;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..LHD..SP..6F..(L,S);2GDFTV..GUN122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:11701-11030-03 (fitment: unknown) Spec:MARK 3,NO.1,REFER R/M,*652 Spec Note:MARK 3,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS)
11701-0E010-04 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN125..RHD..S..SA;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;2GDFTV..GUN125..(AGP,MP)..6F;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..LHD..SP..6F..(L,S);2GDFTV..GUN122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:11701-11030-04 (fitment: unknown) Spec:MARK 4,NO.1,REFER R/M,*652 Spec Note:MARK 4,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS)
11701-0E010-05 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN125..RHD..S..SA;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;2GDFTV..GUN125..(AGP,MP)..6F;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..LHD..SP..6F..(L,S);2GDFTV..GUN122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:11701-11030-05 (fitment: unknown) Spec:MARK 5,NO.1,REFER R/M,*652 Spec Note:MARK 5,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS)
11701-0E010-06 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN125..RHD..S..SA;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;2GDFTV..GUN125..(AGP,MP)..6F;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..LHD..SP..6F..(L,S);2GDFTV..GUN122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:11701-11030-06 (fitment: unknown) Spec:MARK 6,NO.1,REFER R/M,*652 Spec Note:MARK 6,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS)
13401-0E020 CRANKSHAFT 1
Note:1GDFTV..GUN121;1GDFTV..GUN126,136..AGP,MP,PKP Production:2024-08 – … Replacements:13401-11090 (fitment: unknown) Spec:THA SOURCED PARTS
90280-T0002 KEY(FOR CRANKSHAFT TIMING GEAR) 2
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:95161-30516 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 88451B —
90119-T0236 BOLT, FLANGE W/WASHER 4
Note:GUN122..L..GEN;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN126,136..AGP,MP,PKP;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN125..LHD..(AGP,SP)..6F..(L,S);GUN120,121,122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:91671-80814 (fitment: unknown)
90119-T0218 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:90119-18003 (fitment: unknown) Spec:THA SOURCED PARTS
13408-0E011 PULLEY, CRANKSHAFT 1
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:13408-11061 (fitment: unknown) Spec:THA SOURCED PARTS
13519-0E010 GEAR, OIL PUMP DRIVE 1
Note:2GDFTV..GUN122..L..GEN;2GDFTV..GUN135..AGP..6F..L;2GDFTV..GUN125,135..AGP..6FC;1GDFTV..GUN126,136..AGP,MP,PKP;2GDFTV..GUN135..(AGP,SP)..6F..S;2GDFTV..GUN125..RHD..(H,S)..(MA,SA);2GDFTV..GUN125..LHD..(AGP,SP)..6F..(L,S);1GDFTV,2GDFTV..GUN120,121,122..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:13519-11010 (fitment: unknown)
— Part does not apply to this vehicle configuration. 13405B —
— Part does not apply to this vehicle configuration. 13639 —
