Open RegionYearModelModelCode Details
USA / Canada 2025 HILUX DOUBLE CAB GUN126R-DTTHRQ
Catalog: TOYOTA202608 Engine: 2800CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: AUSTRALIA Color Code: 089 Trim Code: LE21 Production: 202408-999999 Model Short: GUN126R-DTTHRQ Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2025 — Windshield Washer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85372-0K020 PROTECTOR, WASHER JAR 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – …
82711-0K070 CLAMP 3
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:82711-1E340 (fitment: unknown)
90099-32089 BUSH, WINDSHIELD WASHER JAR 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – …
85336-30160 PACKING, WINDSHIELD WASHER INLET HOSE 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – …
85315-0K460 JAR ASSY, WINDSHIELD WASHER 1
Note:GUN125,126..MA Production:2024-09 – …
85377-0D040 JOINT, WINDSHIELD WASHER ELBOW, NO.1 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:85355-20200 (fitment: unknown)
90068-33295 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Spec:L=685
90068-33251 HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 2
Note:GUN126..MA,PKN;GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..6F..S..SA;GUN125..LHD..SP..6F..(L,S);GUN125..RHD..(H,S)..(MA,SA);GUN122,TGN120..(L,S)..(GCC,PH,SA)..CBU Production:2024-08 – … Spec:L=235
90068-33257 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Spec:L=430
90068-59152 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Spec:L=1445
85321-0A010 VALVE, WINDSHIELD WASHER HOSE 1
Note:GUN126..MA,PKN;GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..6F..S..SA;GUN125..LHD..SP..6F..(L,S);GUN125..RHD..(H,S)..(MA,SA);GUN122,TGN120..(L,S)..(GCC,PH,SA)..CBU Production:2024-08 – … Replacements:85321-28020 (fitment: unknown)
85375-06101 JOINT, WINDSHIELD WASHER HOSE, NO.2 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:85375-10260 (fitment: unknown)
85330-0K012 MOTOR AND PUMP ASSY, WINDSHIELD WASHER 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – …
85375-06101 JOINT, WINDSHIELD WASHER HOSE, NO.1 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:85375-10260 (fitment: unknown)
90068-33160 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 1
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Spec:L=40
— Part does not apply to this vehicle configuration. 85333 —
85301-0K160 INLET SUB-ASSY, WASHER 1
Note:GUN125,126..MA Production:2024-09 – …
85316-16070 CAP, WINDSHIELD WASHER JAR 1
Note:GUN125,126..MA Production:2024-09 – …
85381-0K070 NOZZLE SUB-ASSY, WASHER 2
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:85381-30220 (fitment: unknown) Spec:ANGLE 0
85381-0K080 NOZZLE SUB-ASSY, WASHER 2
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:85381-30230 (fitment: unknown) Spec:ANGLE -2
85381-0K090 NOZZLE SUB-ASSY, WASHER 2
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … Replacements:85381-30240 (fitment: unknown) Spec:ANGLE +2
82711-3A640 standard —
90119-T0144 standard —
Replacements:90119-06767 (fitment: unknown)

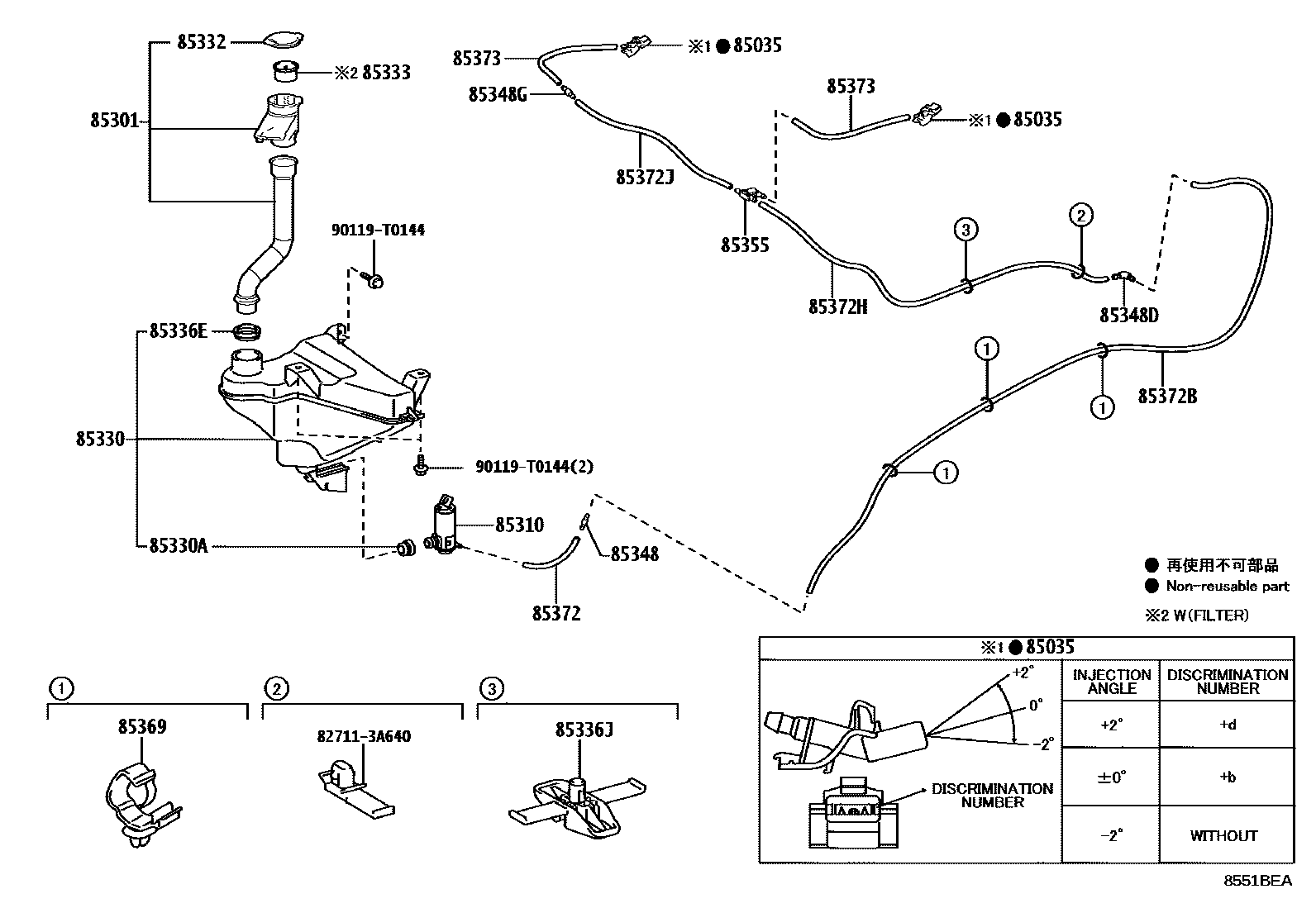

Diagram

22 parts
Toyota HILUX-DOUBLE-CAB 2025 — Windshield Washer
