Toyota HILUX-DOUBLE-CAB 2025 — Hood Lock & Hinge
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 53410-0K370 | HINGE ASSY, HOOD, RH | 1 | |
Note:TGN121..6FC..ARL;TGN126..(H,L)..GEN;TGN126..TP..(GCC,LA);GGN125,GUN120,121,122,136,TGN120,121,136..TP..(GCC,GEN,LA,PH,TH);GUN125,126,135..(CMP,INP,MMP,MP,TP)..(GCC,GEN,IDN,IND,LA,MA,MMR,PH,TWN) Production:2024-08 – … | |||
| 53420-0K370 | HINGE ASSY, HOOD, LH | 1 | |
Note:TGN121..6FC..ARL;TGN126..(H,L)..GEN;TGN126..TP..(GCC,LA);GGN125,GUN120,121,122,136,TGN120,121,136..TP..(GCC,GEN,LA,PH,TH);GUN125,126,135..(CMP,INP,MMP,MP,TP)..(GCC,GEN,IDN,IND,LA,MA,MMR,PH,TWN) Production:2024-08 – … | |||
| 53440-0K040 | ROD, HOOD SUPPORT | 1 | |
Note:GUN125,126..MA Production:2024-09 – … | |||
| 53452-0K020 | HOLDER, HOOD STAY | 1 | |
Note:GUN122..L..GEN;TGN121..GCC,GEN;TGN121..6FC..ARL;GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,136,TGN126..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN120,121,TGN136..BZAG,LA,TH;GUN122,TGN120..(L,S)..(GCC,PH,SA,TH)..CBU Production:2024-08 – … | |||
| 53454-52020 | CLIP, HOOD SUPPORT ROD | 1 | |
Note:GUN135..AGP..6F..L;GUN125,135..AGP..6FC;GUN135..(AGP,SP)..6F..S;GUN125..RHD..(H,S)..(MA,SA);GUN126,TGN126,136..AGP,MP,PKP;GUN125..LHD..(AGP,SP)..6F..(L,S);GGN125,GUN122,136..LHD..(AGP,SP) Production:2024-09 – … | |||
| 53510-0K660 | LOCK ASSY, HOOD | 1 | |
Note:GUN125,126..MA;TGN121..6FC..ARL;GUN126..RHD..6F..H..GEN Production:2024-08 – … | |||
| 90506-T0004 | SPRING, TENSION(FOR HOOD LOCK) | 1 | |
Note:TGN126..GCC,LA;TGN121..6FC..ARL;TGN126..(H,L)..GEN;GUN125,TGN121,126..LHD..SP;GUN125..RHD..(GEN,IDN,KEN,MA,SA);GUN125,TGN121..LHD..(BZAG,GCC,GEN,GHA,LA,PH);GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN;GGN125,GUN120,121,122,136,LAN125,TGN120,136..BZAG,GCC,GEN,LA,PH,SA,TH Production:2024-08 – … Replacements:90506-12063 (fitment: unknown) Spec:WD=1.2,CW=8.5 | |||
| 90506-T0005 | SPRING, TENSION(FOR HOOD LOCK) | 1 | |
Note:TGN126..GCC,LA;TGN121..6FC..ARL;TGN126..(H,L)..GEN;GUN125,TGN121,126..LHD..SP;GUN125..RHD..(GEN,IDN,KEN,MA,SA);GUN125,TGN121..LHD..(BZAG,GCC,GEN,GHA,LA,PH);GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN;GGN125,GUN120,121,122,136,LAN125,TGN120,136..BZAG,GCC,GEN,LA,PH,SA,TH Production:2024-08 – … Replacements:90506-09055 (fitment: unknown) Spec:WD=0.9,CW=21 | |||
| 53601-0D040-C0 | LEVER SUB-ASSY, HOOD LOCK CONTROL | 1 | |
Note:TGN126..LA;TGN121..6FC..ARL;TGN126..(H,L)..GEN;GUN125,126,135..BZAG,GEN,IDN,LA,MA,MMR,PH,PKN,TWN;GGN125,GUN120,121,122,136,TGN121,136..BZAG,GEN,LA,PH,TH Production:2024-08 – … Spec:BLACK,TRIM2# | |||
| 53630-0K320 | CABLE ASSY, HOOD LOCK CONTROL | 1 | |
Note:GUN125,126..MA Production:2024-09 – … | |||
| 82711-1E350 | CLAMP(FOR HOOD LOCK CONTROL CABLE) | 1 | |
Note:TGN121..6FC..ARL;GUN125,126,135..RHD..(GEN,IDN,IND,KEN,MA,PKN,SA);GGN125,GUN120,121,122,136,TGN136..RHD..(GEN,SA,TH) Production:2024-08 – … | |||
| 90119-T0273 | standard | — | |
Replacements:90119-06939 (fitment: unknown) | |||
| 90119-06939 | standard | — | |
| 90105-T0120 | standard | — | |
Replacements:91551-80820 (fitment: unknown) | |||
| 90469-T0003 | standard | — | |
Replacements:90469-06005 (fitment: unknown) | |||
| 90469-T0011 | standard | — | |
| 90959-T1001 | standard | — | |
Replacements:90959-01369 (fitment: unknown) | |||

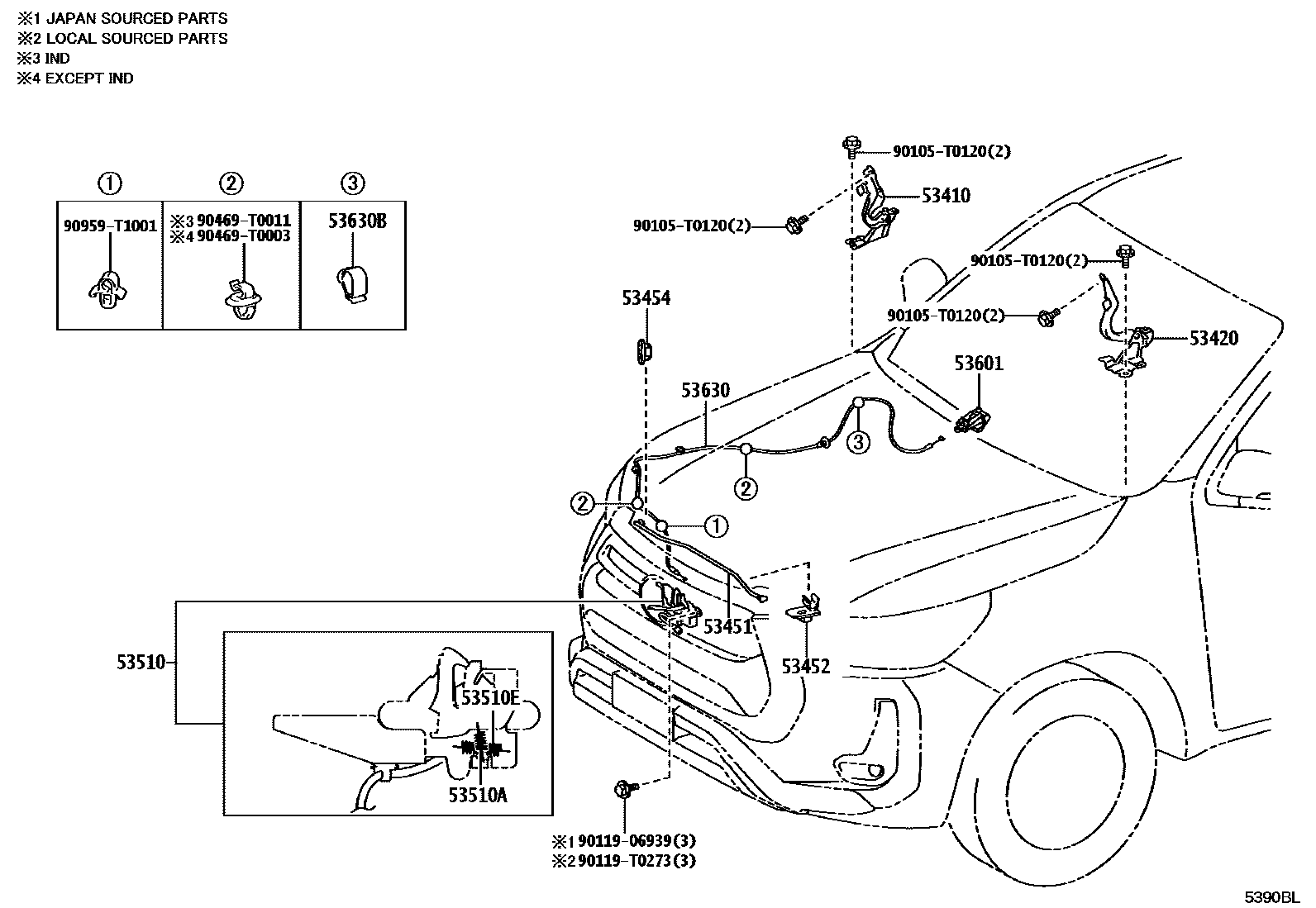

Diagram
17 parts
