Toyota Hilux 2013 — Alternator
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 27060-0C021 | ALTERNATOR ASSY | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … Spec:12V 80A | |||
| 90105-T0127 | BOLT(FOR ALTERNATOR) | 1 | |
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – … Replacements:91552-81085 (fitment: unknown) | |||
| 27411-0C020 | PULLEY, ALTERNATOR | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … | |||
| 27412-0C020 | COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … Replacements:27412-35100 (fitment: unknown) | |||
| 90068-10029 | BEARING(FOR ALTERNATOR DRIVE END FRAME) | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … Replacements:90099-10227 (fitment: unknown) | |||
| 27310-0C021 | FRAME ASSY, DRIVE END, ALTERNATOR | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … | |||
| 27312-0C020 | PLATE, RETAINER | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … Replacements:27312-72100 (fitment: unknown) | |||
| 27370-0C020 | HOLDER ASSY, ALTERNATOR BRUSH | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … Replacements:27370-58460 (fitment: unknown) | |||
| 27360-0C021 | COIL ASSY, ALTERNATOR | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … | |||
| 27039-0C020 | COVER, ALTERNATOR REAR END | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … | |||
| 27330-0M040 | ROTOR ASSY, ALTERNATOR | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … | |||
| 27384-0C020 | WASHER | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … Replacements:27384-16380 (fitment: unknown) | |||
| 27387-0C020 | INSULATOR, TERMINAL | 1 | |
Note:2TRFE..TGN16..ARL;2TRFE..TGN16..XTR;2TRFE..TGN26..GCC;2TRFE..TGN16..SR..GCC;2TRFE..TGN16..GCC..IV3;2TRFE..TGN16..DCB..DLX..GCC;2TRFE..TGN26..(DCB,THDCB)..5F..GEN;1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN Production:2013-04 – … Replacements:27387-47310 (fitment: unknown) | |||
| 90068-0C020 | standard | — | |
Replacements:90099-05284 (fitment: unknown) | |||
| 90068-04033 | standard | — | |
Replacements:90099-04539 (fitment: unknown) | |||
| 90068-05009 | standard | — | |
Replacements:90099-05171 (fitment: unknown) | |||
| 90105-T0125 | standard | — | |
Replacements:91552-81040 (fitment: unknown) | |||
| 90068-00022 | standard | — | |
Replacements:90099-00268 (fitment: unknown) | |||
| 90068-00023 | standard | — | |
Replacements:90099-00197 (fitment: unknown) | |||
| 90178-T0018 | standard | — | |

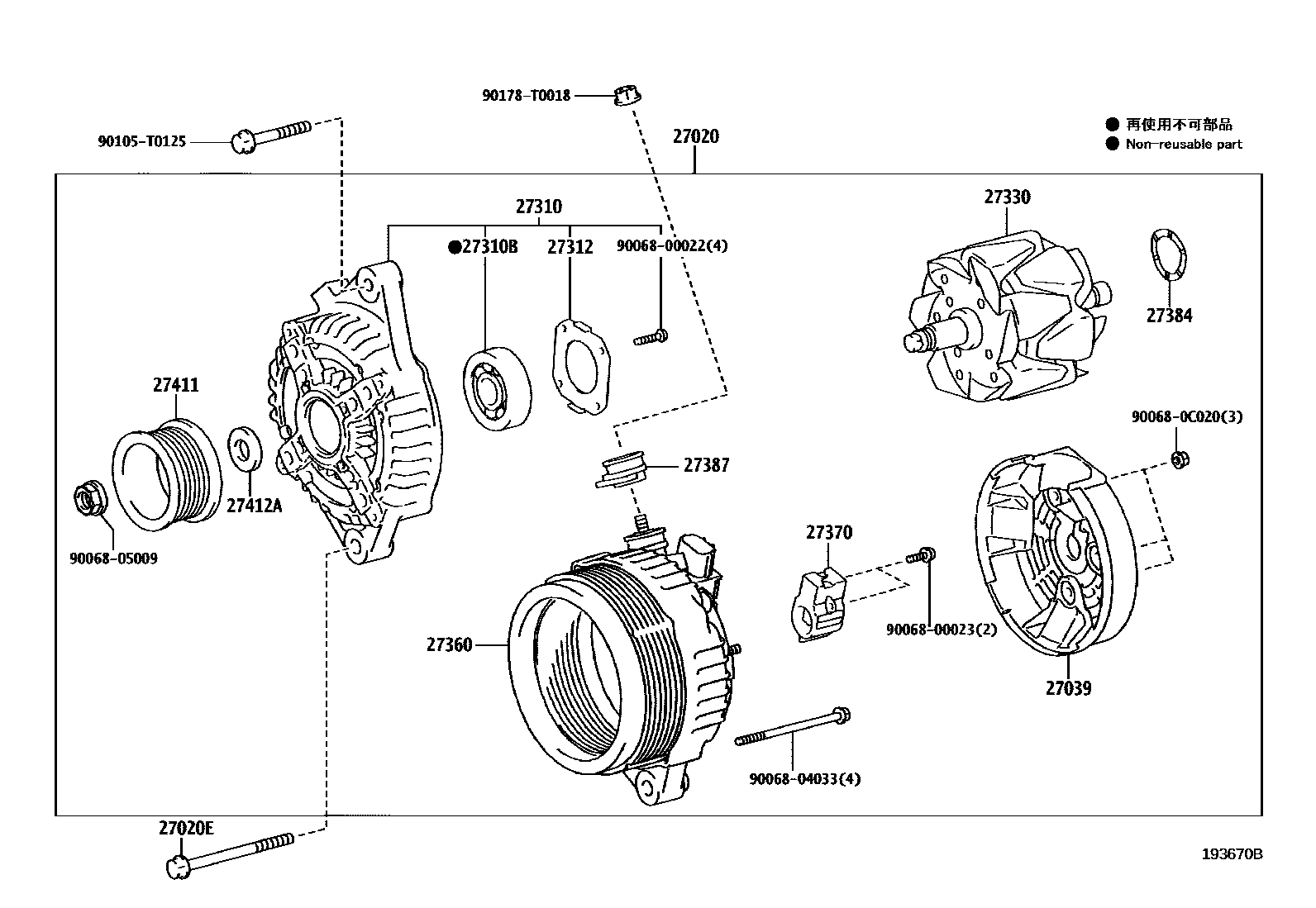

Diagram
20 parts
