Toyota BZ3X 2025 — Windshield Washer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 85327-YL011 | INLET SUB-ASSY, WASHER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85330-YL011 | MOTOR AND PUMP ASSY, WINDSHIELD WASHER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85325-YL011 | JAR ASSY, WINDSHIELD WASHER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85332-YL011 | CAP, WINDSHIELD WASHER JAR | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85375-YL020 | JOINT, WINDSHIELD WASHER HOSE, NO.1 | 2 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85376-YL020 | VALVE, WINDSHIELD WASHER HOSE | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85338-YL010 | BRACKET, WASHER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85370-YL020 | HOSE ASSY, WINDSHIELD WASHER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 90069-46335 | HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … Spec:L=335 | |||
| 85371-0A040 | CLAMP, WASHER HOSE | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85379-YL020 | GROMMET, WASHER, A | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85387-YL020 | CLAMP NO.1 (FOR WINDSEIELD WASHER) | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 90069-48025 | CLAMP, WASHER, NO.2 | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 90069-48026 | CLAMP, WASHER, NO.3 | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85388-YL020 | CLAMP NO.2 (FOR WINDSEIELD WASHER) | 5 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85380-YL011 | NOZZLE SUB-ASSY, WASHER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … Spec:LH | |||
| 85380-YL021 | NOZZLE SUB-ASSY, WASHER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … Spec:RH | |||
| 85381-YL010 | NOZZLE, FRONT WASHER, LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85382-YL010 | NOZZLE, WINDSHIELD WASHER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 90119-C0665 | standard | — | |
| 85387-YL020 | standard | — | |
| 52957-YL010 | standard | — | |
| 90466-C0061 | standard | — | |

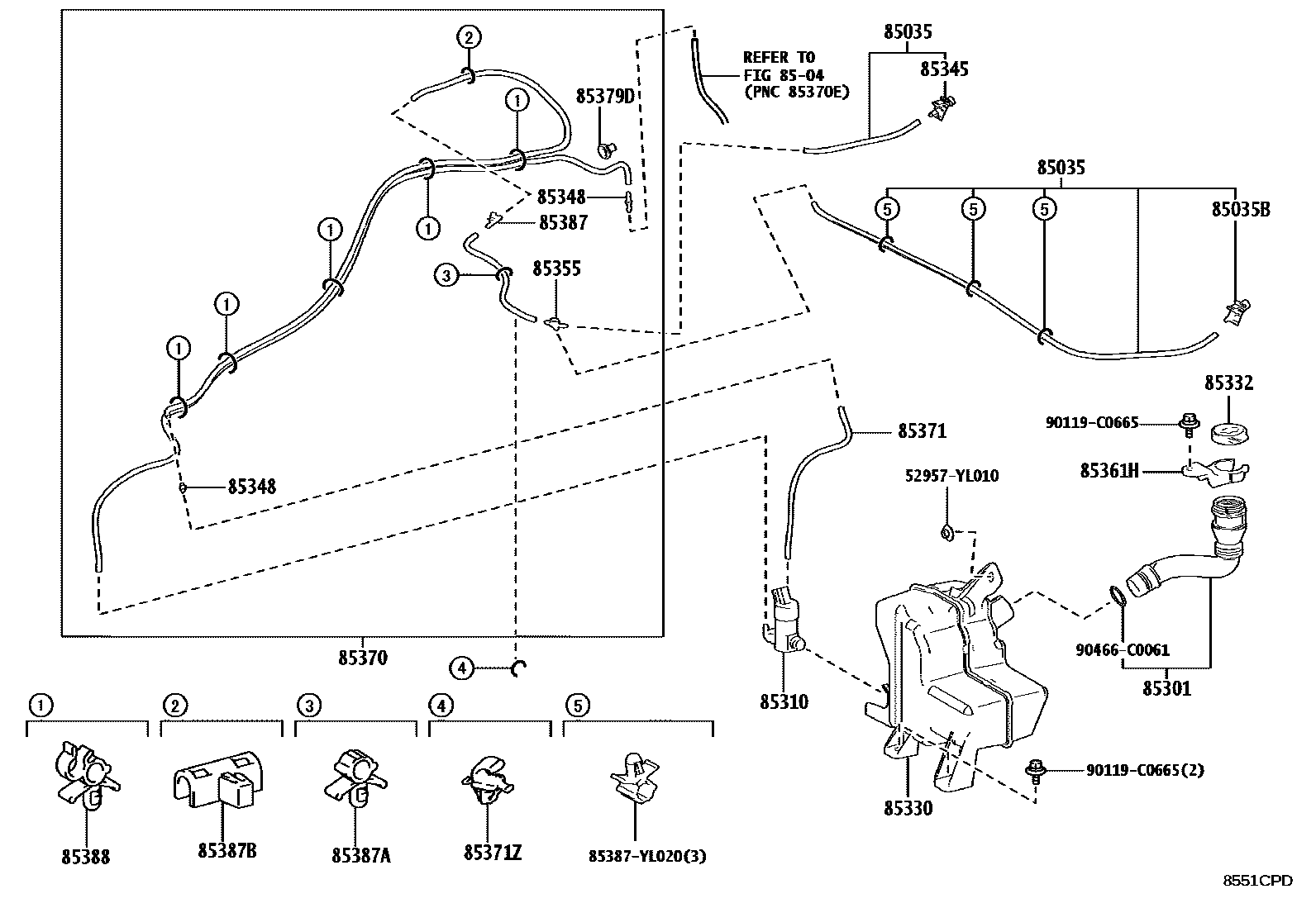

Diagram
23 parts
