Toyota Granvia-Hybrid 2025 — Hood Lock & Hinge
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 53510-08070 | LOCK ASSY, HOOD | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 53410-08120 | HINGE ASSY, HOOD, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:TYPE A:REFER ILLUST. Fitment:Matches · configuration | |||
| 53410-08130 | HINGE ASSY, HOOD, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:TYPE B:REFER ILLUST. Fitment:Matches · configuration | |||
| 53410-08140 | HINGE ASSY, HOOD, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:TYPE C:REFER ILLUST. Fitment:Matches · configuration | |||
| 53420-08100 | HINGE ASSY, HOOD, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:TYPE A:REFER ILLUST. Fitment:Matches · configuration | |||
| 53420-08110 | HINGE ASSY, HOOD, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:TYPE B:REFER ILLUST. Fitment:Matches · configuration | |||
| 53420-08120 | HINGE ASSY, HOOD, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:TYPE C:REFER ILLUST. Fitment:Matches · configuration | |||
| 53440-08060 | SUPPORT ASSY, HOOD | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 53601-0D011-C1 | LEVER SUB-ASSY, HOOD LOCK CONTROL | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Spec:BLACK,TRIM2# Fitment:Matches · configuration | |||
| 53630-08060 | CABLE ASSY, HOOD LOCK CONTROL | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 90469-C0004 | CLAMP(FOR HOOD LOCK CONTROL CABLE) | 5 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 90506-C0006 | SPRING, TENSION(FOR HOOD LOCK) | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:WD=1.5,CW=12 Fitment:Matches · configuration | |||
| 90506-09055 | SPRING, TENSION(FOR HOOD LOCK) | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:WD=0.9,CW=21 Fitment:Matches · configuration | |||
| 90506-12063 | SPRING, TENSION(FOR HOOD LOCK) | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:WD=1.2,CW=8.5 Fitment:Matches · configuration | |||
| 53454-52010 | CLIP, HOOD SUPPORT ROD | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:COLOR : GRAY Fitment:Matches · configuration | |||
| 90480-15025 | CLIP, HOOD SUPPORT ROD | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:COLOR : BLACK Fitment:Matches · configuration | |||
| 53452-0R030 | HOLDER, HOOD STAY | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 53577-33010 | BOLT, HOOD LOCK | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 53579-0E020 | CAP, HOOD LOCK NUT | 1 | |
Note:AXLH40..L,N Production:2025-02 – 2026-05 Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| 53579-50010 | CAP, HOOD LOCK NUT | 1 | |
Note:AXLH40..L,N Production:2025-02 – 2026-05 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 90105-C0134 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-06A15 | standard | — | |
Fitment:Matches · configuration | |||
| 90109-06372 | standard | — | |
Fitment:Matches · configuration | |||

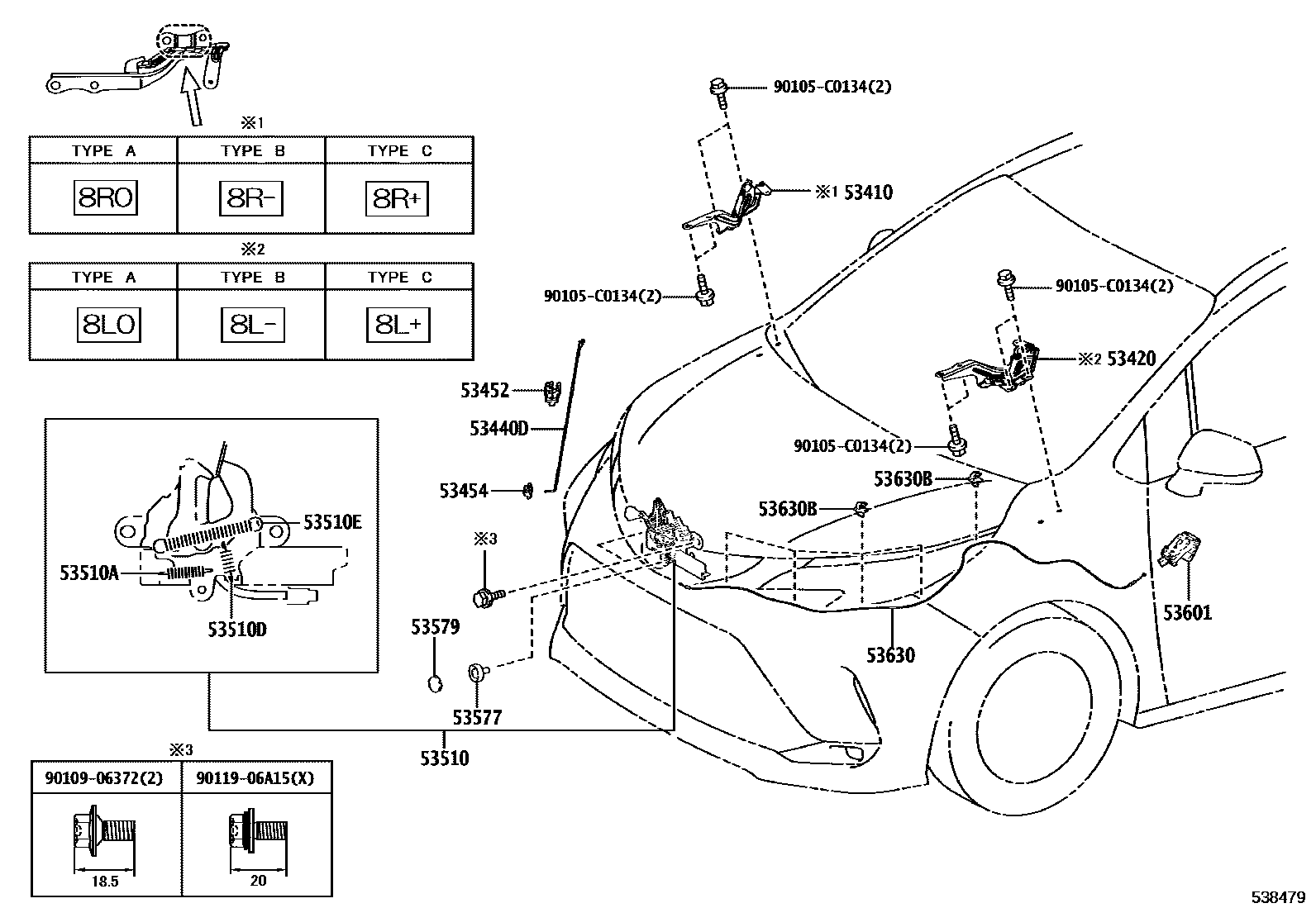

Diagram
23 parts
