Toyota Granvia-Hybrid 2025 — Front Door Lock & Handle
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 69030-02620 | LOCK ASSY, FRONT DOOR W/MOTOR, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69035-02060 | COVER SUB-ASSY, FRONT DOOR LOCK, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69036-02060 | COVER SUB-ASSY, FRONT DOOR LOCK, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69040-02590 | LOCK ASSY, FRONT DOOR W/MOTOR, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69205-0R060-B3 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | 1 | |
Note:AXLH40..N Production:2024-04 – 2026-05 Spec:NEUTRAL WARM GRAY,TRIM2# Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 69205B | — |
| 69206-0R060-B3 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | 1 | |
Note:AXLH40..N Production:2024-04 – 2026-05 Spec:NEUTRAL WARM GRAY,TRIM2# Fitment:Matches · configuration | |||
| 69210-08150-C0 | HANDLE ASSY, FRONT DOOR, OUTSIDE RH | 1 | |
Note:AXLH40..N Production:2024-04 – 2026-05 Spec:BLACK MC.,209 Fitment:Matches · configuration | |||
| 69217-0R190 | COVER, FRONT DOOR OUTSIDE HANDLE, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69210-08140-C0 | HANDLE ASSY, FRONT DOOR OUTSIDE, LH | 1 | |
Note:AXLH40..N Production:2024-04 – 2026-05 Spec:BLACK MC.,209 Fitment:Matches · configuration | |||
| 69277-08080-B1 | BEZEL, FRONT DOOR INSIDE HANDLE, RH | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Spec:NEUTRAL WARM GRAY,TRIM2# Fitment:Matches · configuration | |||
| 69278-08100-B1 | BEZEL, FRONT DOOR INSIDE HANDLE, LH | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Spec:NEUTRAL WARM GRAY,TRIM2# Fitment:Matches · configuration | |||
| 69311-08050 | ROD, FRONT DOOR LOCK OPEN, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69312-08050 | ROD, FRONT DOOR LOCK OPEN, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69318-51010 | SEAL, DOOR LOCK WIRING HARNESS | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69410-0D020 | PLATE ASSY, FRONT DOOR LOCK STRIKER | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69710-08060 | CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69710-08060 | CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69750-08070 | CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69750-08070 | CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69201-08040 | FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69202-08040 | FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69237-F4030 | NUT, FRONT DOOR HANDLE | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69241-08050 | PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69242-08040 | PAD, FRONT DOOR OUTSIDE HANDLE, REAR | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69293-02090 | SNAP, FRONT DOOR OUTSIDE HANDLE, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69293-07010 | SNAP, FRONT DOOR OUTSIDE HANDLE, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 90148-50006 | SCREW, DOOR INSIDE HANDLE | 2 | |
Note:AXLH40..N Production:2024-04 – 2026-05 Fitment:Matches · configuration | |||
| 69239-07020 | BUSH, FRONT DOOR HANDLE | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 90148-50003 | SCREW, DOOR INSIDE HANDLE | 2 | |
Note:AXLH40..N Production:2024-04 – 2026-05 Fitment:Matches · configuration | |||
| 90148-C0006 | standard | — | |
Fitment:Matches · configuration | |||
| 90148-60083 | standard | — | |
Fitment:Matches · configuration | |||
| 90107-C0002 | standard | — | |
Fitment:Matches · configuration | |||
| 90189-C0014 | standard | — | |
Fitment:Matches · configuration | |||
| 90167-C0013 | standard | — | |
Fitment:Matches · configuration | |||

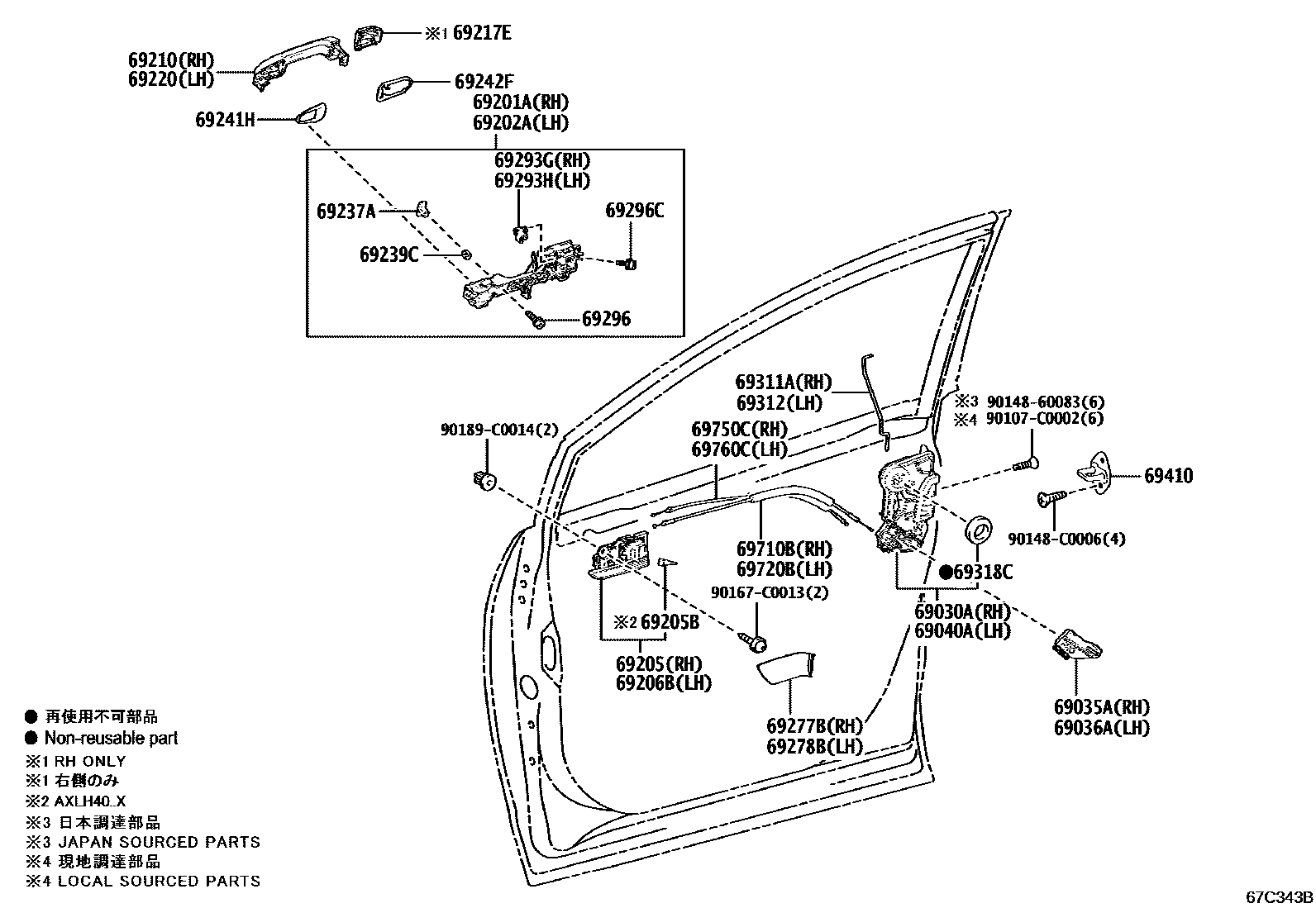

Diagram
34 parts
