Toyota Granvia-Hybrid 2025 — Back Door Lock & Hinge
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 68810-0E320 | HINGE ASSY, BACK DOOR, RH | 1 | |
Note:AXLH40..L,N Production:2023-04 – 2026-05 Spec:PAD T=1.5 Fitment:Matches · configuration | |||
| 68820-0E260 | HINGE ASSY, BACK DOOR, LH | 1 | |
Note:AXLH40..L,N Production:2023-04 – 2026-05 Spec:PAD T=1.5 Fitment:Matches · configuration | |||
| 68945-08060 | BRACKET, BACK DOOR DAMPER STAY, UPPER RH | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 68946-08060 | BRACKET, BACK DOOR DAMPER STAY, UPPER LH | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 68947-08050 | BRACKET, BACK DOOR DAMPER STAY, LOWER RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 68948-08050 | BRACKET, BACK DOOR DAMPER STAY, LOWER LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 68950-08070 | STAY ASSY, BACK DOOR, RH | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 68960-08070 | STAY ASSY, BACK DOOR, LH | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69350-0E180 | LOCK ASSY, BACK DOOR | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 67293-08050 | STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 67294-08050 | STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 69430-0R020 | STRIKER ASSY, BACK DOOR LOCK | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 67281-08050 | STOPPER, BACK DOOR SIDE MALE | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 67282-08050 | STOPPER, BACK DOOR SIDE MALE, LH | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 89437-0E090 | COVER, SENSOR, NO.1 | 10 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 89437-0E100 | COVER, SENSOR, NO.2 | 4 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 89437-0E110 | COVER, SENSOR, NO.3 | 2 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 89437-0E120 | COVER, SENSOR, NO.4 | 2 | |
Note:AXLH40..N Production:2022-11 – 2026-05 Fitment:Matches · configuration | |||
| 90105-C0237 | standard | — | |
Fitment:Matches · configuration | |||
| 90105-08520 | standard | — | |
Fitment:Matches · configuration | |||
| 90105-C0131 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-C0356 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-C0410 | standard | — | |
Fitment:Matches · configuration | |||
| 90148-C0006 | standard | — | |
Fitment:Matches · configuration | |||
| 90389-09041 | standard | — | |
Fitment:Matches · configuration | |||
| 90105-06367 | standard | — | |
Fitment:Matches · configuration | |||
| 90105-C0408 | standard | — | |
Fitment:Matches · configuration | |||
| 90389-14063 | standard | — | |
Fitment:Matches · configuration | |||
| 90182-C0008 | standard | — | |
Fitment:Matches · configuration | |||

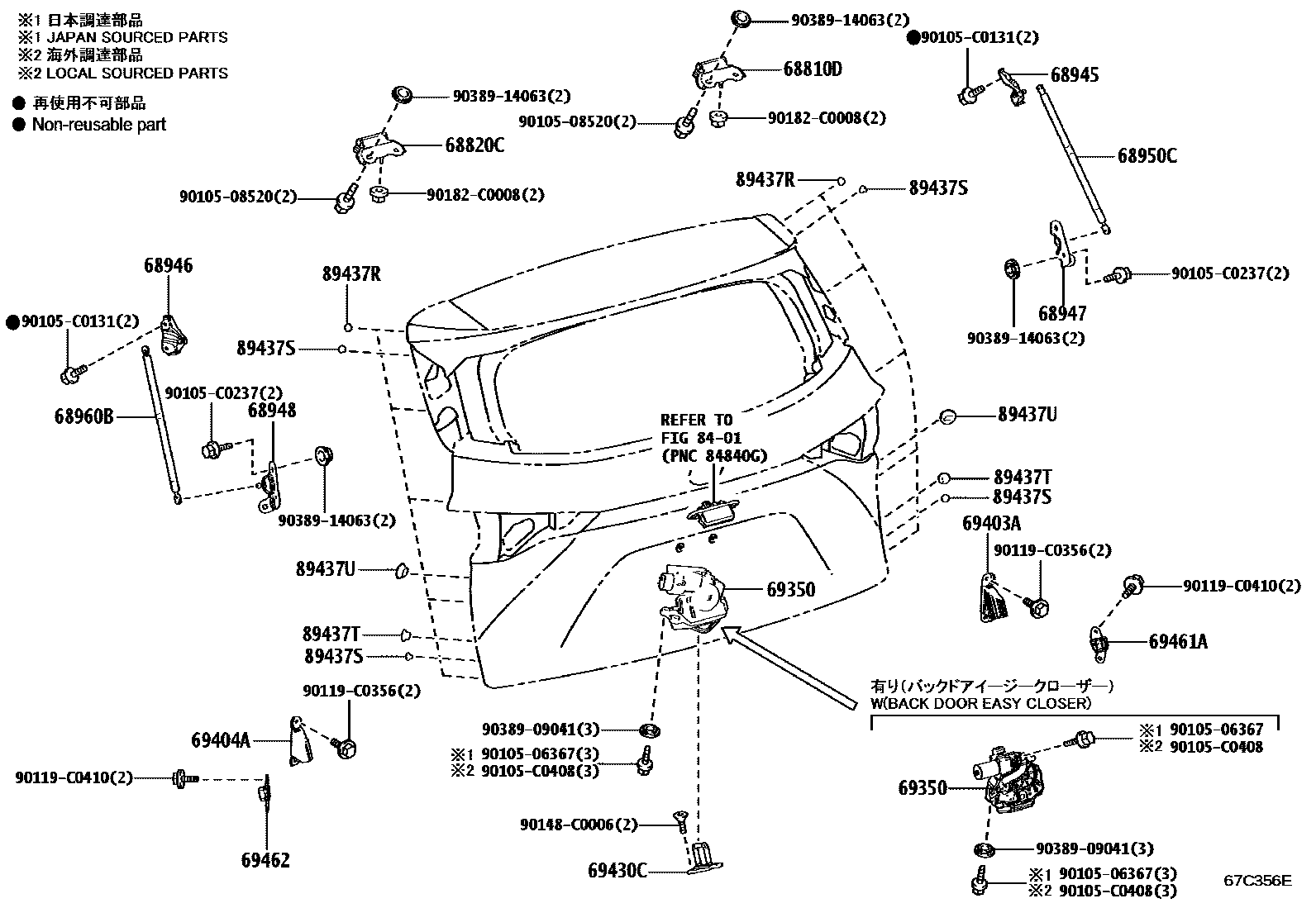

Diagram
29 parts
