Open RegionYearModelModelCode Details
General 2023 GRANVIA HYBRID AXLH40L-QNXLHC
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Color Code: 209 Trim Code: LA20 Production: 202211-999999 Model Short: AXLH40L-QNXLHC Region: OTHER Native Region: GR

Toyota Granvia-Hybrid 2023 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
11791-F0020 WASHER, CRANKSHAFT THRUST, UPPER 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:STD
90520-21024 RING, HOLE SNAP(FOR PISTON PIN) 8
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05
13451-25030 FLYWHEEL SUB-ASSY 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
13451-F0030 FLYWHEEL SUB-ASSY 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
90250-08120 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:L=18,OD=8,(J) Spec Note:L=18,OD=8,(Japan made)
90250-C0011 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Replacements:90250-08120 (fitment: unknown) Spec:L=18,OD=8,(L) Spec Note:L=18,OD=8,(Local made)
90105-12404 BOLT, FLYWHEEL SETTING 8
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
90105-C0352 BOLT, FLYWHEEL SETTING 8
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
13401-25010 CRANKSHAFT 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
13401-F0040 CRANKSHAFT 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
90250-06035 PIN, STRAIGHT(FOR CRANKSHAFT) 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05
13470-25020 PULLEY ASSY, CRANKSHAFT 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
13470-F0030 PULLEY ASSY, CRANKSHAFT 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
90280-04001 KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
90280-C0002 KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
90119-16020 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
90119-C0429 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
13519-25010 SPROCKET, OIL PUMP DRIVE 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
13519-F0020 SPROCKET, OIL PUMP DRIVE 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
13521-25010 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
13521-F0020 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
19315-25011 PLATE, CRANK ANGLE SENSOR, NO.1 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
19315-F0020 PLATE, CRANK ANGLE SENSOR, NO.1 1
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
11701-25010-01 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 1,(J),NO.1 REFER R/M Spec Note:MARK 1,(Japan made),NO.1 REFER R/M
11701-25010-02 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 2,(J),NO.1 REFER R/M Spec Note:MARK 2,(Japan made),NO.1 REFER R/M
11701-25010-03 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 3,(J),NO.1 REFER R/M Spec Note:MARK 3,(Japan made),NO.1 REFER R/M
11701-25010-04 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 4,(J),NO.1 REFER R/M Spec Note:MARK 4,(Japan made),NO.1 REFER R/M
11701-25010-05 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 5,(J),NO.1 REFER R/M Spec Note:MARK 5,(Japan made),NO.1 REFER R/M
11701-25020-01 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 1,(J),NO.2 REFER R/M Spec Note:MARK 1,(Japan made),NO.2 REFER R/M
11701-25020-02 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 2,(J),NO.2 REFER R/M Spec Note:MARK 2,(Japan made),NO.2 REFER R/M
11701-25020-03 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 3,(J),NO.2 REFER R/M Spec Note:MARK 3,(Japan made),NO.2 REFER R/M
11701-25020-04 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 4,(J),NO.2 REFER R/M Spec Note:MARK 4,(Japan made),NO.2 REFER R/M
11701-25020-05 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 5,(J),NO.2 REFER R/M Spec Note:MARK 5,(Japan made),NO.2 REFER R/M
11701-F0030-01 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 1,(L),NO.1 REFER R/M Spec Note:MARK 1,(Local made),NO.1 REFER R/M
11701-F0030-02 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 2,(L),NO.1 REFER R/M Spec Note:MARK 2,(Local made),NO.1 REFER R/M
11701-F0030-03 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 3,(L),NO.1 REFER R/M Spec Note:MARK 3,(Local made),NO.1 REFER R/M
11701-F0030-04 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 4,(L),NO.1 REFER R/M Spec Note:MARK 4,(Local made),NO.1 REFER R/M
11701-F0030-05 BEARING, CRANKSHAFT 3
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 5,(L),NO.1 REFER R/M Spec Note:MARK 5,(Local made),NO.1 REFER R/M
11701-F0040-01 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 1,(L),NO.2 REFER R/M Spec Note:MARK 1,(Local made),NO.2 REFER R/M
11701-F0040-02 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 2,(L),NO.2 REFER R/M Spec Note:MARK 2,(Local made),NO.2 REFER R/M
11701-F0040-03 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 3,(L),NO.2 REFER R/M Spec Note:MARK 3,(Local made),NO.2 REFER R/M
11701-F0040-04 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 4,(L),NO.2 REFER R/M Spec Note:MARK 4,(Local made),NO.2 REFER R/M
11701-F0040-05 BEARING, CRANKSHAFT 2
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 5,(L),NO.2 REFER R/M Spec Note:MARK 5,(Local made),NO.2 REFER R/M
13265-25020 BOLT, CONNECTING ROD 8
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(J) Spec Note:(Japan made)
13265-F2010 BOLT, CONNECTING ROD 8
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:(L) Spec Note:(Local made)
13201-F9070-A0 ROD SUB-ASSY, CONNECTING 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK A
13201-F9070-B0 ROD SUB-ASSY, CONNECTING 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK B
13201-F9070-C0 ROD SUB-ASSY, CONNECTING 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK C
13011-F0060 RING SET, PISTON 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:STD
13041-25020-01 BEARING, CONNECTING ROD 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 1,(J) Spec Note:MARK 1,(Japan made)
13041-25020-02 BEARING, CONNECTING ROD 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 2,(J) Spec Note:MARK 2,(Japan made)
13041-25020-03 BEARING, CONNECTING ROD 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 3,(J) Spec Note:MARK 3,(Japan made)
13041-F0020-01 BEARING, CONNECTING ROD 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 1,(L) Spec Note:MARK 1,(Local made)
13041-F0020-02 BEARING, CONNECTING ROD 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 2,(L) Spec Note:MARK 2,(Local made)
13041-F0020-03 BEARING, CONNECTING ROD 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 3,(L) Spec Note:MARK 3,(Local made)
13101-F0050 PISTON SUB-ASSY, W/PIN 4
Note:A25..AXLH40..L,N Production:2022-11 – 2026-05 Spec:STD

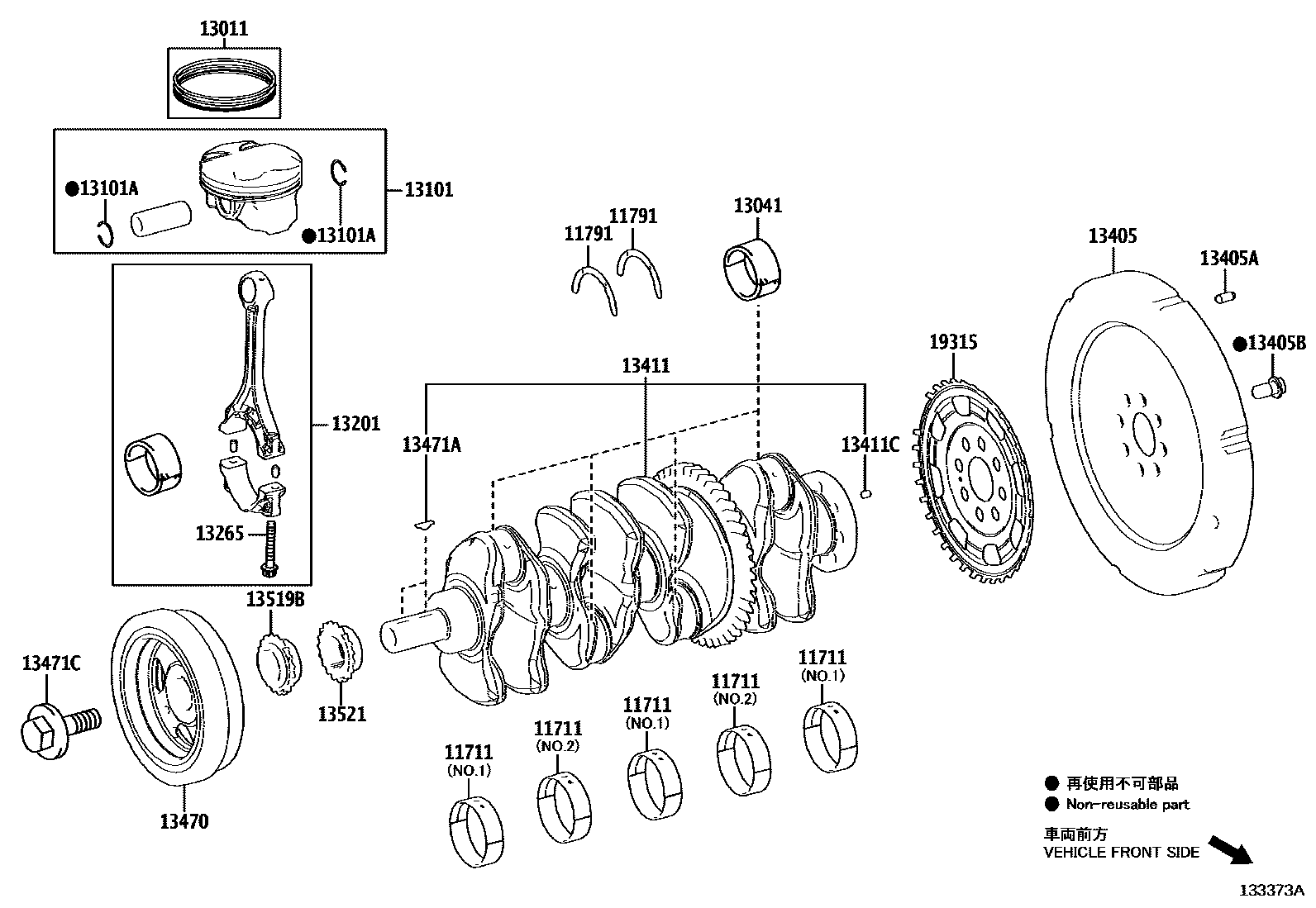

Diagram

56 parts
Toyota Granvia-Hybrid 2023 — Crankshaft & Piston
