Toyota Granvia-Hybrid 2023 — Speaker
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 86160-06690 | SPEAKER ASSY, REAR | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 86160-07150 | SPEAKER ASSY, FRONT NO.1 | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 86160-07140 | SPEAKER ASSY, FRONT NO.2 | 2 | |
Note:AXLH40..L Production:2022-11 – 2026-05 | |||
| 86160-02C10 | SPEAKER ASSY, REAR NO.3 | 2 | |
Note:AXLH4#..E,L,N,V,W,X Production:2022-11 – 2024-09 | |||
| 86161-08070 | BRACKET, SPEAKER MOUNTING, NO.1 | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:LH | |||
| 86161-08120 | BRACKET, SPEAKER MOUNTING, NO.1 | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:RH | |||
| — | Part does not apply to this vehicle configuration. | 86160J | — |
| — | Part does not apply to this vehicle configuration. | 86160Y | — |
| 90159-C0022 | standard | — | |
| 90159-C0006 | standard | — | |
| 90119-C0510 | standard | — | |
| 93568-54512 | standard | — | |
| 90189-06245 | standard | — | |
| 90189-C0033 | standard | — | |

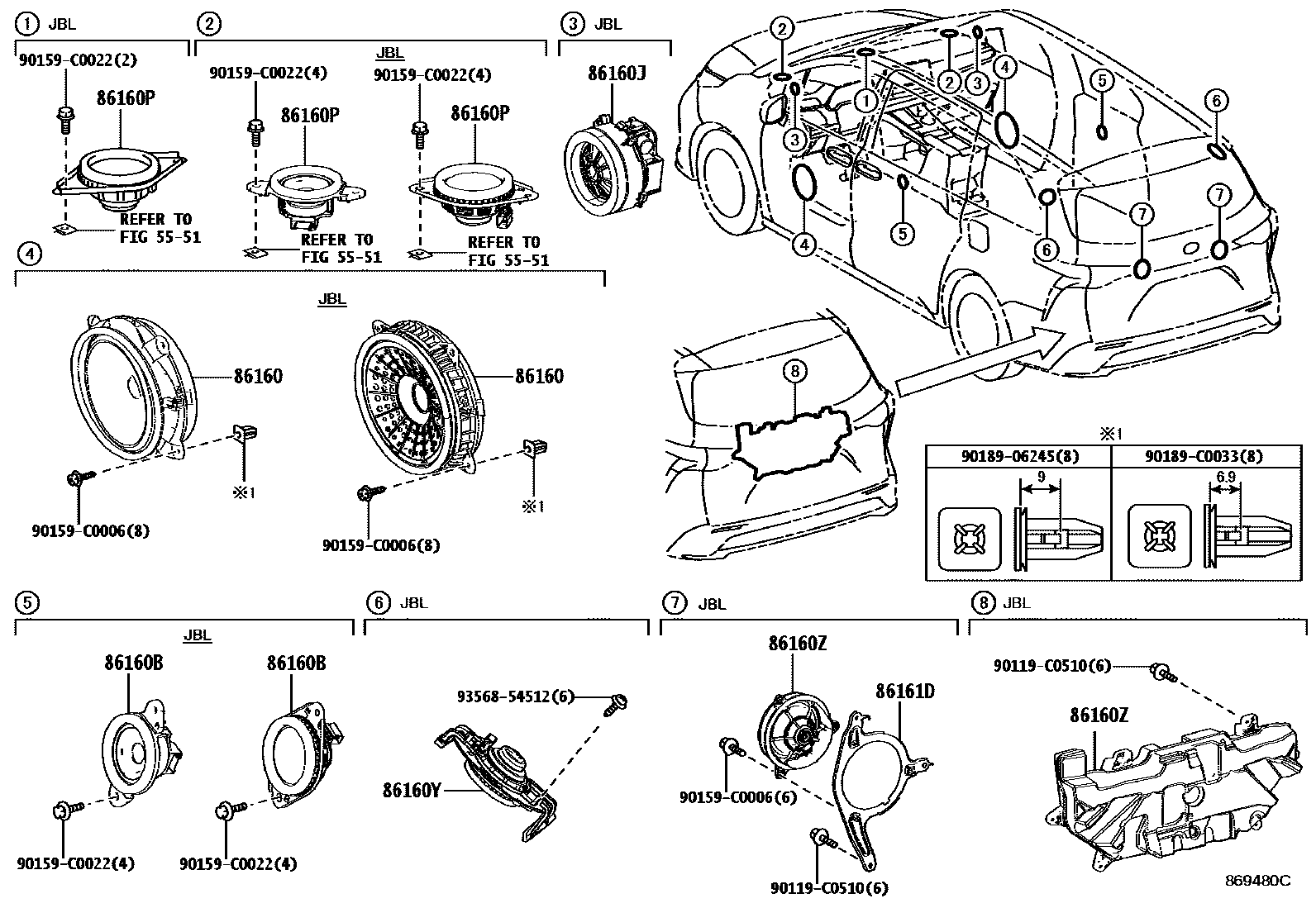

Diagram
12 parts
