Open RegionYearModelModelCode Details
General 2025 COROLLA NRE210L-GEXNZC
Catalog: TOYOTA202608 Engine: 1200CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Vehicle Grade: ENTRY TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 040 Trim Code: FD20 Production: 201908-999999 Model Short: NRE210L-GEXNZC Region: OTHER Native Region: GR

Toyota Corolla 2025 — Engine Oil Pump

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
15100-0Y010 PUMP ASSY, OIL 1
Note:9NRFTS..NRE210..ENTRY,MID Production:2019-08 – … Spec:(L),*662,*252 Spec Note:(Local made),*662(ENGINE NO.=J000001-M999999 OR 2H*****-2M*****),*252(ENGINE NO.=AXXXXXX-CXXXXXX)
15163-0Y010 GEAR, OIL PUMP DRIVE SHAFT 1
Note:9NRFTS..NRE210..ENTRY,MID Production:2019-08 – … Spec:*662,*252 Spec Note:*662(ENGINE NO.=J000001-M999999 OR 2H*****-2M*****),*252(ENGINE NO.=AXXXXXX-CXXXXXX)
91551-80845 standard —
90105-C0089 standard —
90178-C0037 standard —
Replacements:90179-09004 (fitment: unknown)
90179-09004 standard —

Diagram

6 parts

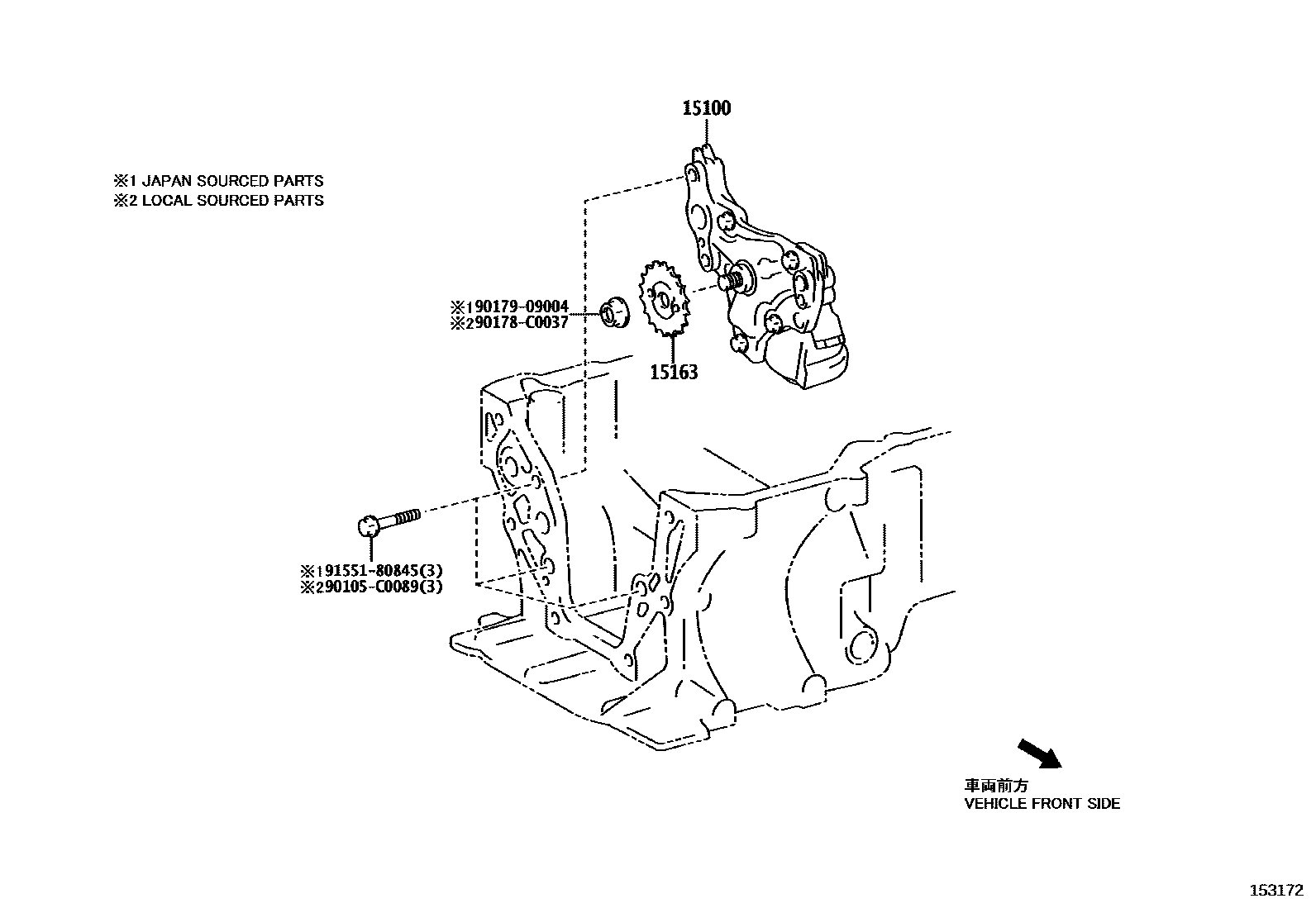

Toyota Corolla 2025 — Engine Oil Pump
