Open RegionYearModelModelCode Details
General 2022 COROLLA MZEA11L-GEXNBC
Catalog: TOYOTA202608 Engine: 1500CC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Vehicle Grade: ENTRY TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 040 Trim Code: FA20 Production: 202101-999999 Model Short: MZEA11L-GEXNBC Region: OTHER Native Region: GR

Toyota Corolla 2022 — Starter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28100-F3010 STARTER ASSY 1
Note:M15..MZEA11 Production:2021-01 – 2023-04 Spec:12V 1.2KW
28160-0T330 ARMATURE ASSY, STARTER 1
Note:M15..MZEA11 Production:2021-01 – 2023-04
28021-F3010 CLUTCH SUB-ASSY, STARTER CENTER BEARING 1
Note:M15..MZEA11 Production:2021-01 – 2023-04
28226-F3010 STARTER KIT, REPAIR SERVICE 1
Note:M15..MZEA11 Production:2021-01 – 2023-04
28140-0T330 HOLDER ASSY, STARTER BRUSH 1
Note:M15..MZEA11 Production:2021-01 – 2023-04
90182-C0009 standard —
90178-C0034 standard —
90105-10601 standard —
90105-C0350 standard —

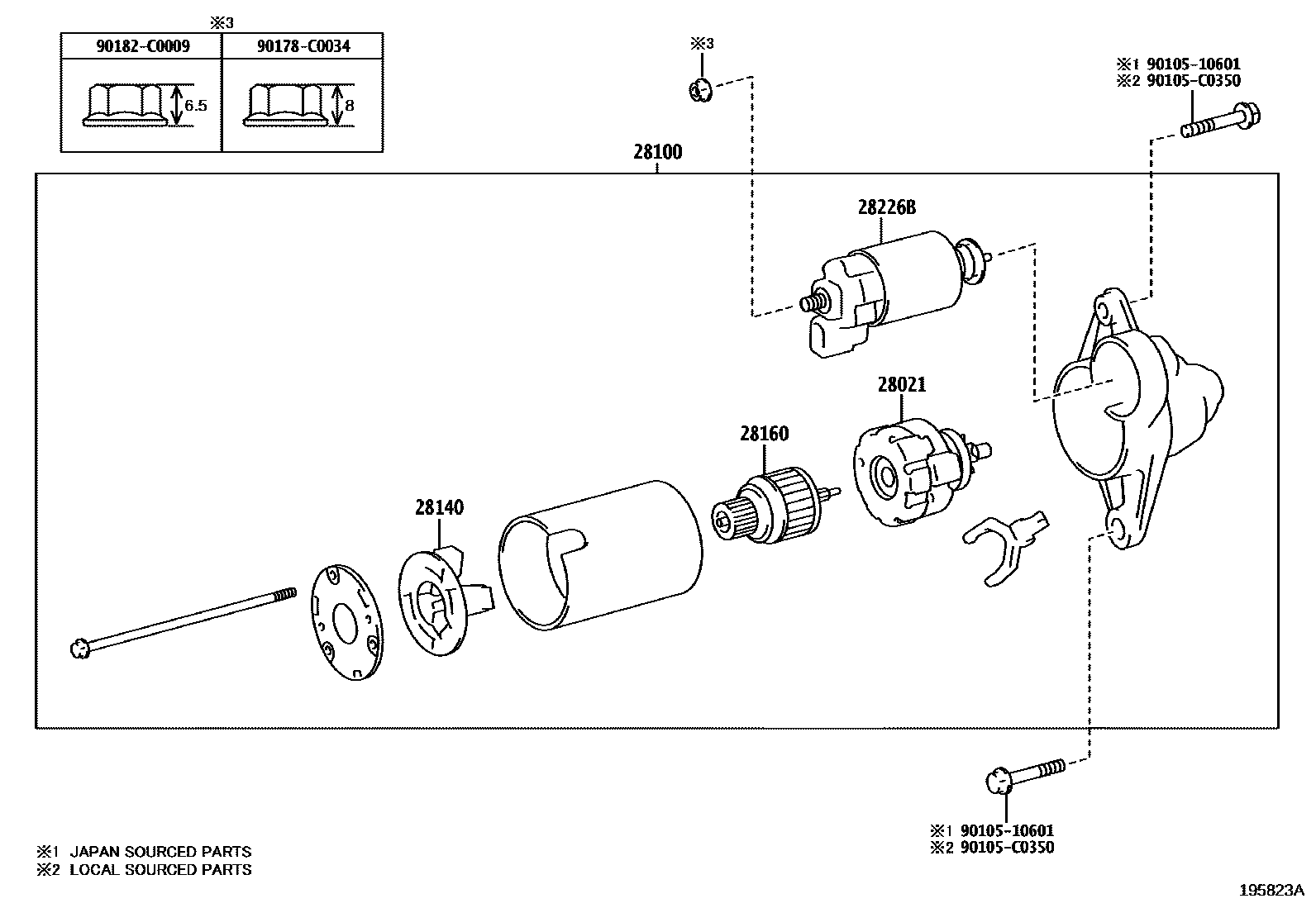

Diagram

9 parts
Toyota Corolla 2022 — Starter
