Open RegionYearModelModelCode Details
General 2015 RAV4 ASA42L-ANTXK
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 040 Trim Code: FB20 Production: 201212-201510 Model Short: ASA42L-ANTXK Region: OTHER Native Region: GR

Toyota RAV4 2015 — Standard Tool

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
09150-42010 WRENCH, HUB NUT BOX 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
99915-10700 DRIVER, SCREW 1
Note:ASA4#,ZSA4#..LHD Production:2012-12 – 2015-10
51961-42040 HOOK ASSY, FRONT 2
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
99913-11500 PLIERS 1
Note:ASA4#,ZSA4#..LHD Production:2012-12 – 2015-10
09120-10040 BAG, TOOL 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
09113-42030 HANDLE, JACK 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
99914-10810 SPANNER 1
Note:ASA4#,ZSA4#..LHD Production:2012-12 – 2015-10 Spec:8 X 10
99914-11214 SPANNER 1
Note:ASA4#,ZSA4#..LHD Production:2012-12 – 2015-10 Spec:12 X 14
09111-0W140 JACK ASSY 1
Note:ASA4#,ZSA4#..LHD Production:2012-12 – 2015-10 Replacements:09111-0R030 (fitment: unknown)
— Part does not apply to this vehicle configuration. 42606B —

Diagram

9 parts

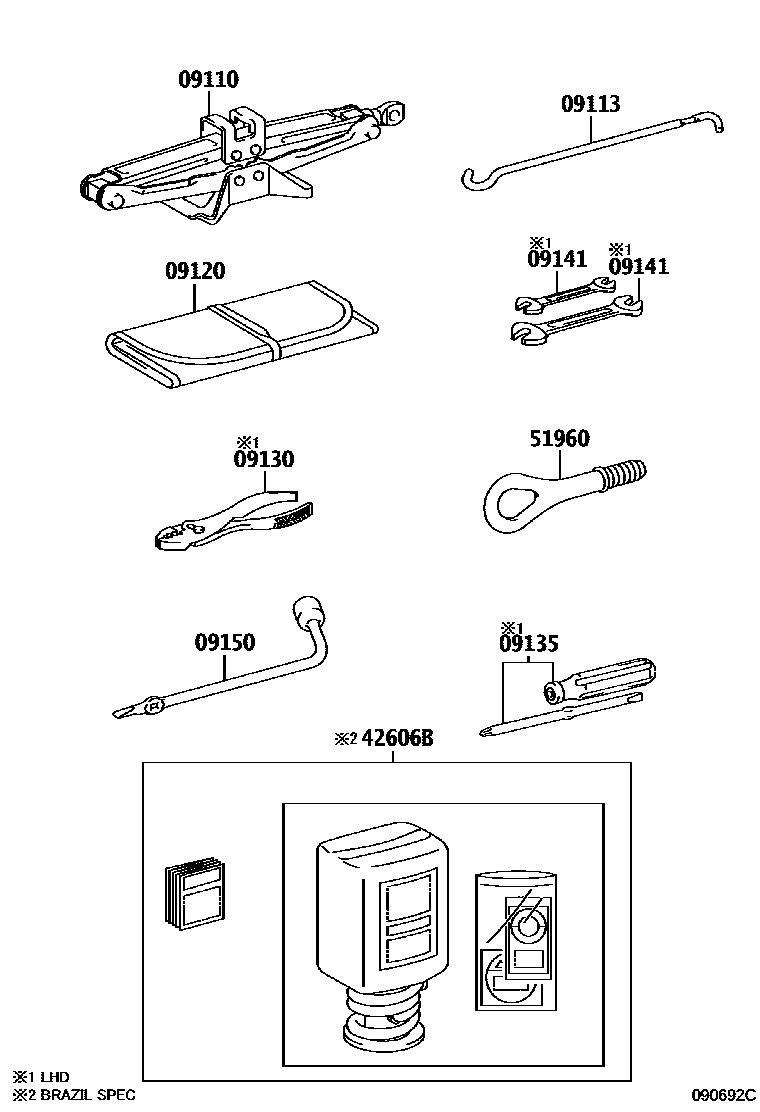

Toyota RAV4 2015 — Standard Tool
