Toyota RAV4 2015 — Alternator
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90105-10562 | BOLT(FOR ALTERNATOR) | 1 | |
Note:2ARFE..ASA4# Production:2012-12 – 2015-10 Spec:NO.1 | |||
| 91552-81045 | BOLT(FOR ALTERNATOR) | 1 | |
Note:2ARFE..ASA4# Production:2012-12 – 2015-10 Spec:NO.2 | |||
| 27060-36080 | ALTERNATOR ASSY | 1 | |
Note:2ARFE..ASA4# Production:2012-12 – 2015-10 Spec:12V 100A | |||
| 27039-47330 | COVER, ALTERNATOR REAR END | 1 | |
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 27310-36160 | FRAME ASSY, DRIVE END, ALTERNATOR | 1 | |
Note:2ARFE..ASA4# Production:2012-12 – 2015-10 | |||
| 90099-10223 | BEARING(FOR ALTERNATOR DRIVE END FRAME) | 1 | |
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 27312-72100 | PLATE, RETAINER | 1 | |
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 27330-47330 | ROTOR ASSY, ALTERNATOR | 1 | |
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 27360-36161 | COIL ASSY, ALTERNATOR | 1 | |
Note:2ARFE..ASA4# Production:2013-08 – 2015-10 | |||
| 27370-31220 | HOLDER ASSY, ALTERNATOR BRUSH | 1 | |
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| — | Part does not apply to this vehicle configuration. | 27384 | — |
| 27387-20130 | INSULATOR, TERMINAL | 1 | |
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10 | |||
| 27415-0W021 | PULLEY, ALTERNATOR W/CLUTCH | 1 | |
Note:2ARFE..ASA4# Production:2013-08 – 2015-10 | |||
| 27416-0W050 | CAP, ALTERNATOR PULLEY | 1 | |
Note:2ARFE..ASA4# Production:2012-12 – 2015-10 | |||
| 27444-21190 | PACKING, ALTERNATOR BEARING COVER | 1 | |
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2013-08 – 2015-10 | |||
| 90099-04626 | standard | — | |
| 90099-00197 | standard | — | |
| 94151-80600 | standard | — | |
| 90099-04627 | standard | — | |
| 90099-00268 | standard | — | |

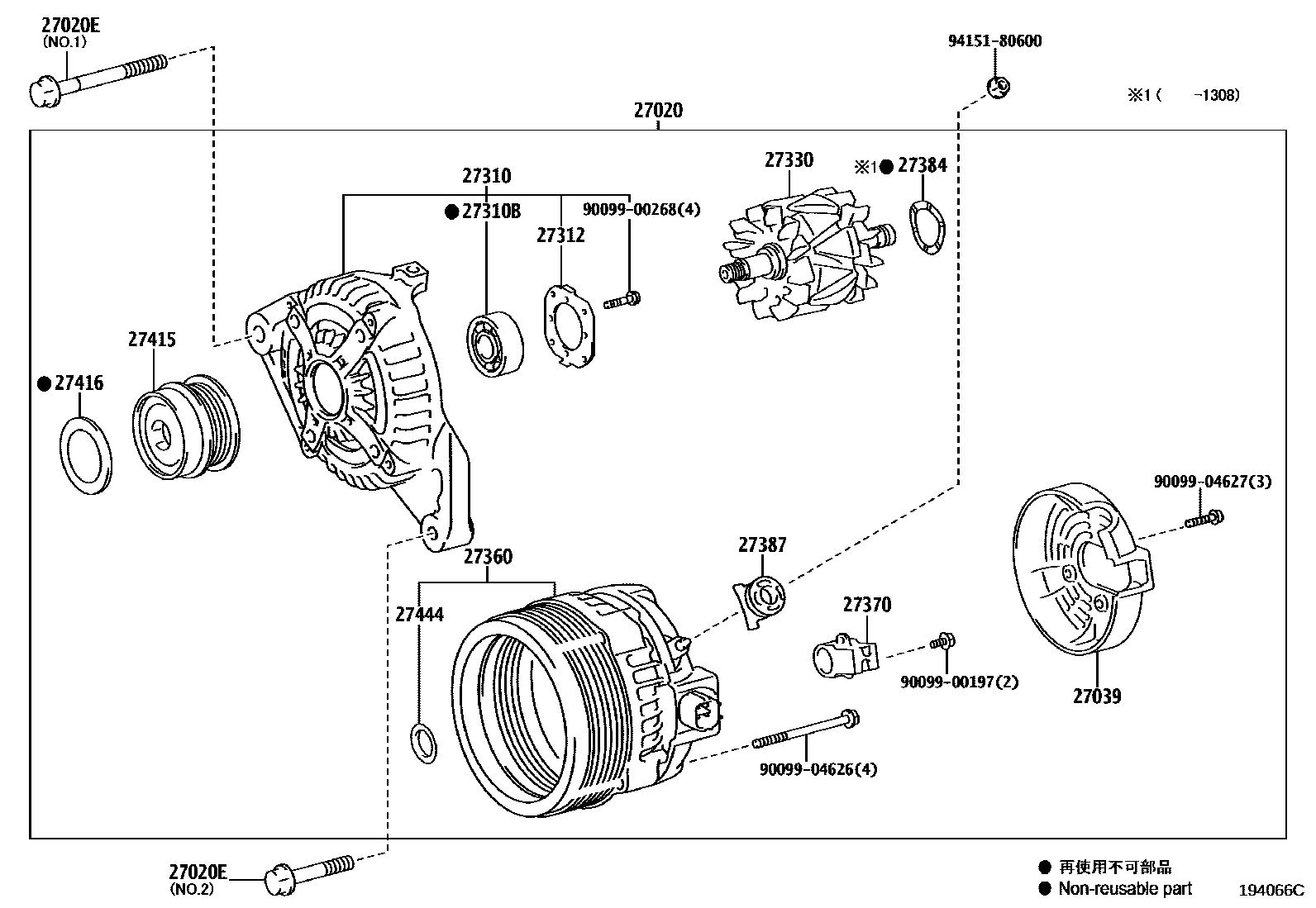

Diagram
19 parts
