Open RegionYearModelModelCode Details
General 2015 RAV4 ASA42L-ANTXK
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 040 Trim Code: FB20 Production: 201212-201510 Model Short: ASA42L-ANTXK Region: OTHER Native Region: GR

Toyota RAV4 2015 — Rear Wiper

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85130-42070 MOTOR ASSY, REAR WIPER 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
90179-06158 NUT (FOR REAR WIPER ARM SETTING) 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
85143-42040 WASHER, REAR WIPER LINK PIVOT, NO.1 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
85241-42090 ARM ASSY, REAR WIPER 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
85242-42040 BLADE ASSY, REAR WIPER 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
85214-42060 RUBBER, REAR WIPER 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
85292-42010 COVER, REAR WIPER ARM 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10

Diagram

7 parts

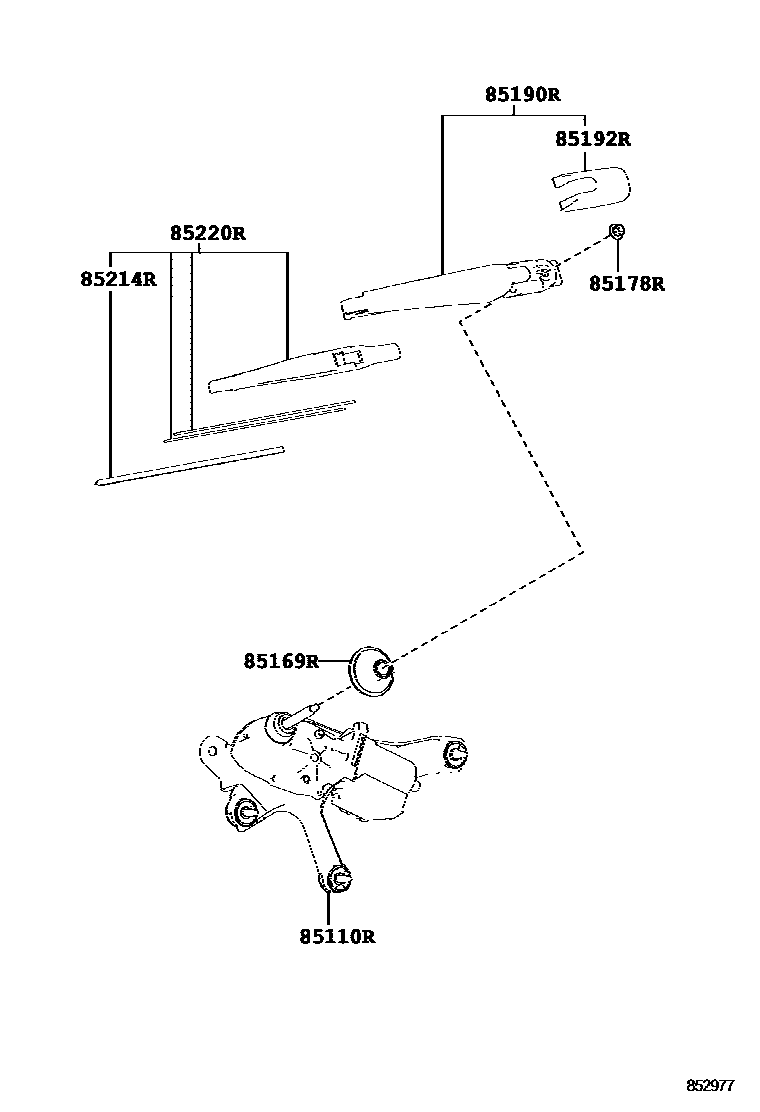

Toyota RAV4 2015 — Rear Wiper
